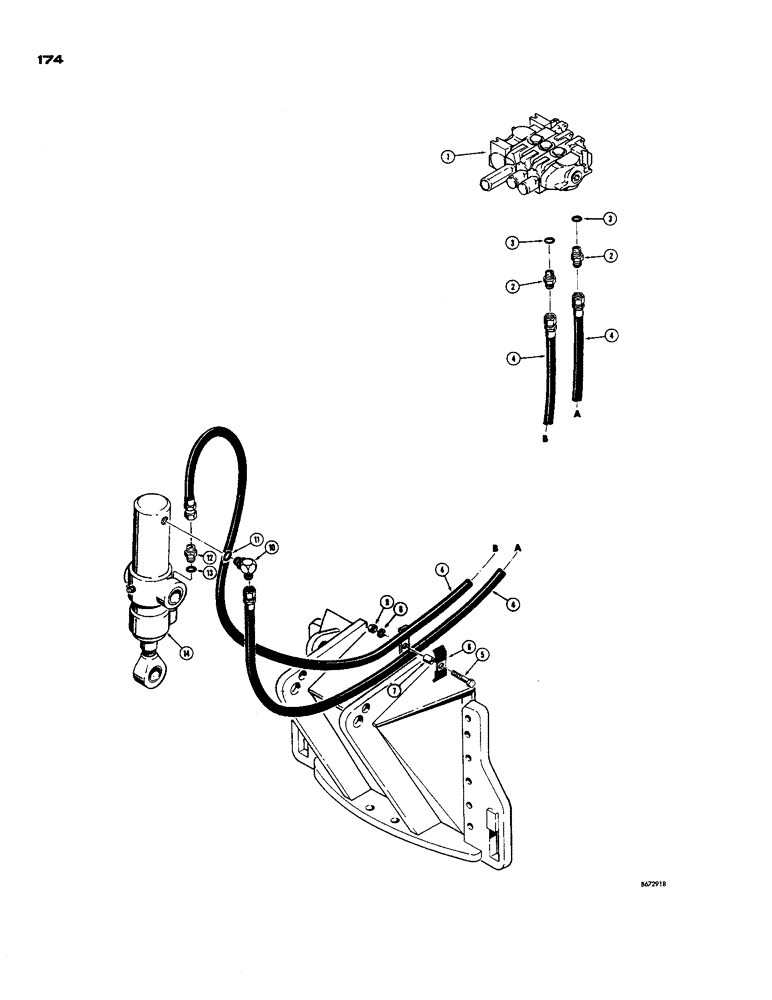

Запчасти Case 850 (174) - RIPPER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See Figure 178 thru 183A for proper valve)

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

Tube, straight

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

4

D39883

HOSE

Valve to ripper (53" long)

2шт.

5

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

D33316

CLAMP

Hose

1шт.

7

D33554

BUSHING

SPACER - hose clamp

1шт.

8

195-21

WASHER,5/16"

1шт.

9

131-4

LOCK NUT,5/16"-18, GB

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable (Closed end)

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

12

D39885

BEARING

CONNECTOR - adjustable, restrictor (Rod end)

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

14

REF

INSTRUCTION

CYLINDER - ripper (See Figure 198 for cylinders)

1шт.
