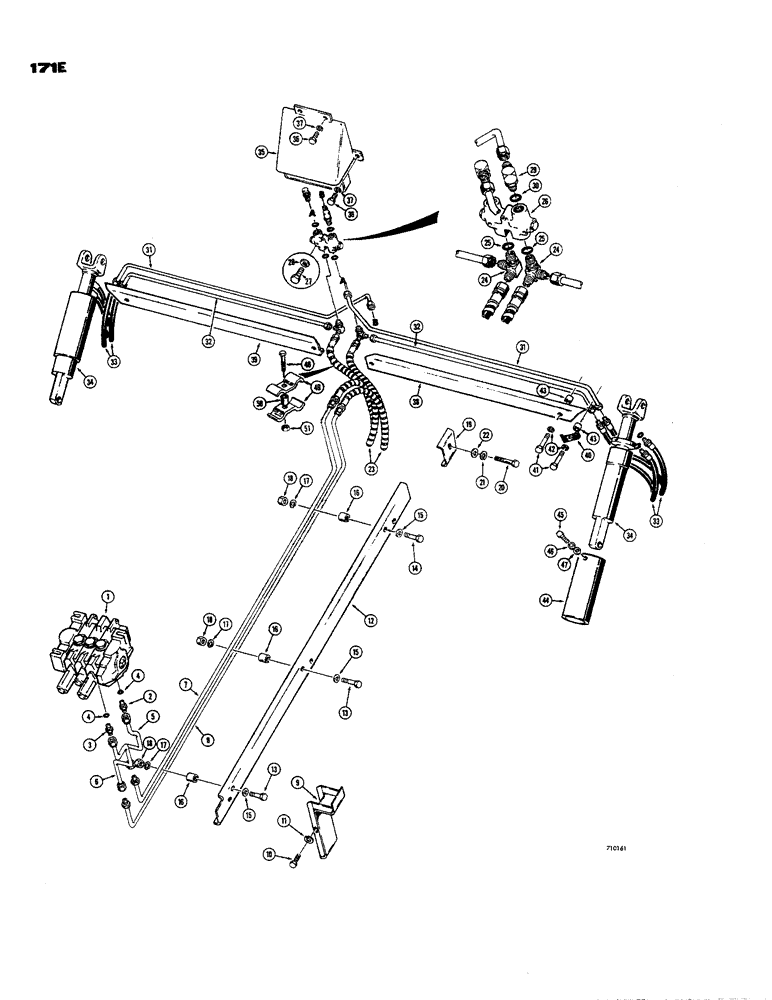

Запчасти Case 850 (171E) - POWER ANGLE-TILT DOZER HYDRAULICS, (TILT CIRCUIT) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See Figure 182 and 183A for proper valve)

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male

1шт.

3

D45321

ADAPTER

Special

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal (D45321 and 218-5078 adapter)

1шт.

5

D45918

TUBE

At valve, short

1шт.

6

D45920

TUBE

At valve, short

1шт.

7

D45425

TUBE

Upper, long

1шт.

8

D45423

TUBE

SPARE PART Lower, long

1шт.

9

D45550

GUARD ASSY.

Upper, short

1шт.

10

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

D45132

GUARD ASSY.

Lower, long

1шт.

13

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

14

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

15

195-33

WASHER,1/2"

3шт.

16

D44228

BUSHING

SPACER - guard

3шт.

17

92-8

LOCK WASHER,1/2"

3шт.

18

25-108

NUT,1/2"-13, G5

Hex

3шт.

19

D45433

SPARE PART At radiator wrapper

1шт.

20

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

21

92-82

WASHER - med. sect. lock (1/2")

1шт.

22

195-33

WASHER,1/2"

1шт.

23

D45114

HOSE

Tube to relief valve (45-1/2" long)

2шт.

24

D47785

FITTING

ELBOW - special

2шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal

1шт.

26

D47256

VALVE

Relief (Parts list Figure 203A)

1шт.

27

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

3шт.

28

92-5

LOCK WASHER,5/16"

3шт.

29

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Male

2шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Seal

1шт.

31

D46993

TUBE

Valve to cylinder, upper

2шт.

32

D46995

TUBE

Valve to cylinder, lower

2шт.

33

D28081

HOSE

At cylinders (22" long)

4шт.

34

REF

INSTRUCTION

CYLINDER - tilt (See Figure 197A for cylinders)

2шт.

35

D47793

NO LONGER SERVICED

GUARD - valve, diversion

1шт.

36

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

4шт.

37

92-8

LOCK WASHER,1/2"

4шт.

38

D47789

COVER

GUARD - tube, RH

1шт.

39

D47790

COVER

GUARD - tube, LH

1шт.

40

31665

COLLAR CLAMP

Tube

2шт.

41

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

42

92-8

LOCK WASHER,1/2"

6шт.

43

D44228

BUSHING

SPACER - tube

6шт.

44

D42529

GUARD

Cylinder rod

2шт.

45

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

46

92-6

LOCK WASHER,3/8"

6шт.

47

195-25

WASHER,3/8"

6шт.

48

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

49

R15257

CLAMP

Hose

2шт.

50

D34242

SPACER

Clamp

1шт.

51

131-6

LOCK NUT,3/8"-16, GC

Hex

1шт.
