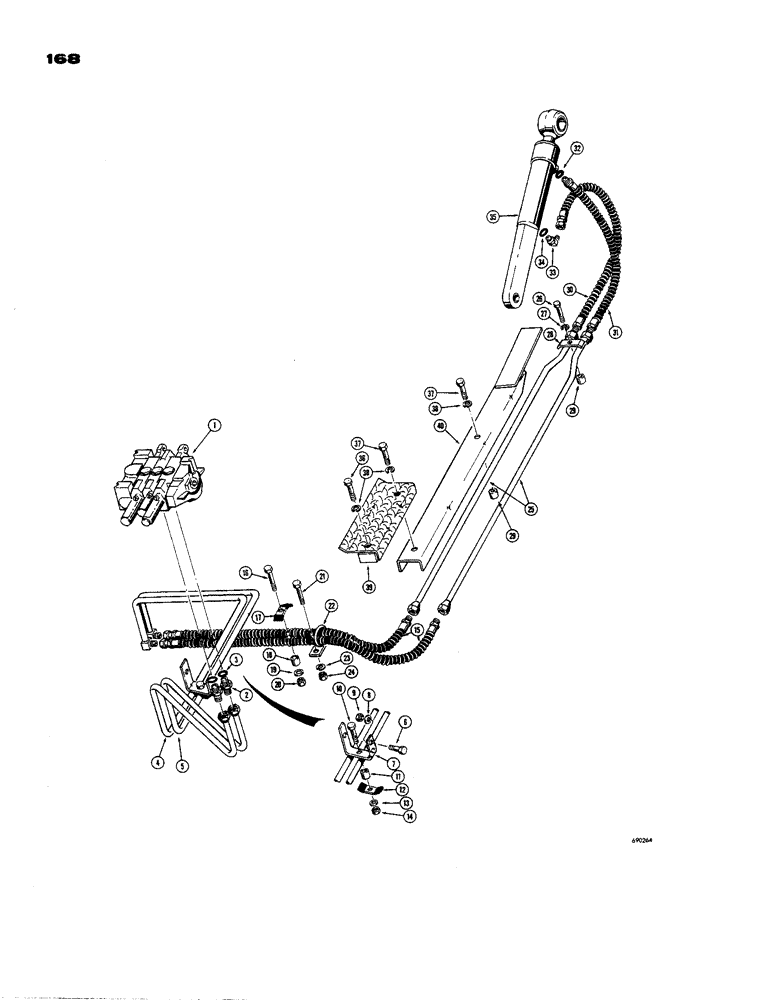

Запчасти Case 850 (168) - POWER TILT HYDRAULICS (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
D39779
VALVE
Dozer control (Parts list Figure 182 and 183A)
1шт.
2
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Tube
2шт.
3
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
Seal
1шт.
4
D39838
SPARE PART Valve to tilt cylinder, closed end
1шт.
5
D39840
TUBE - valve to tilt cylinder, rod end
1шт.
6
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
7
D39965
SPARE PART Tube mounting
1шт.
8
195-25
WASHER,3/8"
2шт.
9
131-6
LOCK NUT,3/8"-16, GC
Hex
2шт.
10
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
11
D36040
BUSHING
SPACER - tube clamp
1шт.
12
D40236
CLAMP
Tube
1шт.
13
195-25
WASHER,3/8"
1шт.
14
131-6
LOCK NUT,3/8"-16, GC
Hex
1шт.
15
D39842
SPARE PART Valve to tilt cylinder (55-1/2" long)
2шт.
16
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
1шт.
17
D33316
CLAMP
Hose
1шт.
18
D36524
BUSHING
SPACER - hose clamp
1шт.
19
195-21
WASHER,5/16"
1шт.
20
131-4
LOCK NUT,5/16"-18, GB
1шт.
21
13-1016
BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd
1шт.
22
D40386
SPARE PART Hose
1шт.
24
25-1010
NUT,5/8"-11, G5
1шт.
25
D32815
TUBE ASSY.
Valve to tilt cylinder
2шт.
26
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
1шт.
27
92-8
LOCK WASHER,1/2"
1шт.
28
36801
GEAR
SPARE PART CLAMP - tube
1шт.
29
D44696
BUSHING
SPACER - hose clamp
2шт.
30
D32809
HOSE ASSY.
At tilt cylinder, closed end (22-1/2" long)
1шт.
31
D32811
HOSE
At tilt cylinder, rod end (15" long)
1шт.
32
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL
1шт.
33
R20839
FITTING
ELBOW - adjustable, 90 deg. (Restrictor)
1шт.
34
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
SEAL
1шт.
35
REF
INSTRUCTION
CYLINDER - tilt (See Figure 196 for cylinders)
1шт.
36
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
1шт.
37
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
2шт.
38
92-8
LOCK WASHER,1/2"
3шт.
39
D32917
SPARE PART
1шт.
40
D32916
SCREW
GUARD - tube
1шт.
Выбрано товаров: 40
