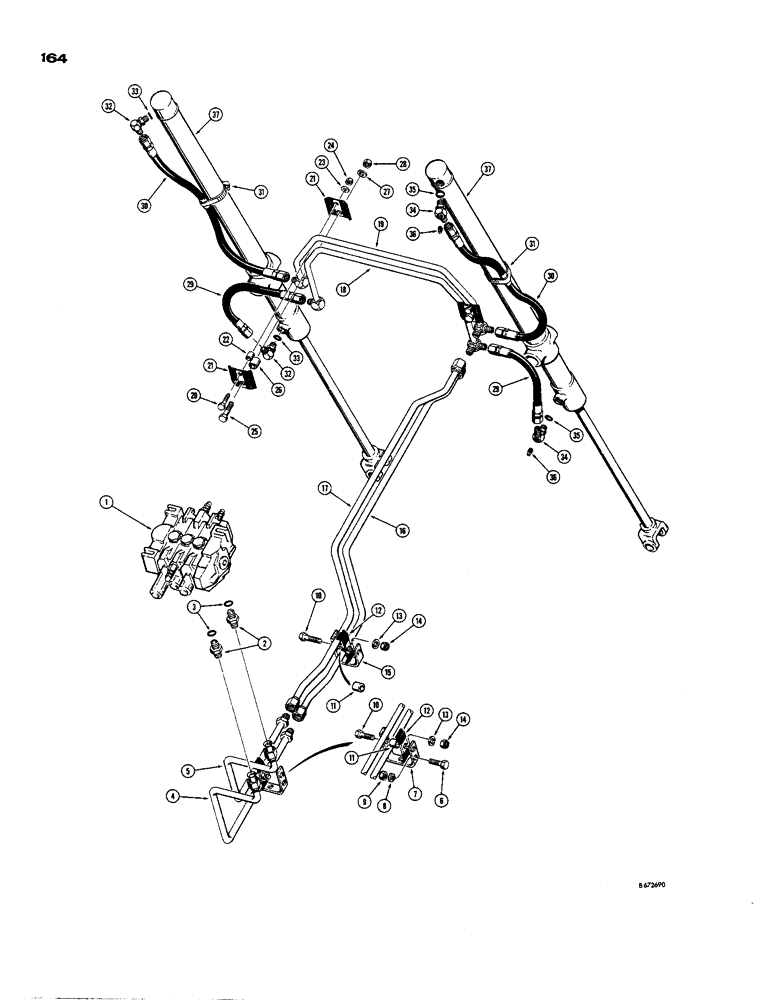

Запчасти Case 850 (164) - DOZER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - dozer control (See Figure 182 and 183A for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Tube

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

4

D39609

BEARING ASSY

TUBE - valve to lift cylinder, rod end

1шт.

5

D39611

TUBE

Valve to lift cylinder, closed end

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

7

D39965

SPARE PART Tube mounting

1шт.

8

195-25

WASHER,3/8"

2шт.

9

131-6

LOCK NUT,3/8"-16, GC

Hex

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

11

D36040

BUSHING

SPACER - tube clamp

2шт.

12

D40236

CLAMP

Tube

2шт.

13

195-25

WASHER,3/8"

2шт.

14

131-6

LOCK NUT,3/8"-16, GC

Hex

2шт.

15

D41389

BRACKET

Tube mounting

1шт.

16

D39615

TUBE

Valve to lift cylinder, rod end

1шт.

17

D39613

TUBE

Valve to lift cylinder, closed end

1шт.

18

D39605

SPARE PART Valve to LH cylinder, rod end (Used before tractor S/N 7073116)

1шт.

18

D45525

SPARE PART Valve to LH lift cylinder, rod end (Used on tractor S/N 7073116 and after)

1шт.

19

D39607

SPARE PART Valve to LH lift cylinder, closed end (Used before tractor S/N 7076116)

1шт.

19

D50752

TUBE

Valve to LH lift cylinder, closed end (Used on tractor S/N 7073116 and after)

1шт.

20

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

21

R21853

CLAMP

Tube

4шт.

22

D33552

BUSHING

SPACER - tube clamp, upper

2шт.

23

195-21

WASHER,5/16"

2шт.

24

131-4

LOCK NUT,5/16"-18, GB

2шт.

25

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

26

D35228

SPACER

Tube clamp, lower

2шт.

27

195-33

WASHER,1/2"

2шт.

28

131-10

NUT,1/2"-13, GB

2шт.

29

D28524

HOSE

Lift cylinder, rod end (21" long) Power Angling Dozer and Power Angle-Tilt Dozer

2шт.

29

D28117

HOSE

Lift cylinder, rod end (23-1/2" long) Power Tilt Dozer only

2шт.

30

D39601

HOSE

Lift cylinder, closed end (30" long) Power Angling Dozer and Power Angle-Tilt Dozer

2шт.

30

D39816

BEARING

HOSE - lift cylinder, closed end (27-1/2" long) Power Tilt Dozer only

2шт.

31

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

32

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable (LH lift cylinder)

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

34

R19576

FITTING

ELBOW - adjustable, 90 deg. (RH lift cylinder)

2шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

36

221-11

PLUG,Sq Hd, 1/8"-27

Pipe (1/8" NPT)

2шт.

37

REF

INSTRUCTION

CYLINDER - lift (See Figure 194 for cylinders)

2шт.
