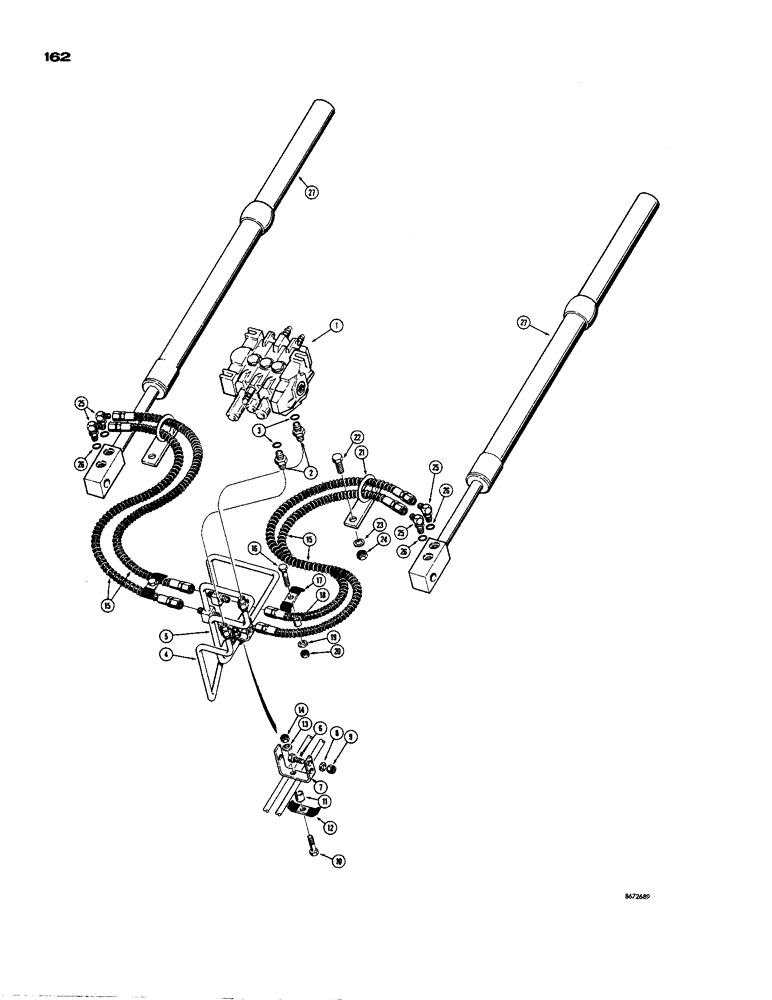

Запчасти Case 850 (162) - POWER ANGLING HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - dozer control (See Figure 204 for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Tube

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

4

D39597

TUBE - valve to RH angling cylinder front port, LH angling cylinder rear port

1шт.

5

D39595

TUBE - valve to RH angling cylinder rear port LH angling cylinder front port

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

7

D39965

SPARE PART Tube mounting

1шт.

8

195-25

WASHER,3/8"

2шт.

9

131-6

LOCK NUT,3/8"-16, GC

Hex

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

11

D36040

BUSHING

SPACER - tube clamp

1шт.

12

D40236

CLAMP

Tube

1шт.

13

195-25

WASHER,3/8"

1шт.

14

131-6

LOCK NUT,3/8"-16, GC

Hex

1шт.

15

D39594

SPARE PART Valve to angling cylinder (46-1/2" long)

4шт.

16

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

17

D33316

CLAMP

Hose

2шт.

18

D36524

BUSHING

SPACER - hose clamp

2шт.

19

195-21

WASHER,5/16"

2шт.

20

131-4

LOCK NUT,5/16"-18, GB

2шт.

21

D40386

SPARE PART Hose

2шт.

22

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

23

92-10

LOCK WASHER,5/8"

2шт.

24

25-1010

NUT,5/8"-11, G5

2шт.

25

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable

4шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL

1шт.

27

REF

INSTRUCTION

CYLINDER - angling (See Figure 192 for cylinders)

2шт.
