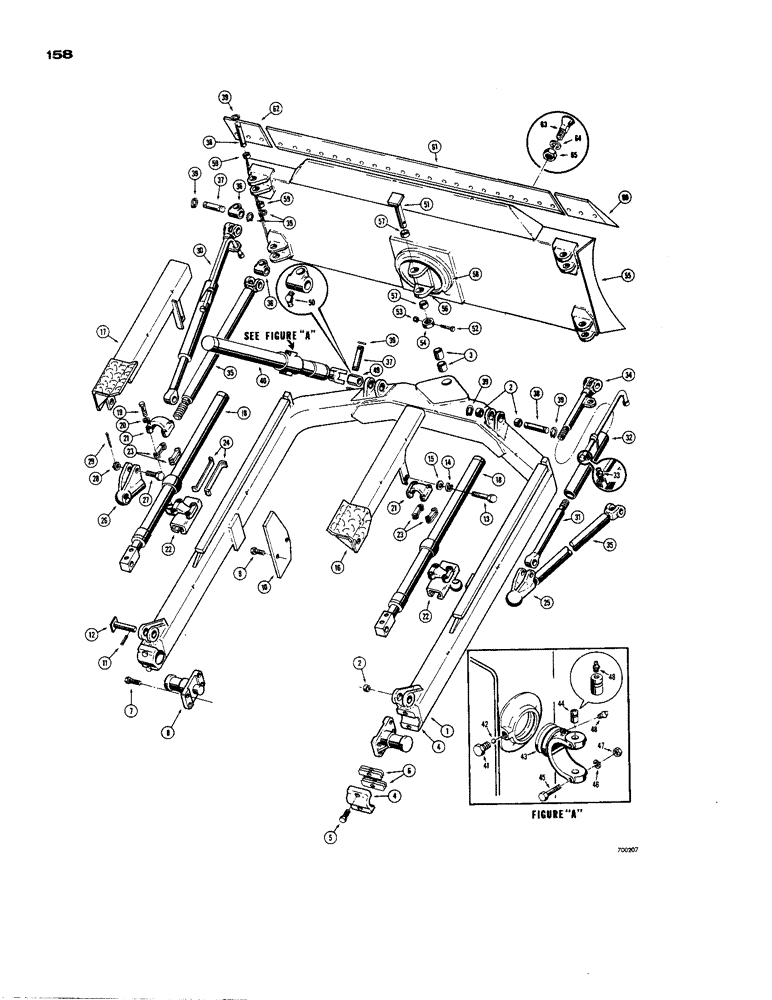

Запчасти Case 850 (158) - POWER ANGLING DOZER (07) - HYDRAULIC SYSTEM

1

D41173

SPARE PART Power angling dozer

1шт.

2

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

"C" frame, lift and angling cylinder lugs

8шт.

3

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

"C" frame, moldboard pivot

2шт.

D50184

CAP

KIT - pivot bracket

2шт.

4

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - push trunnion

1шт.

5

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

6

D33001

SHIM

Push trunnion, 1/32" thick

1шт.

7

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

8

D32977

SPARE PART Push

2шт.

9

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

10

D39581

PLATE - rub

2шт.

11

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

2шт.

12

D41266

PIN

"C" frame to angling cylinder and guard

2шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

195-33

WASHER,1/2"

4шт.

16

D41175

SPARE PART Angling cylinder, RH

1шт.

17

D41174

SPARE PART Angling cylinder, LH

1шт.

18

REF

INSTRUCTION

CYLINDER - angling (See Figure 192 for cylinders)

2шт.

NLS

NO LONGER SERVICED

BRACKET ASSEMBLY - slide

2шт.

19

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

20

92-8

LOCK WASHER,1/2"

4шт.

21

NSS

NOT SOLD SEPARAT

CAP - slide bracket

1шт.

22

NSS

NOT SOLD SEPARAT

BRACKET - slide

1шт.

23

D32803

SPARE PART Slide bracket

1шт.

24

D32806

STRIP

WEAR - slide bracket

4шт.

25

D33030

BRACKET

Strut, RH

1шт.

26

D33031

BRACKET - strut, LH

1шт.

27

D32802

BOLT

Special (Upper strut mounting)

2шт.

28

25-2316

SLOTTED NUT

Hex., castle (1"- 4 NF)

2шт.

29

132-97

COTTER PIN,3/16" x 1 3/4"

2шт.

30

D32800

STRUT

Upper

2шт.

31

D32793

SCREW - strut, eye

1шт.

32

R16408

TURNBUCKLE

1шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

NPT

1шт.

34

D32799

SCREW - strut, yoke

1шт.

35

D32774

STRUT

Lower

1шт.

36

D35443

UNIVERSAL JOINT

Moldboard mounting

4шт.

37

D32932

PIN,31.75mm OD x 112.78mm L

Universal joint and lift cylinder mounting

6шт.

38

D32933

PIVOT PIN,31.75mm OD x 127mm L

Universal joint and lift cylinder mounting

6шт.

39

D26918

SNAP RING,#125, Ext

24шт.

40

REF

INSTRUCTION

CYINDER - lift (See Figure 194 for cylinders)

2шт.

41

D28481

PLUG

Ball retaining

2шт.

42

211-17

BALL,3/4" Dia

Trunnion retaining (.) 3/4" Dia

38шт.

43

D24497

TRUNNION

Lift cylinder mounting

2шт.

44

D28482

PIN

Lift cylinder mounting

4шт.

45

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

46

92-6

LOCK WASHER,3/8"

4шт.

47

25-106

NUT,3/8"-16, G5

Hex

4шт.

48

219-1

LUBE NIPPLE,1/8" - 27 NPTF

NPT

6шт.

49

D32926

UNIVERSAL JOINT

Lift, Serial Range: cylinder-"C"frame

2шт.

50

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

67-1/2 deg

2шт.

51

D39577

PIN

Moldboard mounting, swivel

1шт.

52

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

53

131-352

LOCK NUT,3/8"-16, GA

1шт.

54

D39580

NO LONGER SERVICED

COLLAR - pin

1шт.

55

D41156

SPARE PART MOLDBOARD - Angling Dozer (110" wide)

1шт.

D43435

KIT

Swivel

1шт.

56

NSS

NOT SOLD SEPARAT

SWIVEL - pivot

1шт.

57

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

Swivel

2шт.

58

NSS

NOT SOLD SEPARAT

RING - swivel

1шт.

59

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

Blade lugs

8шт.

60

70375

SHARE

CUTTING EDGE - end, RH

1шт.

61

D32945

EDGE

CUTTING - center

1шт.

62

70376

BLADE

CUTTING EDGE - end, LH

1шт.

63

19-1032

BOLT,5/8" - 11 x 2", Gr 5

Plow

27шт.

64

92-10

LOCK WASHER,5/8"

27шт.

65

25-1010

NUT,5/8"-11, G5

27шт.
