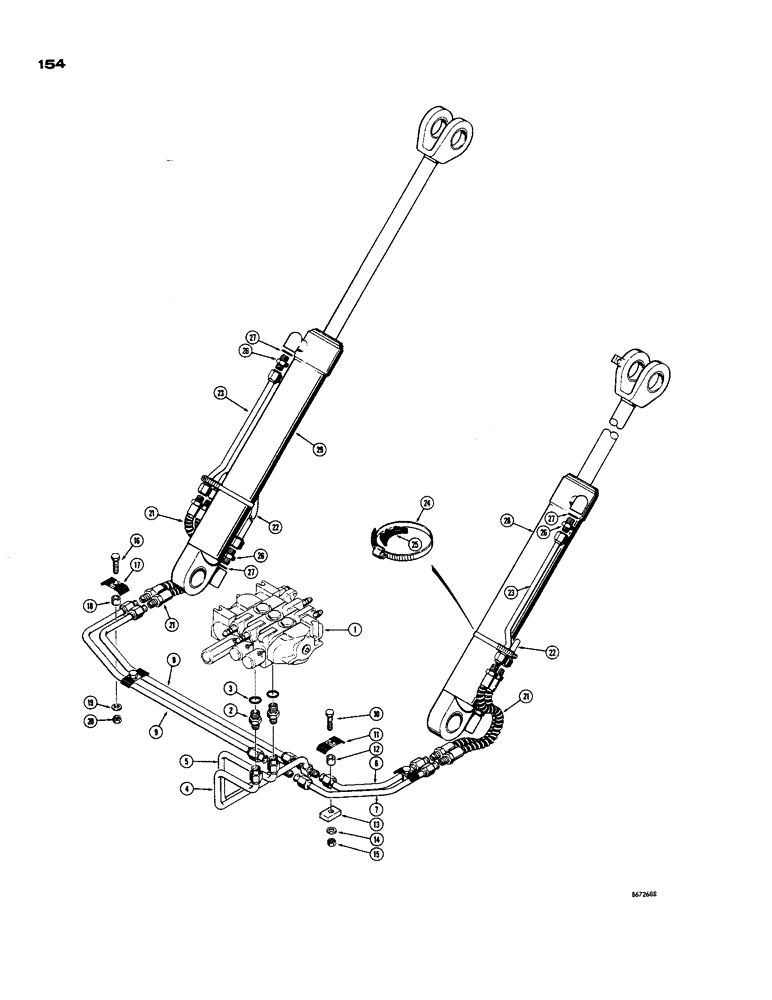

Запчасти Case 850 (154) - LOADER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figure 204 for proper valve)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Tube

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

4

D39796

PIPE

TUBE - valve to lift cylinder, closed end

1шт.

5

D39798

TUBE

Valve to lift cylinder, rod end

1шт.

6

D39788

TUBE

Intermediate, valve to RH lift cylinder (Closed end)

1шт.

7

D39790

TUBE

Intermediate, valve to RH lift cylinder (Rod end)

1шт.

8

D39792

TUBE

Intermediate, valve to LH lift cylinder (Closed end)

1шт.

9

D39794

TUBE

Intermediate, valve to LH lift cylinder (Rod end)

1шт.

10

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

11

D33316

CLAMP

Tube

2шт.

12

D36040

BUSHING

SPACER - tube clamp

2шт.

13

D39782

BUSHING

SPACER - tube clamp

2шт.

14

195-21

WASHER,5/16"

2шт.

15

131-4

LOCK NUT,5/16"-18, GB

2шт.

16

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

17

D33316

CLAMP

Tube

2шт.

18

D36040

BUSHING

SPACER - clamp

2шт.

19

195-21

WASHER,5/16"

2шт.

20

131-4

LOCK NUT,5/16"-18, GB

2шт.

21

D39783

HOSE

Valve to lift cylinders (22" long)

4шт.

22

D39786

TUBE

At lift cylinder, closed end

2шт.

23

D39784

TUBE

At lift cylinder, rod end

2шт.

24

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

Tube to cylinder

2шт.

25

D39502

SADDLE

Tube

2шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Tube, straight

4шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

28

REF

INSTRUCTION

CYLINDER - RH, loader lift (See Figure 190 for proper cylinder)

1шт.

29

REF

INSTRUCTION

CYLINDER - LH, loader lift (See Figure 190 for proper cylinder)

1шт.
