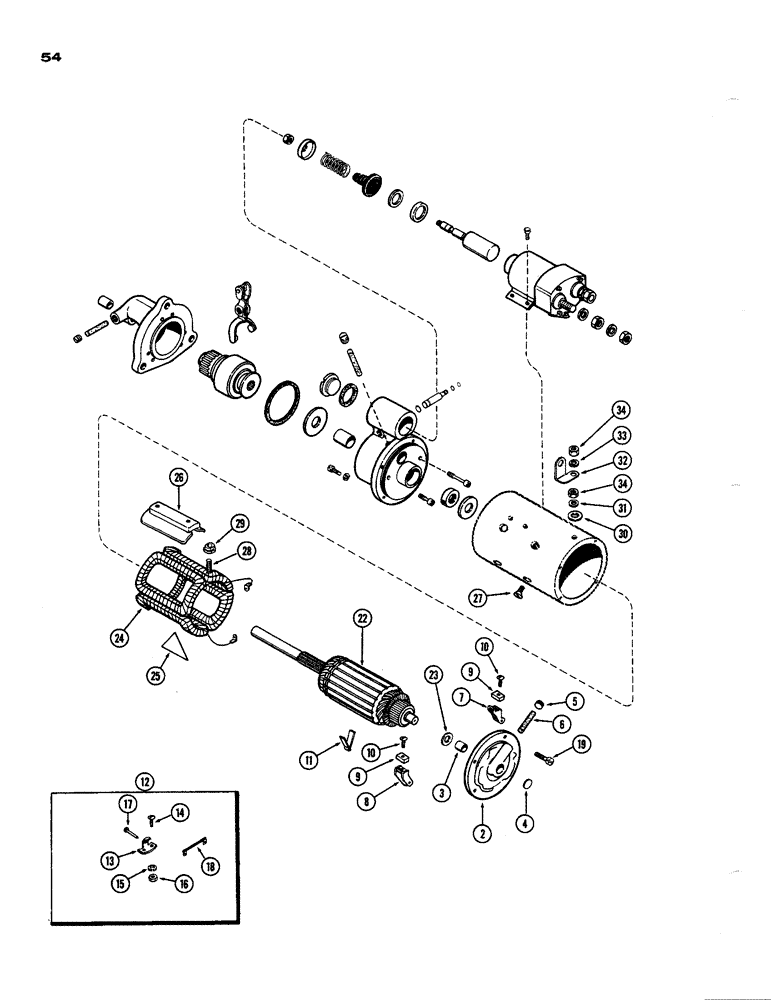

Запчасти Case 850 (054) - A15485 STARTER, (301) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

A15485

STARTING MOTOR

STARTER ASSY. - (Delco Remy #1113370) (used for repairs)

1шт.

104213A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

2

R21559

FRAME

FRAME ASSY. - commutator end

1шт.

3

R15020

BUSHING

BUSHING - comm. end

1шт.

4

R15021

PLUG

PLUG - expansion

1шт.

5

221-1041

PLUG

PLUG - oil wick hole

1шт.

6

R15023

WICK

WICK - oil

1шт.

7

R15027

HOLDER

HOLDER - brush, insulated

2шт.

8

A40217

HOLDER

HOLDER - brush, ground

2шт.

9

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH - armature

4шт.

10

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush attaching

4шт.

11

R15025

SPRING

SPRING - brush

2шт.

12

R15029

BRUSH

KIT - brush support

2шт.

13

NSS

NOT SOLD SEPARAT

SUPPORT- brush

1шт.

14

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

SCREW - support (#10-24 x 3/4" rd. hd.)

2шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

16

R15032

X

NUT - (#10-24 hex.)

2шт.

17

R15035

PIN

PIN - brush holder

1шт.

18

R15030

ELECTRICAL WIRE

WIRE LEAD - ground

1шт.

19

R21578

SCREW

BOLT - comm., Serial Range: end-frame

4шт.

22

A40909

ARMATURE

ARMATURE - starter

1шт.

23

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - spacer, commutator end

1шт.

24

R21557

COIL ASSY.

COIL ASSY. - field

1шт.

25

A41977

RUBBER INSULATOR

INSULATOR - field coil

1шт.

26

R15115

SHOE

SHOE - pole

4шт.

27

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoe

8шт.

28

R15017

STUD

STUD - terminal

1шт.

29

R15010

BUSHING

BUSHING - insulating, terminal stud

1шт.

30

A42010

WASHER

INSULATOR - terminal stud

1шт.

31

R15013

WASHER

WASHER - terminal stud

1шт.

32

D32480

SPARE PART CONNECTOR - term, stud to solenoid

1шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

34

R15014

NUT

NUT - terminal stud

2шт.
