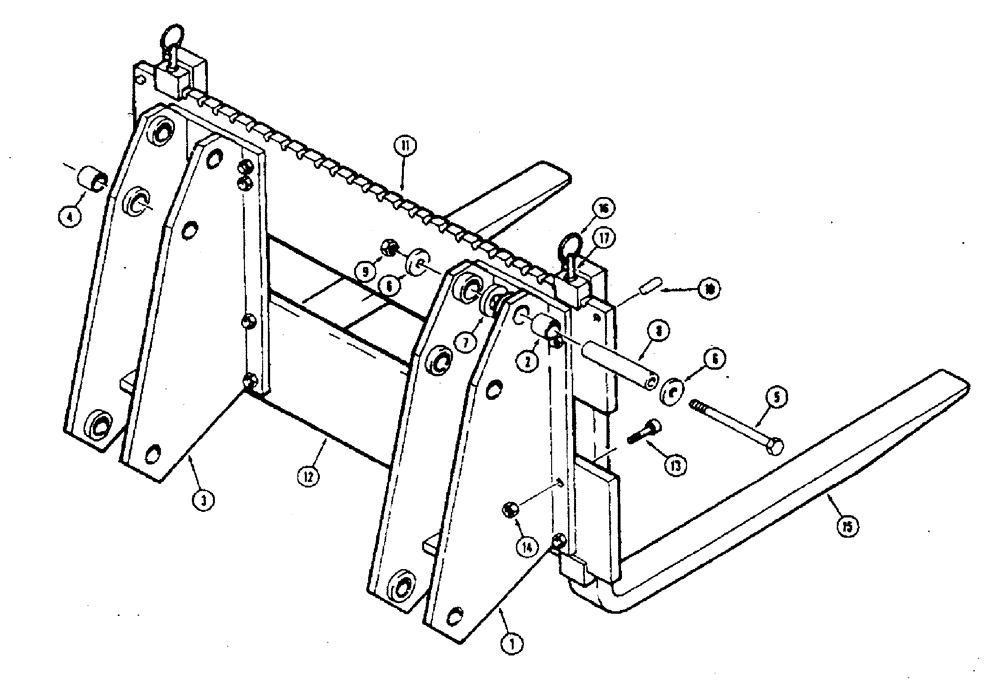

Запчасти Case 850 (210) - PALLET FORKS (05) - UPPERSTRUCTURE CHASSIS

D14182

PALLET FORKS - Loader, machinery item, Includes: Ref. 1 - 17

1шт.

1

D43502

BRACKET - pallet fork, R.H., Includes: Ref. 2

1шт.

2

D43508

BUSHING

- bracket

6шт.

3

D43501

BRACKET - pallet fork, L.H., Includes: Ref. 4

1шт.

4

D43508

BUSHING

- bracket

6шт.

5

13-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 5

4шт.

6

72915

GASKET

- special

8шт.

7

D43492

SPACER - dump link and loader arm

4шт.

8

R13427

PIN

- mounting

4шт.

9

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

4шт.

10

138-190

LOCK PIN,7/16" x 2", Slotted

PIN, 7/16" x 2", Slotted

2шт.

11

D43494

PLATE - backing, upper

1шт.

12

D43495

PLATE - backing, lower

1шт.

13

61-832

HEX SOC SCREW,1/2"-13 x 2"

SCREW - hex., socket head (1/2" - 13 NC x 2")

16шт.

14

131-354

LOCK NUT,1/2"-13, GA

NUT - hex., lock (1/2" - 13 NC)

16шт.

15

D36809

FORK

- pallet, 48" long, Includes: Ref. 16 and 17

2шт.

16

D41289

RING

- pin retaining

1шт.

17

D38359

PIN,12.7mm OD x 95.25mm L

PIN - fork positioning

1шт.
