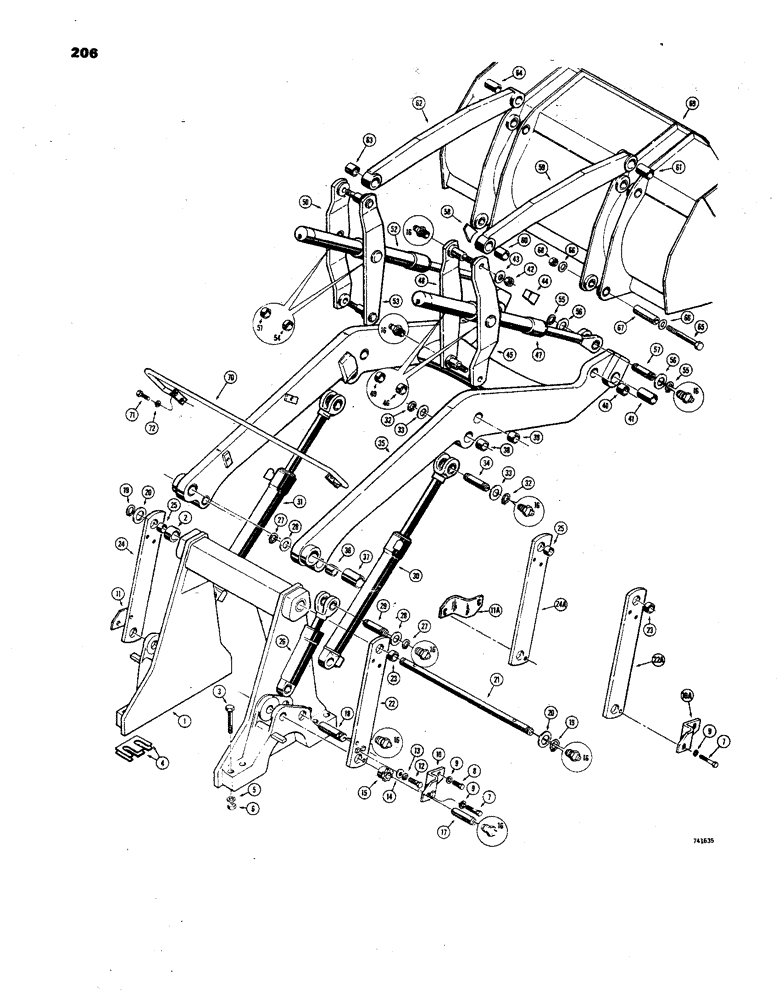

Запчасти Case 850 (206) - LOADER - MECHANICAL (05) - UPPERSTRUCTURE CHASSIS

1

D40062

FRAME - upright, loader, Includes: Ref. 2

1шт.

2

D40443

BUSHING

- upright frame

2шт.

3

13-20104

BOLT,Hex, 1-1/4" - 7 x 6-1/2", Gr 5

HHCS - 1-1/4" - 7 NC x 6-1/2"

8шт.

4

D40034

SHIM,.0558" Thk

Upright frame .0558" Thk

1шт.

5

D38676

WASHER

- special

8шт.

6

230-41120

LOCK NUT,1 1/4"-7, GA

NUT - hex., lock (1-1/4" - 7 NC)

8шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

8

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

D52282

STRAP

- pin retaining (R.H.) Used before tractor Sn. 7076075

1шт.

10a

R33971

STRAP

- pin retaining (R.H.) Used tractor Sn. 7076075 and after

1шт.

11

D52283

STRAP

- pin retaining (L.H.) Used before tractor Sn. 7076075

1шт.

11a

R33970

STRAP

- pin retaining (L.H.) Used tractor Sn. 7076075 and after

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

D41469 Bushing Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

14

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

15

D41469

BUSHING

- eccentric, tension adjustment (Used before tractor Sn. 7076075)

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

16шт.

17

D40029

PIN

- Hydra-Leveling cylinder to upright frame

2шт.

18

D40028

PIN

- lift cylinder to upright frame

2шт.

19

D40439

RING

- retaining

2шт.

20

D41472

WASHER

- special

2шт.

21

D40042

ROD

SHAFT - pivot, lift frame

1шт.

22

D41445

STRAP - tension, R.H. (Used before tractor Sn. 7076075), Includes: Ref. 23

1шт.

23

D41446

BUSHING

- strap

1шт.

22a

R33819

STRAP

- tension, R.H. (Used tractor Sn. 7076075 and after), Includes: Ref. 23

1шт.

23

D41446

BUSHING

- strap

1шт.

24

D41444

STRAP - tension, L.H. (Used before tractor Sn. 7076075), Includes: Ref. 25

1шт.

25

D41446

BUSHING

- strap

1шт.

24a

R33818

STRAP

- tension, L.H. (Used tractor Sn. 7076075 and after), Includes: Ref. 25

1шт.

25

D41446

BUSHING

- strap

1шт.

26

REF

INSTRUCTION

CYLINDER - Hydra-Leveling (See Figure 302 for cylinders)

2шт.

27

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

28

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, steel (1-13/16")

4шт.

29

D40040

PIN

- Hydra-Leveling cylinder to lift frame

2шт.

30

REF

INSTRUCTION

CYLINDER - R.H., lift (See Figure 302 for cylinders)

1шт.

31

REF

INSTRUCTION

CYLINDER - L.H., lift (See Figure 302 for cylinders)

1шт.

32

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

4шт.

33

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, steel (2-1/16")

4шт.

34

D40041

PIN

- lift cylinder to lift frame

2шт.

35

D47983

FRAME - loader lift, Includes: Ref. 36 - 41

1шт.

36

D40089

BUSHING

- at Hydra-Leveling cylinder

2шт.

37

D41383

BUSHING

- at upright frame

2шт.

38

D40050

BUSHING,51.03mm ID x 60.33mm OD x 50.8mm L

- at lift cylinder

2шт.

39

D43508

BUSHING

- at dump linkage

2шт.

40

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- at dump cylinder

2шт.

41

D33627

BUSHING

- at bucket

2шт.

42

25-1016

NUT,1"-8, G5

4шт.

43

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

4шт.

44

D40045

ELECTRICAL GAUGE

LEVELING GAUGE - bucket, dump link

1шт.

45

D47988

LINK

- dump, R.H. outer, Includes: Ref. 46

1шт.

46

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

47

REF

INSTRUCTION

CYLINDER - R.H., bucket (See Figure 302 for cylinders)

1шт.

48

D47990

LINK

- dump, R.H. inner, Includes: Ref. 49

1шт.

49

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

50

D47989

LINK

- dump, L.H. outer, Includes: Ref. 51

1шт.

51

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

52

REF

INSTRUCTION

CYLINDER - L.H., bucket (See Figure 302 for cylinders)

1шт.

53

D47991

LINK

- dump, L.H. inner, Includes: Ref. 54

1шт.

54

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link

1шт.

55

D25279

SNAP RING,M35, Int

RING - retaining

4шт.

56

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special

4шт.

57

D40037

PIN,38.1mm OD x 127mm L

- dump cylinder to lift frame

2шт.

58

D40033

GAUGE

LEVELING GAUGE - bucket, dump arm

1шт.

59

D47864

LINK ASSY.

ARM - dump, R.H., Includes: Ref. 60 and 61

1шт.

60

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- arm, at dump link (2" long)

1шт.

61

D33627

BUSHING

- arm, at bucket (3-1/4" long)

1шт.

62

D47865

POWER ARM

ARM - dump, L.H., Includes: Ref. 63 and 64

1шт.

63

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- arm, at dump link (2" long)

1шт.

64

D33627

BUSHING

- arm, at bucket (3-1/4" long)

1шт.

65

15-12140

X

HHCS - 3/4" - 10 NC x 8-3/4"

4шт.

66

72915

GASKET

- special

8шт.

67

R19659

PIN

- bucket

4шт.

68

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

4шт.

69

REF

INSTRUCTION

BUCKET - loader (See figure 210 and Figure 212 for options)

1шт.

70

D43507

HANDLE

HAND RAIL - loader

1шт.

71

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

72

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.
