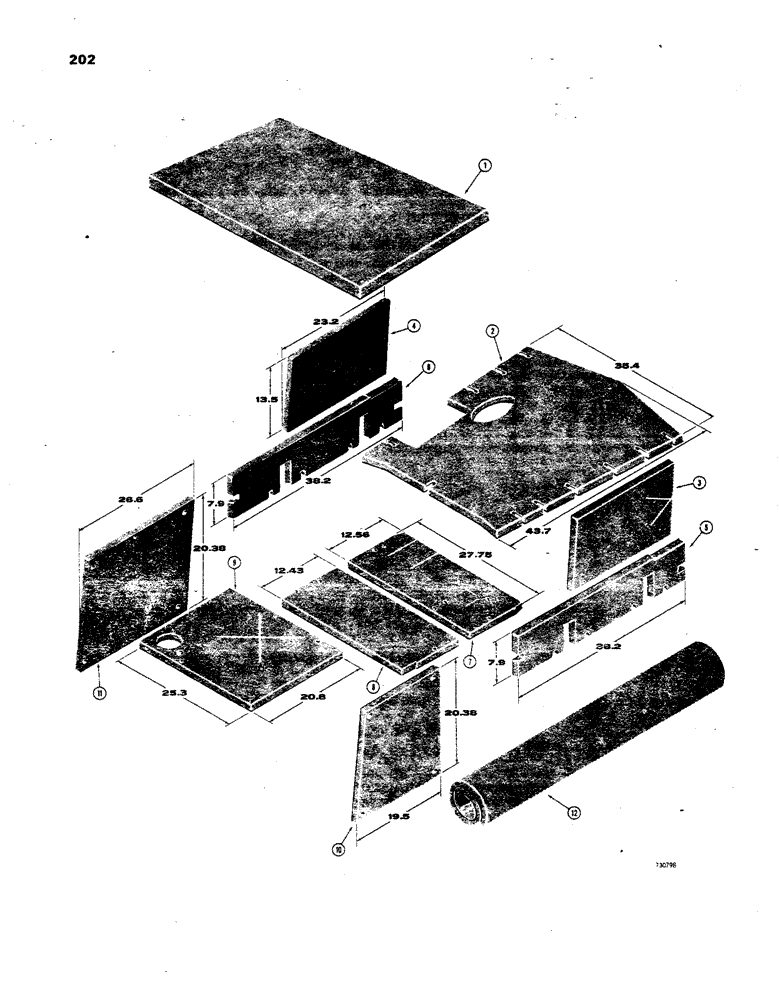

Запчасти Case 850 (202) - NOISE REDUCTION PADS (05) - UPPERSTRUCTURE CHASSIS

R5473

KIT - noise reduction (Drawbar and Dozer models) Machinery item

1шт.

R5472

KIT - noise reduction (Loader Models) Machinery item

1шт.

1

R26147

PAD - ROPS roof

1шт.

2

REF

INSTRUCTION

PAD - hood (Cut from R30870)

1шт.

3

REF

INSTRUCTION

PAD - side shield, R.H. (Engine) Cut from R30870

1шт.

4

REF

INSTRUCTION

PAD - side shield, L.H. (Engine) Cut from R30870

1шт.

5

REF

INSTRUCTION

PAD - panel, R.H. (Engine) Cut from R30870

1шт.

6

REF

INSTRUCTION

PAD - panel. L .H. (Engine) Cut from R30870

1шт.

7

REF

INSTRUCTION

PAD - floor, front (Cut from R30870)

1шт.

8

REF

INSTRUCTION

PAD - floor, rear (Cut from R30870)

1шт.

9

REF

INSTRUCTION

PAD - panel, underseat (Cut from R30870)

1шт.

10

REF

INSTRUCTION

PAD - hydraulic tank, valve compartment (Cut from R30870)

1шт.

11

REF

INSTRUCTION

PAD - plate, battery box (Cut from D59899)

1шт.

12

R30870

PAD

- noise reduction, bulk (54" x 72" x 1")

1шт.

13

NSS

NOT SOLD SEPARAT

SOLVENT - 1 qt. (Not shown)

1шт.

14

NSS

NOT SOLD SEPARAT

ADHESIVE - aerosol can (Not shown)

1шт.
