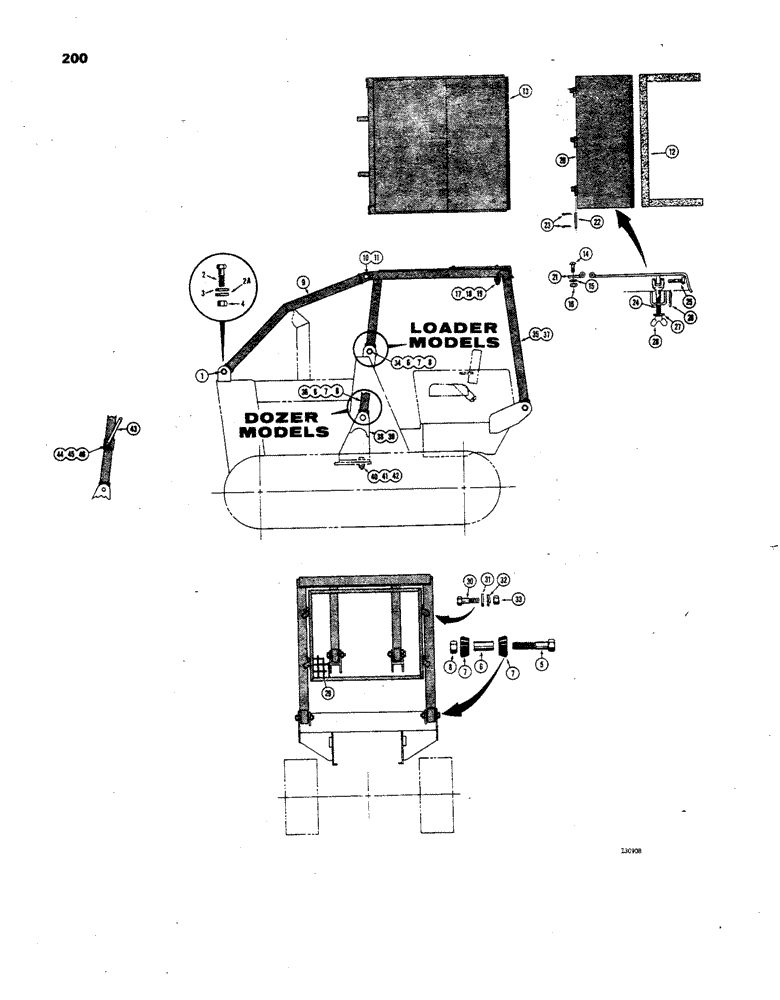

Запчасти Case 850 (200) - ROLL-OVER PROTECTION STRUCTURE (05) - UPPERSTRUCTURE CHASSIS

1

F93219

PLATE

BRACKET - guard mount

2шт.

2

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

HHCS - 3/4" - 10 NC x 2"

6шт.

2a

195-545

WASHER,3/4", SAE

- flat (3/4")

2шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

6шт.

4

25-1012

NUT,3/4"-10, G5

6шт.

5

26-1696

BOLT,Hex, 1" - 8 x 6", Gr 8

HHCS - 1" - 8 NC x 6"

4шт.

6

F42250

BUSHING

- mount

6шт.

7

F42265

INSERT

- rubber (Vibration dampener)

12шт.

8

131-20

LOCK NUT,1"-8, GB

NUT - lock (1" - 8 NC)

6шт.

9

F93335

GUARD - brush sweeps

2шт.

10

26-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

HHCS - 1" - 8 NC x 4"

2шт.

11

230-41116

NUT,1"-8, GA

NUT - hex., lock (1" - 8 NC)

2шт.

12

REF

INSTRUCTION

FOAM RUBBER - vibration dampener (90" long) Use F42419 roll for service

1шт.

13

F42450

EYEBOLT

ROOF - rear, stationary

1шт.

14

111-512

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G2

BOLT, CARRIAGE, Short NK, 1/2"- 13 x 1", G2

3шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

17

111-523

CARRIAGE BOLT,Short NK, 1/2"-13 x 6 1/2", G2

BOLT - round head sq. shouldered (1/2" - 13 NC x 6-1/2")

2шт.

18

95-533

WASHER - plain (1/2") plated

2шт.

19

131-70

NUT,1/2"-13, GB

NUT - hex., lock (1/2") plated

2шт.

20

F93339

ROOF - rear, hinged

1шт.

21

F93322

HINGE

- roof

3шт.

22

F42316

EYEBOLT

PIN - hinge

3шт.

23

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

6шт.

24

F50092

ROD - roof retaining

2шт.

25

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

26

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

27

195-104

WASHER,3/8"

- flat () plated 3/8"

2шт.

28

129-410

WING NUT,3/8"-16

NUT - winged (3/8" - 16 NC)

2шт.

29

F93343

SCREEN - rear

1шт.

30

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

31

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

32

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

33

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

34

26-1696

BOLT,Hex, 1" - 8 x 6", Gr 8

HHCS - 1" - 8 NC x 6", loader models only

2шт.

35

F93341

ROLL OVER PROTECTION STRUCTURE, loader models only

1шт.

36

26-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 8

HHCS - 1" - 8 NC x 6-1/2", dozer and drawbar models only

2шт.

37

F93342

ROLL OVER PROTECTION STRUCTURE, dozer and drawbar models only

1шт.

38

F93337

YOKE

BRACKET ASSEMBLY - mounting, L.H., dozer and drawbar model only

1шт.

39

F93336

YOKE

BRACKET ASSEMBLY - mounting, R.H., dozer and drawbar models only

1шт.

40

13-2056

BOLT (MACHINE),Hex, 1-1/4" - 7 x 3-1/2", Gr 5

HHCS - 1-1/4" - 7 NC x 3-1/2", drawbar and dozer models only

4шт.

41

D38676

WASHER

- special, dozer and drawbar models only

4шт.

42

230-41120

LOCK NUT,1 1/4"-7, GA

NUT - hex., lock (1-1/4" - 7 NC), drawbar and dozer models only

4шт.

43

D43507

HANDLE

RAIL - hand, drawbar and dozer models only

1шт.

44

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Dozer and drawbar models only Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

45

92-8

LOCK WASHER,1/2"

drawbar and dozer models only 1/2"

4шт.

46

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC), drawbar and dozer models only

4шт.
