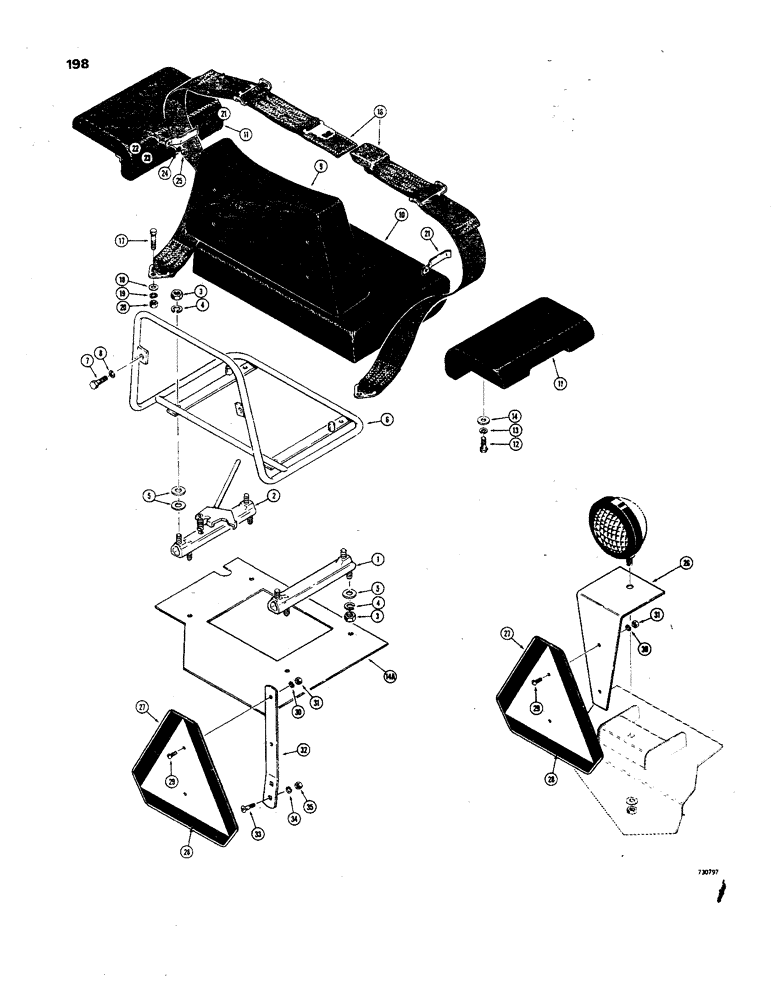

Запчасти Case 850 (198) - SEAT FRAME AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

D40238

SLIDE

- seat (Service with R26375 slide and (4) 25-105 nuts)

1шт.

1

R26375

ADJUSTER

SLIDE - seat (Uses 5/16" - NC nuts)

1шт.

2

D40237

SLIDE

AND LATCH - seat (Service with R25578 and (4) 25-105 nuts)

1шт.

2

R25578

SLIDE

AND LATCH - seat (Uses 5/16" - NC nuts)

1шт.

3

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF) D40238 and D40237 slides

8шт.

3

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC) R26375 and R25578 slides

8шт.

4

92-5

LOCK WASHER,5/16"

med sect. 5/16"

8шт.

5

195-21

WASHER,5/16"

- plain () 5/16"

12шт.

6

D36279

SEAT

FRAME - seat

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

9

D44169

CUSHION

- seat, back

1шт.

10

D35226

SEAT

CUSHION - seat

1шт.

11

D36317

CUSHION

- arm and hip

2шт.

12

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

195-18

WASHER,1/4"

- plain () 1/4"

4шт.

14a

R26177

PLATE AND PAD - under seat (Noise reduction models) See figure 202 for replacement pad

1шт.

15

D44411

SEAT

BELT ASSEMBLY - seat, includes hardware (1-13/16" wide) Not illustrated

1шт.

16

D60615

SAFETY BELT ,3.00" W

3.00" W

1шт.

17

F42236

STEP BOLT

BOLT - special, seat belt

2шт.

18

195-529

WASHER,7/16", SAE

- plain (7/16") plated, seat belt

2шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Seat belt 7/16"

2шт.

20

425-117

NUT,7/16"-20, G5

- hex. (7/16" - 20 NF) plated, seat belt

2шт.

21

D50522

HOOK

- D44411 belt, seat

2шт.

21

R24720

HOOK

- L48907 belt, seat

2шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Seat belt Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

23

195-21

WASHER,5/16"

- flat (), Seat belt 5/16"

2шт.

24

92-5

LOCK WASHER,5/16"

med sect., seat belt 5/16"

2шт.

25

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), seat belt

2шт.

26

D52014

BRACKET - mounting, emblem (Models without ROPS), slow moving vehicle

1шт.

A59450

WARNING SIGN

EMBLEM - slow moving emblem, vehicle, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - backing, emblem, slow moving vehicle

1шт.

28

321-175

DECAL

- SMV emblem

1шт.

29

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- flat head (#10 - 24 NC x 7/16") plated, slow moving vehicle emblem

2шт.

30

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , SMV emblem #10

2шт.

31

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) plated, slow moving vehicle emblem

2шт.

32

R27977

BRACKET - mounting, emblem (Models with ROPS), slow moving vehicle

1шт.

33

111-204

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/4", G2

BOLT - round head, sq. shoulder (5/16" - 18 NC x 1-1/4") plated, slow moving vehicle emblem

2шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , SMV emblem 5/16"

2шт.

35

9635082

NUT,5/16" - 18, Gr 5

SMV emblem 5/16"-18, G5

2шт.
