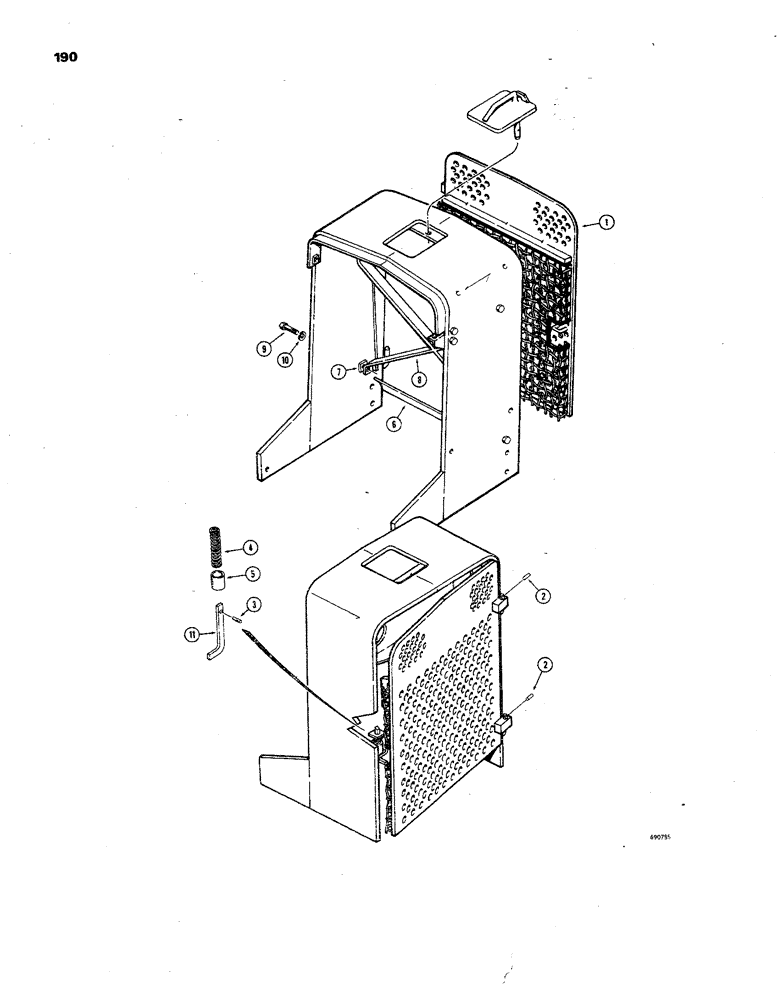

Запчасти Case 850 (190) - HEAVY DUTY GRILLE (05) - UPPERSTRUCTURE CHASSIS

1

D48217

GRILLE - heavy duty

1шт.

2

138-95

PIN - roll, 3/16" dia. x 1-1/8" 3/16" x 15/16", Slotted

2шт.

3

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

4

D47957

SPRING - latch

1шт.

5

B18314

SPACER - spring, latch 1" Pipe x 1 1/2"

1шт.

6

D48218

BRACE - grille

1шт.

7

NSS

NOT SOLD SEPARAT

SPACER - "X" brace

1шт.

8

D41112

BRACE

- "X", radiator guard

1шт.

9

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

10

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

11

D47961

BAR - grille lock

1шт.
