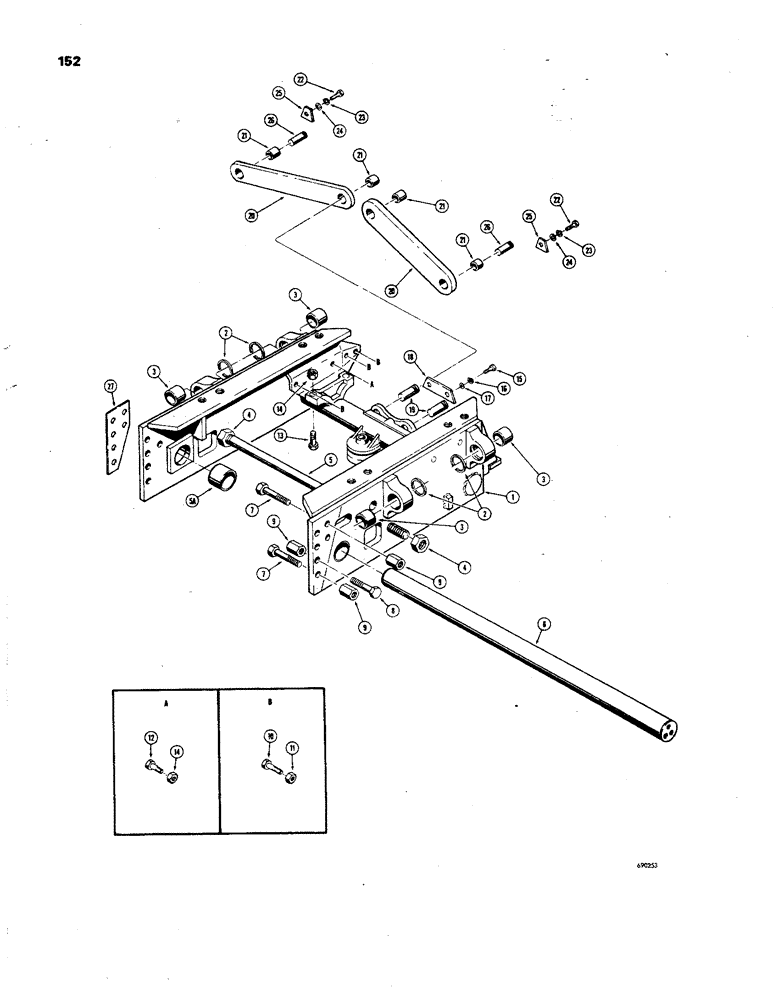

Запчасти Case 850 (152) - MAIN FRAME AND GUIDE LEVERS (05) - UPPERSTRUCTURE CHASSIS

D39983

MAIN FRAME ASSEMBLY - crawler, Includes: Ref. 2 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

MAIN FRAME - crawler

1шт.

2

R20786

RING

- snap

4шт.

3

70091

BUSHING

- main frame, torsion bar bracket

4шт.

4

25-1124

NUT,1 1/2"-12, G5

- hex. (1-1/2" - 12 NF)

4шт.

5

R21857

ROD

- compression

1шт.

5a

D32333

BUSHING

- main frame, side plate

2шт.

6

D39994

SHAFT

- pivot

1шт.

7

D52026

BOLT

- special, body fit

4шт.

8

13-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 5

HHCS - 1" - 8 NC x 3-1/4"

8шт.

9

131-659

NUT,1"-8, GB

NUT - hex., lock (1" - 8 NC)

12шт.

10

D30593

BOLT

HHCS - 7/8" - 9 NC x 2" (Body fit)

6шт.

11

230-41114

LOCK NUT,7/8"-9, GA

NUT - hex., lock (7/8" - 9 NC)

6шт.

12

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

13

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

14

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex., lock (3/4" - 10 NC)

6шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

18

D39926

PLATE

- pin retaining, at main frame

1шт.

19

D42090

PIN

- guide lever

2шт.

20

D19203

LEVER - guide, main frame to track frame, Includes: Ref. 21

2шт.

21

D36473

BUSHING,37.64mm ID x 50.65mm OD x 34.92mm L

- lever

2шт.

22

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

23

92-8

LOCK WASHER,1/2"

2шт.

24

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

25

D30391

PLATE

- pin retaining, at track frame

2шт.

26

D42090

PIN

- guide lever

2шт.

27

D44179

SHIM,.0598" Thk

(16 gauge) .0598" Thk

1шт.

27

D44180

SHIM,.0299" Thk

(22 gauge) .0299" Thk

1шт.
