(171A) - R33552 TRACK ROLLER - SINGLE FLANGE, FOR IDENTIFICATION - SEE REF 2 OF ILLUSTRATION

Запчасти Case 850 (171A) - R33552 TRACK ROLLER - SINGLE FLANGE, FOR IDENTIFICATION - SEE REF 2 OF ILLUSTRATION (04) - UNDERCARRIAGE

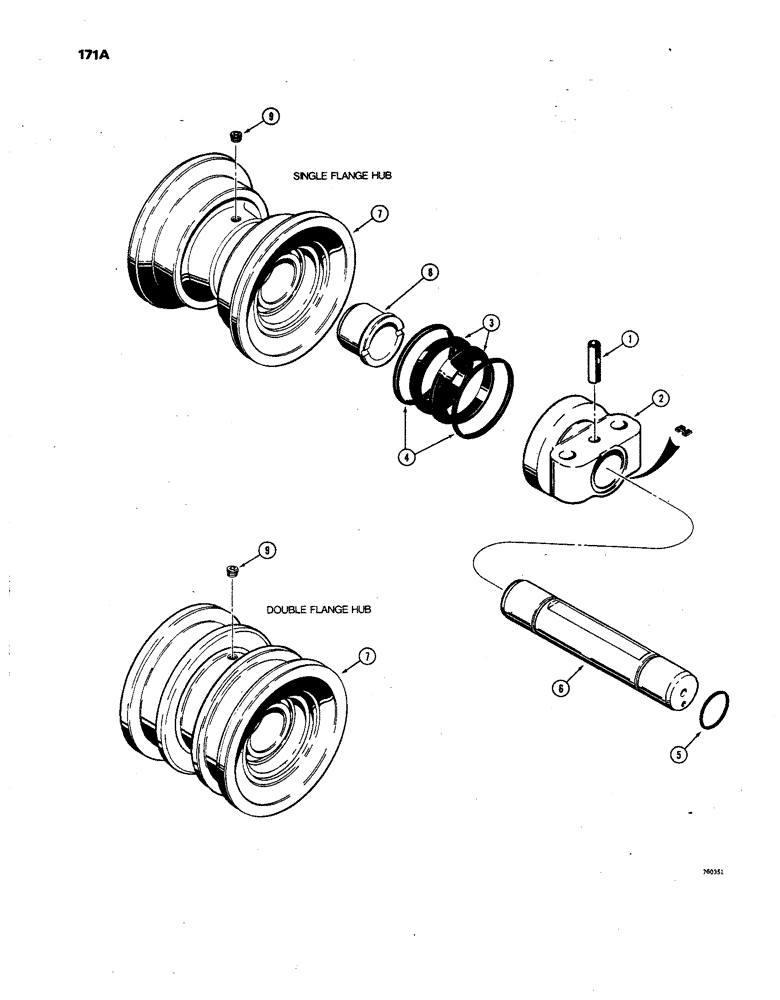

Схема запчастей Case 850 - (171A) - R33552 TRACK ROLLER - SINGLE FLANGE, FOR IDENTIFICATION - SEE REF 2 OF ILLUSTRATION (04) - UNDERCARRIAGE
9
9
3
4
7
8
6
1
2
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R33552

ROLL

ER - track, Includes: Ref. 1 - 9

10шт.

1

R33563

ROLL PIN

PIN - cap retaining

2шт.

2

R33560

BUSHING

CAP - end collar

2шт.

R33564

SEAL

- face, Includes: Ref. 3 and 4

4шт.

3

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

4

NSS

NOT SOLD SEPARAT

RING - sealing

2шт.

5

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - O-ring

2шт.

6

R33561

SHAFT

- roller

1шт.

R33558

ROLLER

HUB ASSEMBLY, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

HUB - roller

1шт.

8

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- roller

2шт.

9

R33557

PLUG

- roller

1шт.

R33553

ROLLER

- track, double flange, for id see ref 2 of illustration, Includes: Ref. 1 - 9

4шт.

1

R33563

ROLL PIN

PIN - cap retaining, R33553 track roller double flange, for id see ref 2 of illustration

2шт.

2

R33560

BUSHING

CAP - end collar, R33553 track roller double flange, for id see ref 2 of illustration

2шт.

R33564

SEAL

- face, R33553 track roller double flange, for id see ref 2 of illustration, Includes: Ref. 3 and 4

4шт.

3

NSS

NOT SOLD SEPARAT

SEAL - rubber, R33553 track roller double flange, for id see ref 2 of illustration

2шт.

4

NSS

NOT SOLD SEPARAT

RING - sealing, R33553 track roller double flange, for id see ref 2 of illustration

2шт.

5

A5156

SEAL - "O" ring, R33553 track roller double flange, for id see ref 2 of illustration

2шт.

6

R33561

SHAFT

- R33553 track roller double flange, for id see ref 2 of illustration

1шт.

R33559

ROLLER

HUB ASSEMBLY, R33553 track roller double flange, for id see ref 2 of illustration, Includes: Ref. 7 - 9

1шт.

7

R33555

HUB - R33553 track roller double flange, for id see ref 2 of illustration

1шт.

8

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- R33553 track roller double flange, for id see ref 2 of illustration

2шт.

9

R33557

PLUG

- R33553 track roller double flange, for id see ref 2 of illustration

1шт.
