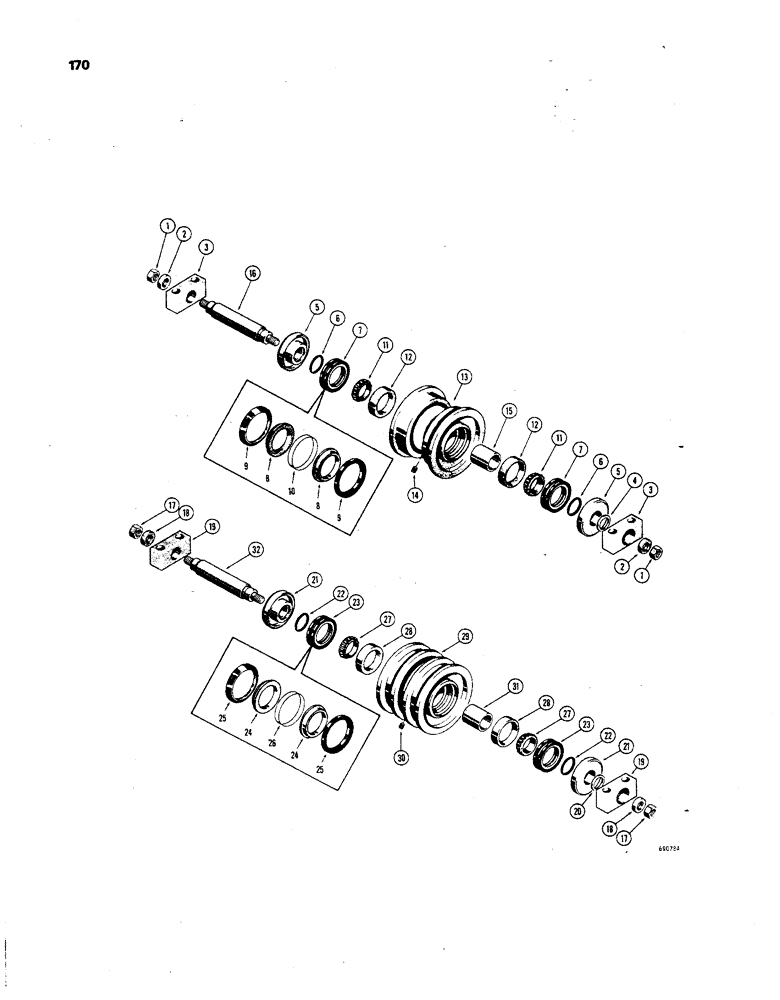

Запчасти Case 850 (170) - TRACK ROLLERS, R24102 TRACK ROLLERS (SINGLE FLANGE), FOR I.D.- SEE REF 3 OF ILLUSTRATION (04) - UNDERCARRIAGE

R24102

ROLLER

- track, Includes: Ref. 1 - 16

10шт.

1

280375

NUT,3/4"-10, GC

NUT - hex., lock (3/4" - 10 NC)

2шт.

2

D44182

WASHER

- special

2шт.

3

D36409

BLOCK

- roller

2шт.

4

D31329

SHIM,.005" Thk

1шт.

5

D45502

BUSHING

- thrust

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring

2шт.

7

D35267

SEAL

- face, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal, split

1шт.

D36826

SEAL KIT

KIT - repair, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - plastic

2шт.

11

D44321

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing

2шт.

12

D44322

BEARING CUP,3.375" OD x 0.9375"

CUP - bearing

2шт.

13

R24100

ROLLER

HUB - roller, single flange

1шт.

14

221-841

PLUG

- pipe, hex. socket head (1/4" NPT)

1шт.

15

D44183

SPACER

- bearing

1шт.

16

D44184

SHAFT

- roller

1шт.

R24103

ROLLER

- track, double flange, for id see ref 19 of illustration, Includes: Ref. 17 - 32

4шт.

17

280375

NUT,3/4"-10, GC

NUT - hex., lock (3/4" - 10 NC), R24103 track roller double flange, for id see ref 19 of illustration

2шт.

18

D44182

WASHER

- special, R24103 track roller double flange, for id see ref 19 of illustration

2шт.

19

D36409

BLOCK

- R24103 track roller double flange, for id see ref 19 of illustration

2шт.

20

D31329

SHIM,.005" Thk

R24103 track roller, double flange, for ID, See Ref 19 of illustration .005" Thk

1шт.

21

D45502

BUSHING

- thrust, R24103 track roller double flange, for id see ref 19 of illustration

2шт.

22

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, R24103 track roller double flange, for id see ref 19 of illustration

2шт.

23

D35267

SEAL

- face, R24103 track roller double flange, for id see ref 19 of illustration, Includes: Ref. 24 - 26

2шт.

24

NSS

NOT SOLD SEPARAT

BODY - seal, split, R24103 track roller double flange, for id see ref 19 of illustration

1шт.

D36826

SEAL KIT

KIT - repair, R24103 track roller double flange, for id see ref 19 of illustration, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - rubber, R24103 track roller double flange, for id see ref 19 of illustration

2шт.

26

NSS

NOT SOLD SEPARAT

RETAINER - plastic, R24103 track roller double flange, for id see ref 19 of illustration

2шт.

27

D44321

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing, R24103 track roller double flange, for id see ref 19 of illustration

2шт.

28

D44322

BEARING CUP,3.375" OD x 0.9375"

CUP - bearing, R24103 track roller double flange, for id see ref 19 of illustration

2шт.

29

R24101

HUB

- R24103 track roller double flange, for id see ref 19 of illustration

1шт.

30

221-841

PLUG

- pipe, hex. socket head (1/4" NPT), R24103 track roller double flange, for id see ref 19 of illustration

1шт.

31

D44183

SPACER

- bearing, R24103 track roller double flange, for id see ref 19 of illustration

1шт.

32

D44184

SHAFT

- R24103 track roller double flange, for id see ref 19 of illustration

1шт.
