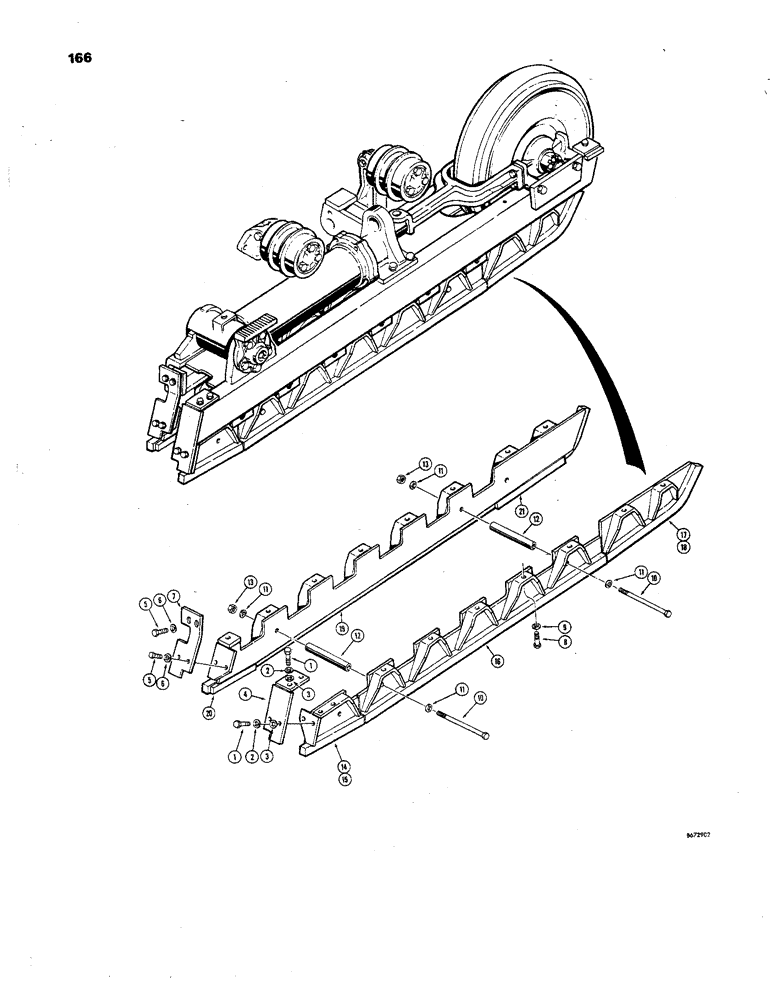

Запчасти Case 850 (166) - TRACK GUIDES - 6 ROLLER (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
1
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
8шт.
3
195-41
WASHER,5/8"
- plain () 5/8"
8шт.
4
D40116
GUARD
- rock, outer rear (R.H.)
1шт.
4
D40115
GUARD ASSY.
GUARD - rock, outer rear (L.H.) Not illustrated
1шт.
5
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
8шт.
7
D41386
GUARD
- rock, inner rear (R.H.)
1шт.
7
D41385
GUARD ASSY.
GUARD - rock, inner rear (L.H.) Not illustrated
1шт.
8
26-1224
BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8
34шт.
9
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special
34шт.
10
15-12160
BOLT,Hex, 3/4" - 10 x 10", Gr 5
HHCS - 3/4" - 10 NC x 10"
8шт.
11
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special
16шт.
12
D35698
SPACER
- track guides
8шт.
13
230-41112
LOCK NUT,3/4"-10, GA
NUT - hex., lock (3/4" - 10 NC)
8шт.
14
D40105
GUARD
TRACK GUIDE - rear, R.H. outer, Includes: Ref. 15
1шт.
15
D40109
STRIP
WEAR STRIP - guide (Not illustrated)
1шт.
14
D40104
GUARD
TRACK GUIDE - rear, L.H. outer (Not illustrated), Includes: Ref. 15
1шт.
15
D40109
STRIP
WEAR STRIP - guide (Not illustrated)
1шт.
16
D35728
GUIDE
TRACK GUIDE - center, R.H. outer
1шт.
16
D35727
NO LONGER SERVICED
TRACK GUIDE - center, L.H. outer (Not illustrated)
1шт.
17
D35707
GUARD
TRACK GUIDE - front, R.H. outer, Includes: Ref. 18
1шт.
18
D38440
STRIP
WEAR STRIP - guide (Not illustrated)
1шт.
17
D35706
GUARD
TRACK GUIDE - front, L.H. outer (Not illustrated), Includes: Ref. 18
1шт.
18
D38440
STRIP
WEAR STRIP - guide (Not illustrated)
1шт.
19
D40111
GUARD
TRACK GUIDE - R.H. inner, Includes: Ref. 20 and 21
1шт.
20
D40109
STRIP
WEAR STRIP - guide, rear
1шт.
21
D38440
STRIP
WEAR STRIP - guide, front
1шт.
19
D40110
GUARD
TRACK GUIDE - L.H. inner (Not illustrated), Includes: Ref. 20 and 21
1шт.
20
D40109
STRIP
WEAR STRIP - guide, rear (Not illustrated)
1шт.
21
D38440
STRIP
WEAR STRIP - guide, front (Not illustrated)
1шт.
Выбрано товаров: 31
