Запчасти Case 850 (146) - TRANSMISSION OIL FILTERS, D43639 TRANSMISSION OIL FILTER ( SUCTION LINE) (03) - TRANSMISSION

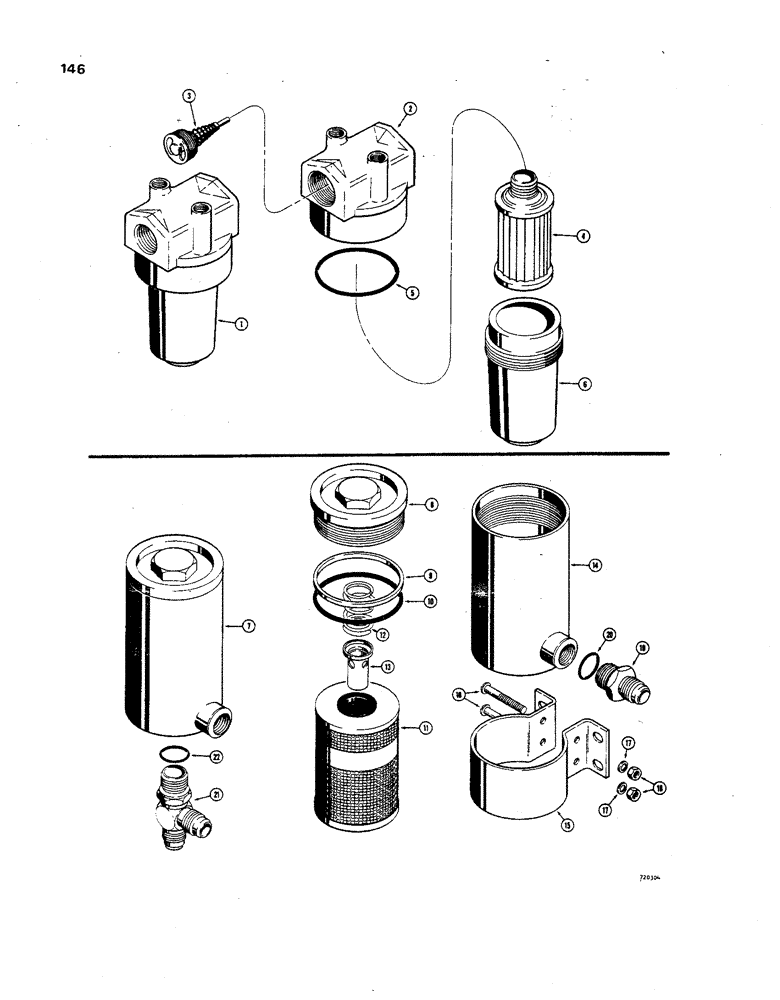

Схема запчастей Case 850 - (146) - TRANSMISSION OIL FILTERS, D43639 TRANSMISSION OIL FILTER ( SUCTION LINE) (03) - TRANSMISSION
5
15
7
6
13
19
2
10
17
17
22
11
14
18
3
21
4
12
8
20
1
9

Артикул

Название

Примечание

Количество

1

D43639

FILTER, ENGINE OIL

FILTER - transmission oil (Suction line), Includes: Ref. 2 - 6

1шт.

D43798

HEAD

ASSEMBLY - filter, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

3

D49376

VALVE

- oil bypass (3 P.S.I.)

1шт.

D32211

FILTER, ELEMENT

KIT - filter element, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

SCREEN - filter

1шт.

5

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

6

D43799

HOUSING

- filter

1шт.

7

NLS

NO LONGER SERVICED

FILTER - transmission oil (Pressure line), Includes: Ref. 8 - 14

1шт.

8

D31214

CAP

- filter, D45336 transmission oil filter (pressure line)

1шт.

A62871

ELEMENT

KIT - filter, D45336 transmission oil filter (pressure line), Includes: Ref. 9 - 11

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

D45336 Transmission oil filter (Pressure line)

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O" ring, D45336 transmission oil filter (pressure line)

1шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - filter (Order A62871 kit for service), D45336 transmission oil filter (pressure line)

1шт.

12

D31212

SPRING

- retaining, D45336 transmission oil filter (pressure line)

1шт.

13

D37207

VALVE

- relief, D45336 transmission oil filter (pressure line)

1шт.

14

D45333

BODY

- filter, D45336 transmission oil filter (pressure line)

1шт.

15

D47871

BRACKET

- filter, D45336 transmission oil filter (pressure line)

1шт.

16

75-544

RHMS - 5/16" - 18 NC x 2-3/4", D45336 transmission oil filter (pressure line)

2шт.

17

92-5

LOCK WASHER,5/16"

D45336 transmission oil filter (pressure line) 5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), D45336 transmission oil filter (pressure line)

2шт.

19

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, D45336 transmission oil filter (pressure line), Includes: Ref. 20

1шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D45336 transmission oil filter (pressure line)

1шт.

21

218-5294

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

- adjustable, male, D45336 transmission oil filter (pressure line), Includes: Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D45336 transmission oil filter (pressure line)

1шт.

Выбрано товаров: 25
