Запчасти Case 850 (138) - TRANSMISSION HYDRAULICS (03) - TRANSMISSION

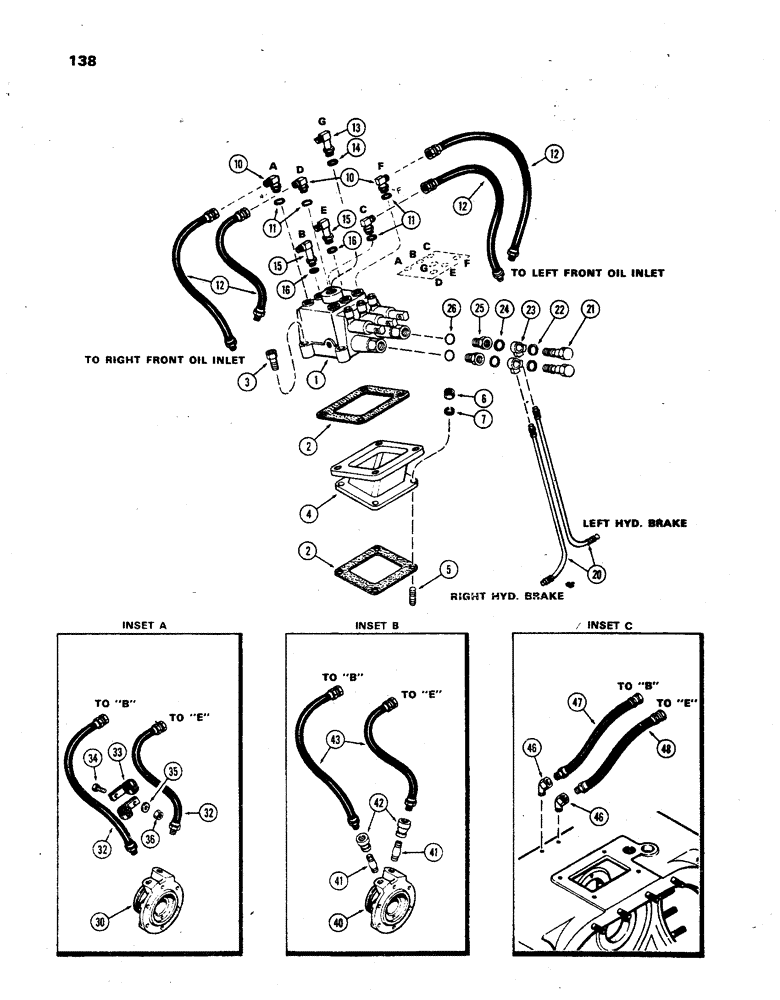

Схема запчастей Case 850 - (138) - TRANSMISSION HYDRAULICS (03) - TRANSMISSION
16
2
32
11
3
20
43
5
46
12
24
13
36
7
30
33
4
32
10
35
47
10
14
46
22
12
42
40
26
25
11
1
15
34
41
41
48
12
15
21
2
6
23
16

Артикул

Название

Примечание

Количество

1

R20724

VALVE

ASSY. - control (Repairs - See Figure 140)

1шт.

2

A50113

GASKET

- mounting, valve & base

2шт.

3

166-49

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

BOLT - valve to base (3/8 x 2" N.C., 12 pt. hd.)

4шт.

4

A50114

BASE

- valve mounting

1шт.

5

A50019

NO LONGER SERVICED

STUD - base to trans. hsg. (3/8" N.C. x 1-1/2")

4шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - front cover hose, 90deg. adj., short, Includes: Ref. 11

4шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - elbow seal (1/2 x 5/8 x 1/16")

1шт.

12

A50296

HYDRAULIC HOSE,6.35 mm ID x 495.30 mm, SAE100R1

6.35 mm ID x 495.30 mm, SAE 100R1 - Control valve to front inlet cover

4шт.

13

R20894

FITTING

ELBOW ASSY. - valve inlet, 90deg. adj., long, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow seal (3/4 x 1-1/8 x 3/32")

1шт.

15

R20739

FITTING

ELBOW ASSY. - rear cover hose. 90deg. adj., long, Includes: Ref. 16

2шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O" RING - elbow seal (1/2 x 5/8 x 1/16")

1шт.

20

A50126

TUBE

- valve to brake cylinders

2шт.

21

A12864

BOLT

- connection, brake tube

2шт.

22

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- brake connection bolt, outer

2шт.

23

51200243

FITTING

- brake line hydraulic

2шт.

24

NLS

NO LONGER SERVICED

- connection bolt, inner

2шт.

25

72125

ADAPTER

- brake tube fitting bolt

2шт.

30

A50578

COVER

- "B" shaft rear brg., used w/ A50578 cover with 1/4" P.T. holes inset A

1шт.

32

A50297

HYDRAULIC HOSE,6.35 mm ID x 704.80 mm, SAE100R1

6.35 mm ID x 704.80 mm, SAE 100R1 - Valve to rear cover, Used w/ A50578 cover with 1/4" P.T. holes inset A

1шт.

32

A50579

HOSE

- valve to rear cover (24" long), used w/ A50578 cover with 1/4" P.T. holes inset A

1шт.

33

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- rear cover hose, used w/ A50578 cover with 1/4" P.T. holes inset A

2шт.

34

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Clamp, used w/ A50578 cover with 1/4" P.T. holes inset A Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

35

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16" N.C. hex., used w/ A50578 cover with 1/4" P.T. holes inset A

1шт.

36

195-21

WASHER,5/16"

- 3/8 x 5/8 x 1/16", Used w/ A50578 cover with 1/4" P.T. holes inset A

1шт.

40

A54106

X

COVER - "B" shaft rear brg. (Order A50578 cover), used w/ A54106 cover with 1/8" P.T. holes inset B

1шт.

41

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - reducer to cover, 1/8" P.T. x 3/4", used w/ A54106 cover holes inset B

1шт.

42

221-344

LUBE NIPPLE

COUPLING - reducer, 1/4" to 1/8", used w/ A54106 cover with P.T. holes inset B

1шт.

43

A50297

HYDRAULIC HOSE,6.35 mm ID x 704.80 mm, SAE100R1

6.35 mm ID x 704.80 mm, SAE 100R1 - Valve to rear cover, Used w/ A54106 cover with 1/8" P.T. holes inset B

2шт.

46

R22368

ELBOW

- 45deg., hose to, used w/ A50388 transmission housing inset C

2шт.

47

A50294

HYDRAULIC HOSE,14.25"

- Valve to housing, LH, Used w/ A50388 transmission inset C 14.25"

1шт.

48

A50295

HYDRAULIC HOSE,6.35 mm ID x 419.00 mm, SAE100R1

- Valve to housing, RH (19-1/2" long), Used w/ A50388 transmission inset C

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - adapter sealing (5/8 x 13/16 x 1/16")

2шт.

Выбрано товаров: 35
