Запчасти Case 850 (134) - FINAL DRIVE AND HOUSING, USED PRIOR TO TRANS. S/N 2697154, USED PRIOR TO TRAC. S/N 7074053 (03) - TRANSMISSION

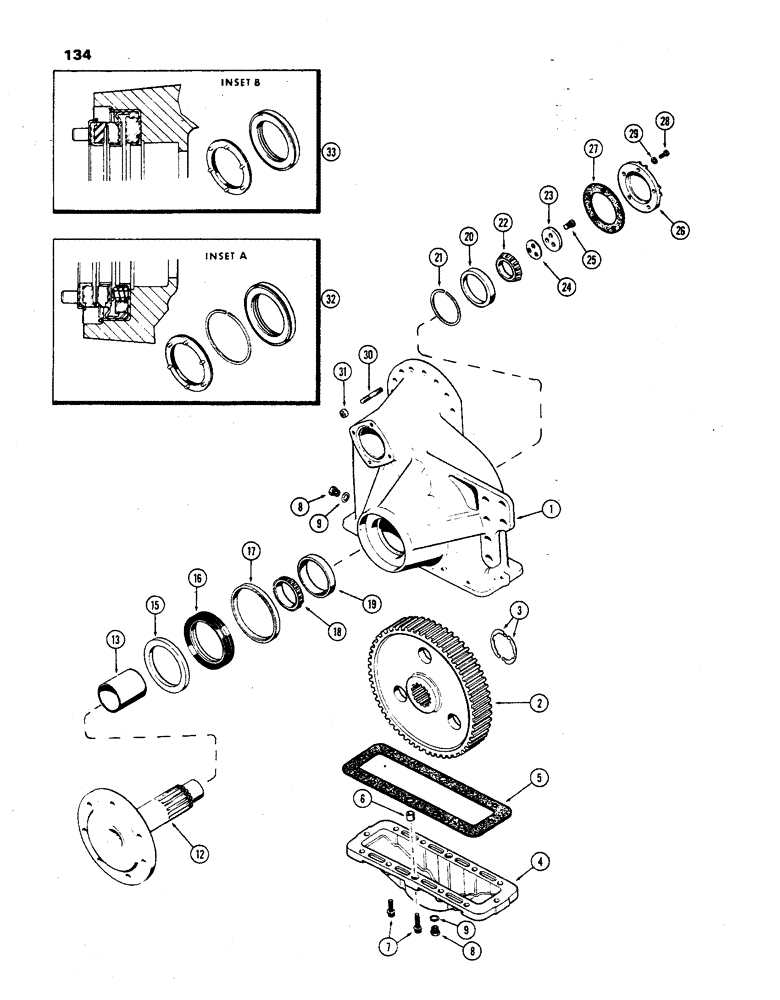

Схема запчастей Case 850 - (134) - FINAL DRIVE AND HOUSING, USED PRIOR TO TRANS. S/N 2697154, USED PRIOR TO TRAC. S/N 7074053 (03) - TRANSMISSION
3
17
6
8
8
16
18
1
20
29
5
25
26
22
9
15
4
33
13
2
23
32
7
30
19
21
12
9
24
27
31
28

Артикул

Название

Примечание

Количество

A50130

DRIVE ASSY.

- final, right hand, Includes: Ref. 1 - 29

1шт.

A50131

DRIVE

ASSY. - final, left hand, Includes: Ref. 1 - 29

1шт.

1

A50298

HOUSING

- final drive, right hand

1шт.

1

A50299

HOUSING

- final drive, left hand

1шт.

2

A50134

GEAR

- final drive

1шт.

3

CASA50163

RING

Ring, Snap, , final drive inter-locking #325, Ext

2шт.

4

A50142

COVER

- drop, final drive

1шт.

5

A50141

GASKET

- drop cover

1шт.

6

A50011

SLEEVE

- dowel, drop cover locating

2шт.

7

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- cover to hsg. (1/2 x 1-1/2" N.C., 12 pt. head)

10шт.

7

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

BOLT - cover to hsg. (1/2 x 1-3/4" N.C., 12 pt. head)

2шт.

8

A50014

PLUG

- housing, drain & fill

2шт.

9

A58608

GASKET

- fill & drain plug

2шт.

12

A51504

SHAFT

- sprocket, final drive (Replaces A51186 & A50475)

1шт.

13

A50301

PIN

- final drive shaft

1шт.

A50555

SEAL

KIT - oil, final drive (See Insets for old kits), Includes: Ref. 15 - 17

1шт.

15

A50553

SEAL

SEAT - face seal

1шт.

16

A50552

SEAL

- face, final drive

1шт.

17

A50554

SPACER

-, Serial Range: seal-housing

1шт.

18

T30649

ROLLER BEARING,3.25" ID x 1.3125"

CONE - bearing, outer (3-1/4" I.D.)

1шт.

19

A15434

CUP

- bearing, outer (5-1/4" O.D.)

1шт.

20

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, inner (4-11/32" O.D.)

1шт.

21

A50132

RING

- snap, inner cup retaining

1шт.

22

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE - bearing, inner (2-1/2" I.D.)

1шт.

23

A50537

PLATE

- lock

1шт.

24

R21741

SHIM,.005" Thk

Lock plate .005" Thk

1шт.

24

R21742

SHIM,.007" Thk

Lock plate .007" Thk

1шт.

24

R21743

SHIM,.020" Thk

Lock plate .020" Thk

1шт.

25

R19888

SCREW

BOLT - plate to shaft (9/16 x 1-1/4" N.F. spec.)

3шт.

26

A50140

COVER

- final drive shaft

1шт.

27

A50139

GASKET

- shaft cover

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover to housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

5шт.

29

92-6

LOCK WASHER,3/8"

5шт.

30

A50021

STUD

- drive hsg. to trans. case (1/2" N.C. x 3")

30шт.

31

88871

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

30шт.

32

A50545

KIT

SEAL KIT - See Inset A (Order A50555)

2шт.

33

A50244

SEAL

KIT - See Inset B (Order A50555)

2шт.

Выбрано товаров: 37
