Запчасти Case 850 (128) - CLUTCH, HIGH AND LOW SPEED, WITH ALUMINUM PISTON (03) - TRANSMISSION

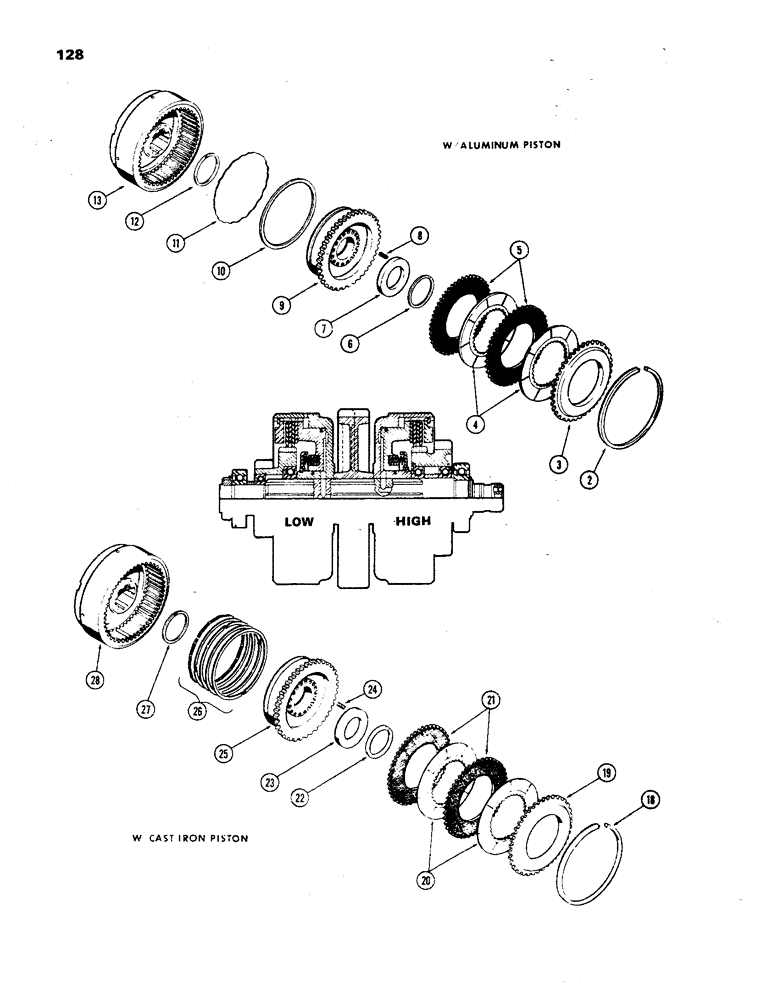

Схема запчастей Case 850 - (128) - CLUTCH, HIGH AND LOW SPEED, WITH ALUMINUM PISTON (03) - TRANSMISSION
27
5
10
19
8
25
12
28
18
3
22
11
20
13
24
4
7
9
21
6
26
2
23

Артикул

Название

Примечание

Количество

A50412

CLUTCH

ASSY., Includes: Ref. 2 - 13

4шт.

2

30785

RING

- snap, backing plate ret.

1шт.

3

A50030

PLATE

- backing, clutch (Replaces A50522)

1шт.

4

A50029

PLATE

DISC - clutch (sintered) (internal teeth)

2шт.

5

A50028

PLATE

DISC - clutch (steel) (external teeth)

2шт.

6

A27233

RING

- snap, spring retainer

1шт.

7

R11016

RETAINER

- clutch spring

1шт.

8

R11015

SPRING

- clutch

18шт.

9

A50571

PISTON

- clutch (Aluminum) (Replaces A50413)

1шт.

10

A50414

SEALING RING

RING - sealing, clutch piston

1шт.

11

A50416

SPRING

EXPANDER - piston ring

1шт.

12

A50415

SEAL

RING - sealing, clutch drum hub

1шт.

13

A50288

DRUM

- clutch

1шт.

A50287

X

CLUTCH ASSY. - (Order A50412), with cast iron piston, Includes: Ref. 18 - 28

4шт.

18

30785

RING

- snap, back plate retaining, with cast iron piston

1шт.

19

A50030

PLATE

- clutch backing (Replaces A50522), with cast iron piston

1шт.

20

A50029

PLATE

DISC - clutch (sintered) (internal teeth), with cast iron piston

2шт.

21

A50028

PLATE

DISC - clutch (steel) (external teeth), with cast iron piston

2шт.

22

A27233

RING

- snap, spring retainer, with cast iron piston

1шт.

23

R11016

RETAINER

- clutch spring, with cast iron piston

1шт.

24

R11015

SPRING

- clutch, with cast iron piston

18шт.

25

A50186

PISTON

- clutch (cast iron), with cast iron piston

1шт.

26

A50027

RING

KIT - (set of 4 rings & 1 expander), with cast iron piston

1шт.

27

A50025

SEAL

"O" RING - piston seal, with cast iron

1шт.

28

A50288

DRUM

- clutch, with cast iron piston

1шт.

Выбрано товаров: 25
