Запчасти Case 850 (126) - CLUTCH, FORWARD AND REVERSE, WITH ALUMINUM PISTON (03) - TRANSMISSION

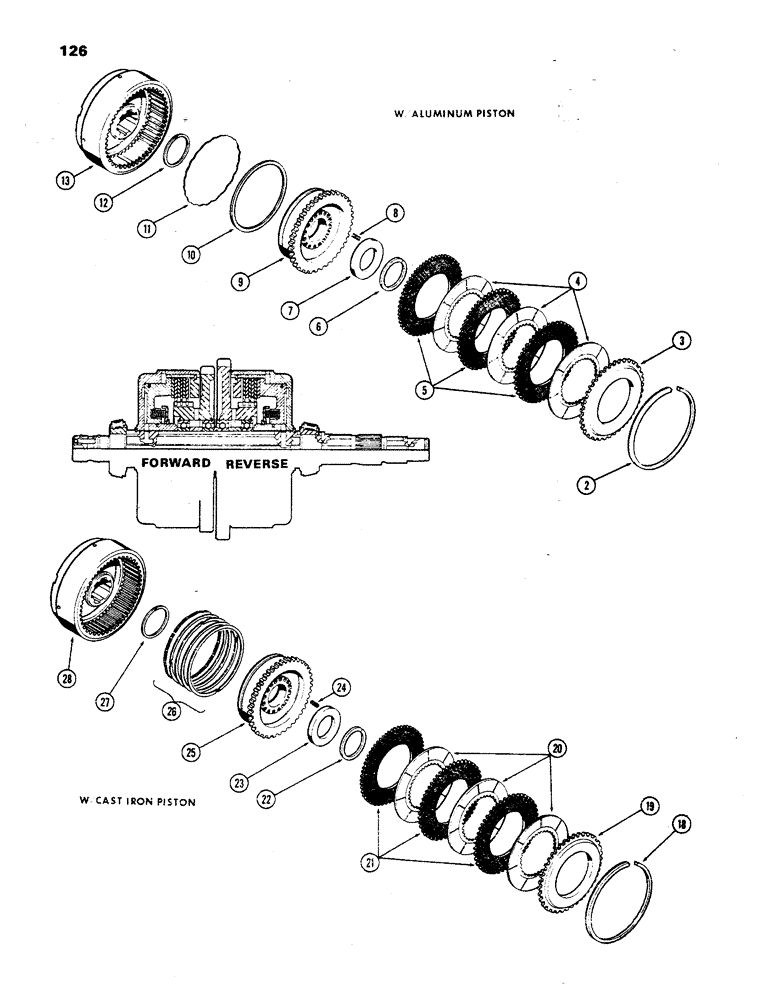

Схема запчастей Case 850 - (126) - CLUTCH, FORWARD AND REVERSE, WITH ALUMINUM PISTON (03) - TRANSMISSION
19
3
25
28
8
6
4
11
12
13
27
21
22
26
10
20
18
24
2
7
5
23
9

Артикул

Название

Примечание

Количество

A50411

CLUTCH

ASSY. - forward & reverse, Includes: Ref. 2 - 13

2шт.

2

30785

RING

- snap, backing plate retaining

1шт.

3

A50030

PLATE

- clutch backing (Replaces A50522)

1шт.

4

A50029

PLATE

DISC - clutch (sintered) (internal teeth)

3шт.

5

A50028

PLATE

DISC - clutch (steel) (external teeth)

3шт.

6

A27233

RING

- snap, spring retainer

1шт.

7

R11016

RETAINER

- clutch spring

1шт.

8

R11015

SPRING

- clutch

18шт.

9

A50571

PISTON

- clutch (Aluminum) (Replaces A50413)

1шт.

10

A50414

SEALING RING

RING - sealing, piston

1шт.

11

A50416

SPRING

EXPANDER - piston ring

1шт.

12

A50415

SEAL

RING - sealing, drum hub

1шт.

13

A50290

DRUM

- clutch

1шт.

A50289

CLUTCH ASSY. - (Order A50411), with cast iron piston, Includes: Ref. 18 - 28

2шт.

18

30785

RING

- snap, backing plate retaining, with cast iron piston

1шт.

19

A50030

PLATE

- clutch backing (Replaces A50522), with cast iron piston

1шт.

20

A50029

PLATE

DISC - clutch (sintered) (internal teeth), with cast iron piston

3шт.

21

A50028

PLATE

DISC - clutch (steel) (external teeth), with cast iron piston

3шт.

22

A27233

RING

- snap, spring retainer, with cast iron piston

1шт.

23

R11016

RETAINER

- clutch spring, with cast iron piston

1шт.

24

R11015

SPRING

- clutch, with cast iron piston

18шт.

25

A50186

PISTON

- clutch (cast iron), with cast iron

1шт.

26

A50027

RING

KIT - piston (set of 4 rings & 1 expander), with cast iron

1шт.

27

A50025

SEAL

"O" RING - piston seal, with cast iron

1шт.

28

A50290

DRUM

- clutch, with cast iron piston

1шт.

Выбрано товаров: 25
