Запчасти Case 850 (122) - HIGH-LOW CLUTCH SHAFT, USED PRIOR TO TRANS S/N 2697154, 1ST USED TRAC S/N 7074053- RH WITH WIDE GEAR (03) - TRANSMISSION

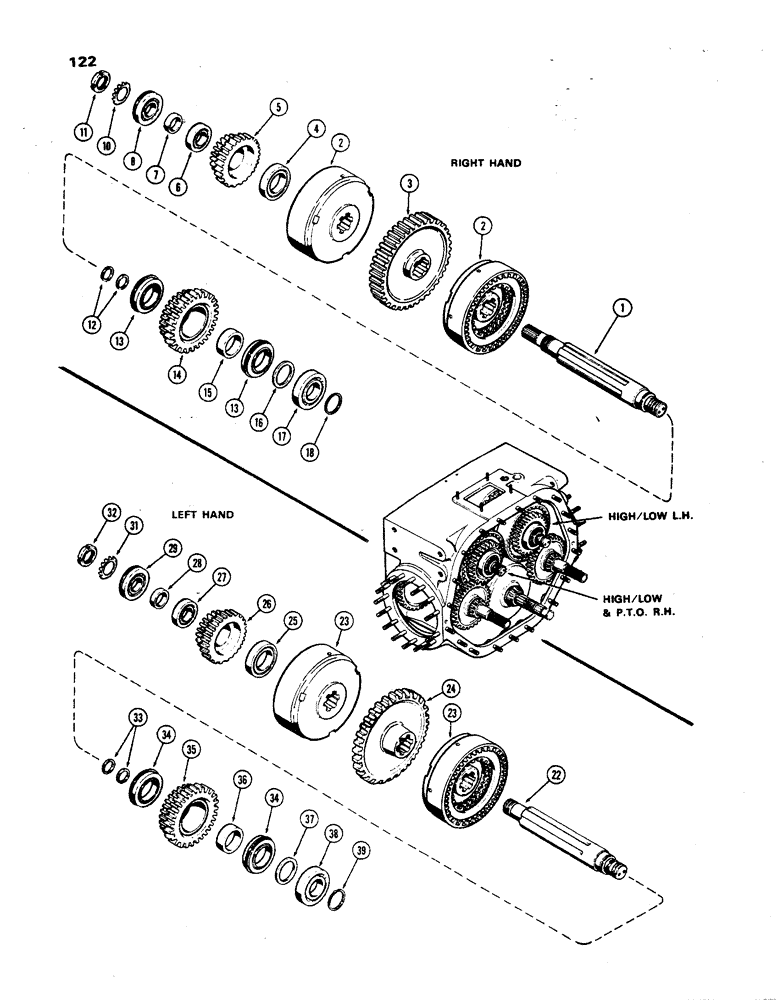

Схема запчастей Case 850 - (122) - HIGH-LOW CLUTCH SHAFT, USED PRIOR TO TRANS S/N 2697154, 1ST USED TRAC S/N 7074053- RH WITH WIDE GEAR (03) - TRANSMISSION
8
37
25
1
4
26
18
12
16
5
32
28
7
31
13
34
6
15
23
22
11
2
10
14
33
34
39
2
36
13
24
29
27
23
35
17
38
3

Артикул

Название

Примечание

Количество

1

A50520

SHAFT

ASSY. - high-low clutch & P.T.O.

1шт.

2

A50412

CLUTCH

ASSY. - high-low (Aluminum) (See figure 126)

2шт.

2

A50287

X

CLUTCH ASSY. - high-low (cast iron) (See figure 126)

2шт.

3

NLS

NO LONGER SERVICED

- driver (51 teeth) (1-1/2" tooth width)

1шт.

4

G10418

BEARING, BALL

BEARING - ball, low clutch gear, inner (2 x 3-1/8 x 5/8") (Replaces A50461)

1шт.

5

A50574

SHAFT

GEAR - driver, low clutch (20 & 29 teeth) (Replaces A50476)

1шт.

6

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch driver gear, outer (1-3/8 x 2-7/16 x 9/16") (Replaces A50463)

1шт.

7

A50036

RING

SPACER - bearing, low clutch driver gear (1-3/8 x 1-5/8 x 7/16")

1шт.

8

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSY. - clutch shaft, rear (Replaces A50037)

1шт.

10

192-307

LOCK WASHER,Type W-07

WASHER - lock, rear bearing

1шт.

11

A50038

LOCK NUT

NUT - lock, shaft bearing

1шт.

12

A50039

SEAL

RING - seal, clutch shaft oil collector

2шт.

13

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - high clutch gear (Replaces A50464)

1шт.

14

A50509

GEAR WHEEL

GEAR - high clutch (29 & 32 teeth)

1шт.

15

A50035

BUSHING

SPACER - brg., high clutch gear (2 x 2-3/8 x 1/8")

1шт.

16

A50034

SPACER

- brg., clutch shaft, front (2 x 2-3/8 x 1/8")

1шт.

17

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, clutch shaft, front (1-3/4 x 3-3/8 x 3/4")

1шт.

18

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, front bearing retaining

1шт.

22

A50521

SHAFT

ASSY. - high-low clutch, left hand with narrow gear

1шт.

23

A50412

CLUTCH

ASSY. - high-low (aluminum) (See figure 126), left hand with narrow gear

2шт.

23

A50287

X

CLUTCH ASSY. - high-low (cast iron) (See figure 126), left hand with narrow gear

2шт.

24

A50511

GEAR

- driver (51 teeth) (11/16" tooth width), left hand with narrow

1шт.

25

G10418

BEARING, BALL

BEARING - ball, low clutch gear, inner (2 x 3-1/8 x 5/8") (Replaces A50461), left hand with narrow

1шт.

26

A50574

SHAFT

GEAR - driver, low clutch (20 & 29 teeth) (Replaces A50476), left hand with narrow

1шт.

27

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch gear, outer (1-3/8 x 2-7/16 x 9/16") (Replaces A50463), left hand with narrow

1шт.

28

A50036

RING

SPACER - bearing, low clutch driver gear (1-3/8 x 1-5/8 x 7/16"), left hand with narrow

1шт.

29

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSY. - clutch shaft, rear (Replaces A50037), left hand with narrow hear

1шт.

31

192-307

LOCK WASHER,Type W-07

WASHER - lock, rear bearing, left hand with narrow gear

1шт.

32

A50038

LOCK NUT

NUT - lock, shaft bearings, left hand with narrow gear

1шт.

33

A50039

SEAL

RING - seal, clutch shaft oil collector, left hand with narrow gear

2шт.

34

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSY. - high clutch gear (Replaces A50464), left hand with narrow

1шт.

35

A50509

GEAR WHEEL

GEAR - high clutch (29 & 32 teeth), left hand with narrow

1шт.

36

A50035

BUSHING

SPACER - brg., high clutch gear (2 x 2-3/8 x 3/4"), left hand with narrow

1шт.

37

A50034

SPACER

- brg., clutch shaft, front (2 x 2-3/8 x 1/8"), left hand with narrow gear

1шт.

38

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, clutch shaft, front (1-3/4 x 3-3/8 x 3/4"), left hand with narrow gear

1шт.

39

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, front bearing retaining, left hand with narrow gear

1шт.

Выбрано товаров: 36
