Запчасти Case 850 (108) - D49432 AND R30678 TORQUE CONVERTER PUMPS, USED ON R26076 & R26075 TORQUE CONVERTERS (03) - TRANSMISSION

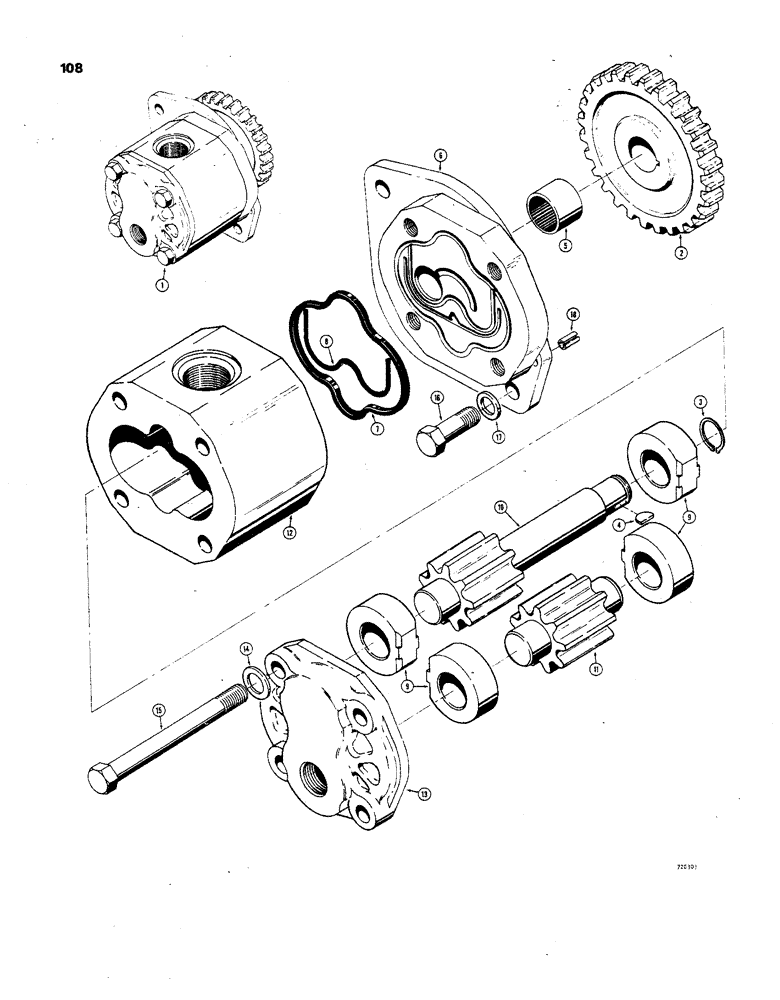

Схема запчастей Case 850 - (108) - D49432 AND R30678 TORQUE CONVERTER PUMPS, USED ON R26076 & R26075 TORQUE CONVERTERS (03) - TRANSMISSION
1
14
13
9
10
12
17
16
11
8
7
5
6
2
9
3
4
18
15

Артикул

Название

Примечание

Количество

1

D49432

PUMP, HYDRAULIC

PUMP - hydraulic, torque converter charging (Warner Motive #P2-12EZ-5-5R-01) Use R30678 pump, Includes: Ref. 2 - 20

1шт.

1

R30678

PUMP

- hydraulic, torque converter charging (Warner Motive #P2-12EZ5-5-R-03), Includes: Ref. 2 - 20

1шт.

2

D32020

GEAR

- pump drive

1шт.

3

D32101

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

4

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

1шт.

5

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

1шт.

6

R30679

COVER

- shaft end (R30678 pump)

1шт.

6

D49432

PUMP, HYDRAULIC

COVER - shaft end (D49432 pump)

1шт.

7

D53279

SEAL

- square type

2шт.

8

D53280

SEAL

- "O" ring type

2шт.

9

D52937

BALL BEARING,0.7505" ID x 1.5385" OD x 0.5795"

BEARING - gear

4шт.

D52936

GEAR

SET - drive and driven, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

12

D52933

HOUSING

- gear

1шт.

13

D52935

COVER

- port end

1шт.

14

195-2028

WASHER,.391" x 5/8" x .065"

- plain, 3/8"

4шт.

15

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

4шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

17

D32117

COPPER WASHER

WASHER, COPPER, Special

2шт.

18

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

2шт.

19

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male (Not shown), Incl. Ref. 20 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

Выбрано товаров: 23
