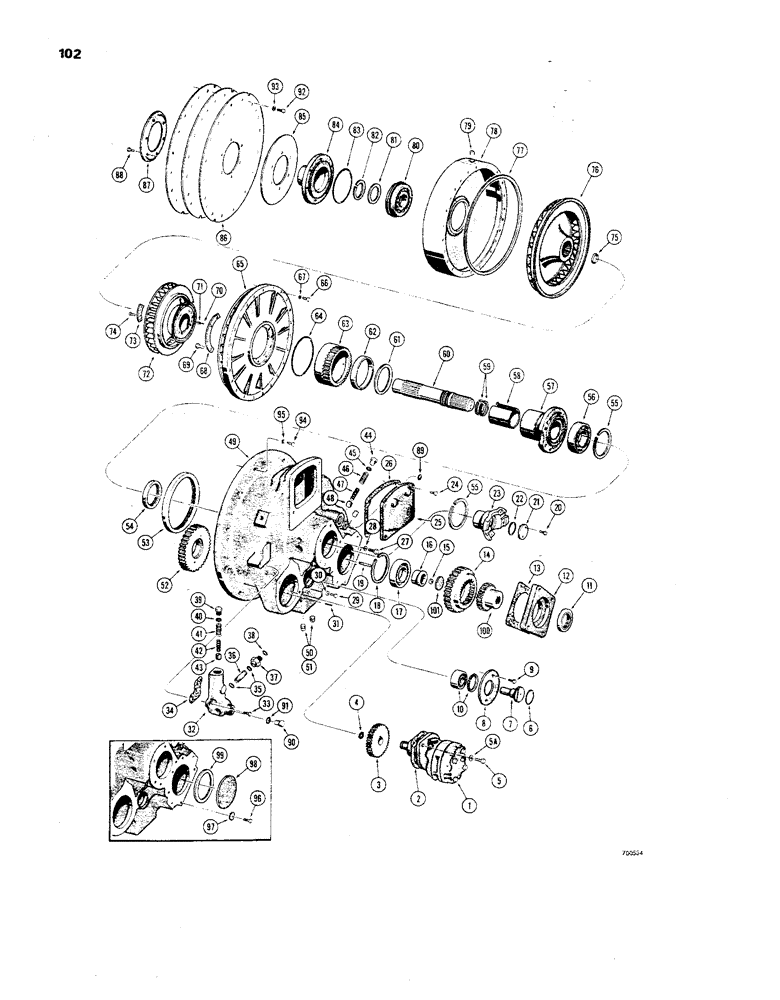

Запчасти Case 850 (102) - TORQUE CONVERTER (03) - TRANSMISSION

D45351

SPARE PART

TORQUE CONVERTER - dozer models, Service with R26076 converter and D15885 pump kit, Includes: Ref. 1 - 101, Serial Range: -7074666

1шт.

R26076

CONVEYOR ASSY.

TORQUE CONVERTER - dozer models , Includes: Ref. 1 - 101, Start Serial: 7074666

1шт.

D48225

CONVERTER

TORQUE CONVERTER - loader models Service with R26075 converter and D15885 pump kit, Includes: Ref. 1 - 101, Serial Range: -7074666

1шт.

R26075

CONVERTER

TORQUE CONVERTER - loader models, Includes: Ref. 1 - 101, Start Serial: 7074666

1шт.

1

REF

INSTRUCTION

PUMP - charging, R26076 and R26075 converters (Not part of converters ) Parts list figure 108

1шт.

1

D44094

PUMP

- charging, D45351 and D48225 converters (Parts list figure 106)

1шт.

2

D32000

GASKET

- pump

1шт.

3

D32020

GEAR

- driven, D45351 and D48225 converter

1шт.

4

D32101

SNAP RING,#62, Ext

Ring, Snap, , D45351 and D48225 converter #62, Ext

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(D45351 and D48225 converters) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

5a

D32117

COPPER WASHER

WASHER, COPPER, Special

2шт.

6

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring

1шт.

7

D32029

SHAFT

- idler gear

1шт.

8

D32019

PLATE

- retaining

1шт.

9

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

10

D32106

BALL BEARING,0.787" ID x 1.8504" OD x 0.8125"

BEARING - ball

1шт.

11

D51517

SEAL,50.8mm ID x 76.2mm OD x 13.11mm Thk

- oil

1шт.

12

D31938

CARRIER

- oil seal

1шт.

13

D32004

GASKET

- carrier

1шт.

14

D32003

GEAR

- driven

1шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

1шт.

16

D32032

BEARING,1.3782" OD x 1.03

RETAINER - bearing

1шт.

17

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING - ball

1шт.

18

D32069

RING

- snap

1шт.

19

D32067

STUD

- special

1шт.

20

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

21

D32018

PLATE

- yoke retaining

1шт.

22

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O" ring

1шт.

23

D31315

YOKE

- driveshaft

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

25

D32009

COVER ASSY

PLATE - cover

1шт.

26

D32005

GASKET

- cover

1шт.

27

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

6шт.

28

D32117

COPPER WASHER

WASHER, COPPER, Special

6шт.

29

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

30

D32118

WASHER

- idler gear shaft

1шт.

31

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, (D45351 and D48225 converters) 3/16" x 1/2", Slotted

1шт.

32

D37378

HOUSING

BODY - relief valve

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

34

D32002

GASKET

- valve

1шт.

35

D32114

O-RING,0.75" ID x 0.875" OD

SEAL - "O" ring

2шт.

36

D32024

TUBE

- relief valve

1шт.

37

D37379

CONNECTOR, ELEC

CONNECTOR - straight

1шт.

38

D37371

OIL SEAL

- "O" ring

1шт.

39

D32013

PLUG

- relief valve

1шт.

40

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

GASKET - plug

1шт.

41

D32023

SPRING

- outer

1шт.

42

D32022

SPRING

- inner

1шт.

43

D32014

PISTON

- relief valve

1шт.

44

D32013

PLUG

- relief valve

1шт.

45

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

GASKET - plug

1шт.

46

D32031

SPRING

- outer

1шт.

47

D32021

SPRING

- inner

1шт.

48

D32014

PISTON

- relief valve

1шт.

49

D37380

HOUSING

- converter

1шт.

50

273916

PLUG,Hex, 1-5/16" - 12 ORB

Housing, Includes Ref. 51 Hex Hd, 1 5/16"-12 ORB

3шт.

51

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

3шт.

52

D32001

GEAR

- idler

1шт.

53

D32109

SEAL,133.35mm ID x 165.35mm OD x 13.74mm Thk

- oil

1шт.

54

D51518

OIL SEAL,57.15mm ID x 82.75mm OD x 13.11mm Thk

- oil

1шт.

55

D32070

RING

- snap

2шт.

56

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball

1шт.

57

D31937

CARRIER

- guide

1шт.

58

D32027

SLEEVE

- split

1шт.

59

A20229

RING

- piston

2шт.

60

D32026

SHAFT

- output

1шт.

61

D32034

RING

- piston

1шт.

D38207

GEAR

ASSEMBLY - pump drive, Includes: Ref. 62 and 63

1шт.

62

D32068

BUSHING

- steel backed bronze

1шт.

63

NSS

NOT SOLD SEPARAT

GEAR - pump drive

1шт.

64

R12802

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

65

D31934

IMPELLER

- D45351 and R26076 converters

1шт.

65

D48856

IMPELLER

- D48225 and R26075 converters

1шт.

66

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

24шт.

67

A40877

WASHER

- special

24шт.

68

D32016

PLATE

- clamp

2шт.

69

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

8шт.

70

138-108

LOCK PIN,7/32" x 5/8", Slotted

4шт.

71

138-221

LOCK PIN,3/8" x 5/8", Slotted

4шт.

72

D31936

GUIDE

WHEEL - converter

1шт.

73

D32010

PLATE

- clamp

2шт.

74

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW - Fillister head, 5/16" - 18 NC x 1"

6шт.

75

A22889

RING

- snap

1шт.

76

D31935

TURBINE

- converter

1шт.

77

D31998

GASKET

- ring

1шт.

78

D32007

HOUSING

- rotating

1шт.

79

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hex. socket head (1/8" NPT)

2шт.

80

D32105

BEARING

- ball

1шт.

81

D32030

BALL BEARING,1.585" ID x 1.94" OD x 0.114"

SPACER - bearing

1шт.

82

A26946

RING

- snap

1шт.

83

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

84

D32015

WHEEL

PILOT - flywheel

1шт.

85

D32025

SHIM

- flex plate

1шт.

86

D32017

PLATE

FLEX PLATE - converter

3шт.

87

D32028

WASHER

- support

1шт.

88

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

89

D38602

O-RING,50 mm ID

SEAL - "O" ring

1шт.

90

76349

PLUG,9/16" - 18 ORB

Relief valve, Incl. Ref. 91 - 101 Hex Hd, 9/16"-18 ORB

1шт.

91

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

92

R14979

SCREW

BOLT - self-locking

16шт.

93

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- drive plate

16шт.

94

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

95

92-6

LOCK WASHER,3/8"

12шт.

96

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

97

B15606

WASHER

- special

4шт.

98

D37801

COVER ASSY

COVER - converter, Drawbar Models only

1шт.

99

D37799

GASKET

- cover

1шт.

D37030

HUB

- equipment pump drive, Includes: Ref. 100 and 101

1шт.

100

NSS

NOT SOLD SEPARAT

HUB - drive

1шт.

101

41-24

PLUG

- expansion (1-1/2" dia.)

1шт.
