Запчасти Case 850 (096) - DECLUTCH LOCKOUT (03) - TRANSMISSION

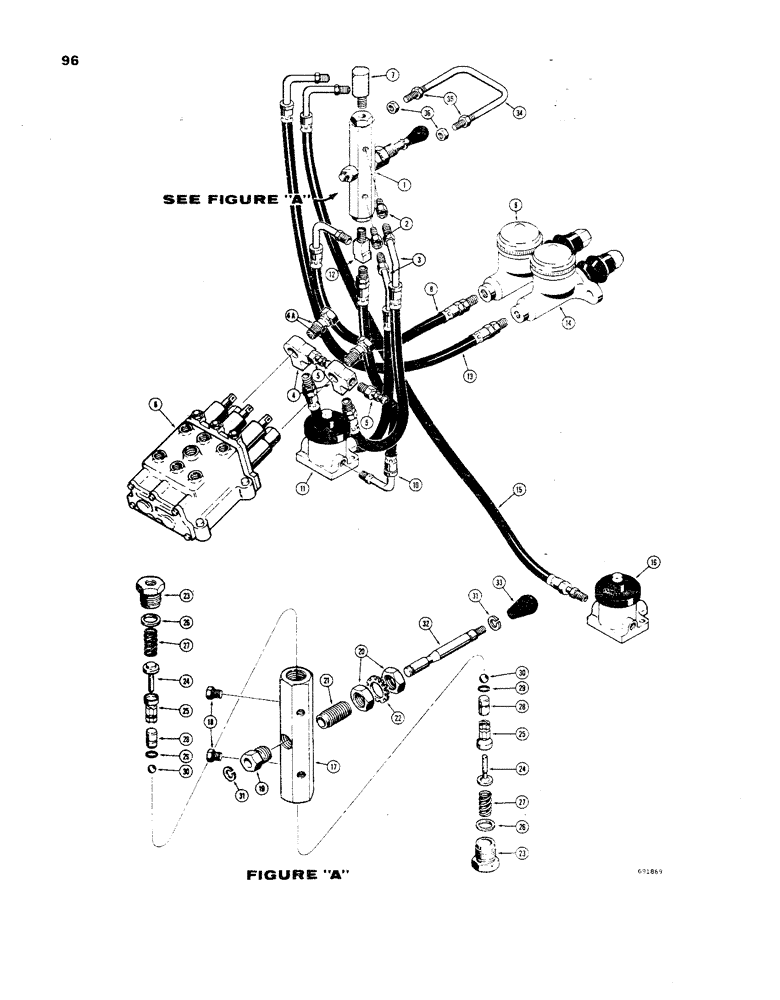

Схема запчастей Case 850 - (096) - DECLUTCH LOCKOUT (03) - TRANSMISSION
34
30
6
31
25
26
25
31
28
29
5
5
27
2
15
32
15
28
35
13
7
24
4a
12
8
24
29
14
21
23
33
30
9
17
11
27
1
10
19
4
36
3
20
22
23
26
18

Артикул

Название

Примечание

Количество

1

D49105

VALVE

- lockout, clutch (Parts list below)

1шт.

2

222-1011

HYD CONNECTOR,3/8"-24 Inv Fl x 1/8" NPT

CONNECTOR - straight, male

2шт.

3

D45396

HOSE,3.17mm ID x 419.1mm L

- brakes, transmission valve (16-1/2" long)

2шт.

4

D49251

FITTING

- special

2шт.

4a

A12864

BOLT

- special

2шт.

5

D46258

PLUG

- bleeder

2шт.

6

REF

INSTRUCTION

VALVE - transmission (Parts list Figure 140)

1шт.

7

222-1070

TEE,3/8"-24 Inv Fl x 1/8" NPT Br

ELBOW - double

1шт.

8

D45396

HOSE,3.17mm ID x 419.1mm L

- to L.H. master cylinder (16-1/4" long)

1шт.

9

REF

INSTRUCTION

CYLINDER - L.H., brake (Parts list figure 98)

1шт.

10

A50326

HOSE

- to L.H. slave cylinder (16-1/2" long)

1шт.

11

REF

INSTRUCTION

CYLINDER - slave, L.H. brake (Parts list figure 130)

1шт.

12

222-1075

TEE,3/8"-24 Inv Fl x 1/8" NPT Br

- male

1шт.

13

D39836

HOSE,3.17mm ID x 609.6mm L

- to R.H. master cylinder (24" long)

1шт.

14

REF

INSTRUCTION

CYLINDER - master, R.H. brake (Parts list figure 98)

1шт.

15

D49252

HOSE

- to R.H. slave cylinder (30" long)

1шт.

16

REF

INSTRUCTION

CYLINDER - slave, R.H. brake (Parts list figure 130)

1шт.

D49105

VALVE

- lockout, declutch, Includes: Ref. 18 - 33

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

18

221-1849

PLUG

- pipe, sq. socket head

2шт.

19

D50018

PLUG

- push rod guide

1шт.

20

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex. (5/8" - 11 NC) Zinc plated

2шт.

21

D50017

ADAPTER

- special, push rod

1шт.

22

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8", Star

1шт.

23

A16672

PLUG

- special, end

2шт.

R29966

KIT

- repair, valve, Includes: Ref. 24 - 33

1шт.

24

NSS

NOT SOLD SEPARAT

STEM - valve

2шт.

25

NSS

NOT SOLD SEPARAT

VALVE

2шт.

26

D46277

GASKET

- end plug

2шт.

27

A16674

SPRING

- valve

2шт.

28

D50014

PISTON ASSY.

PISTON ASSEMBLY - valve, Includes: Ref. 29

2шт.

29

A16679

O-RING

SEAL - "O" ring

1шт.

30

211-100

BALL,3/8" Dia, Stainless

- valve

2шт.

31

D50016

RING, SNAP

RING - retaining

2шт.

32

D50013

PUSH ROD

ROD ASSEMBLY - push, Includes: Ref. 33

1шт.

33

D50015

KNOB

- push rod

1шт.

D49115

GUARD

ASSEMBLY - valve, Includes: Ref. 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

BAR - valve handle guard

1шт.

35

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

2шт.

36

131-352

LOCK NUT,3/8"-16, GA

NUT - hex., lock (3/8" - 16 NC)

2шт.

Выбрано товаров: 40
