Запчасти Case 850 (092) - TRANSMISSION CONTROL TOWER, USED BEFORE TRACTOR SN. 7075103 (03) - TRANSMISSION

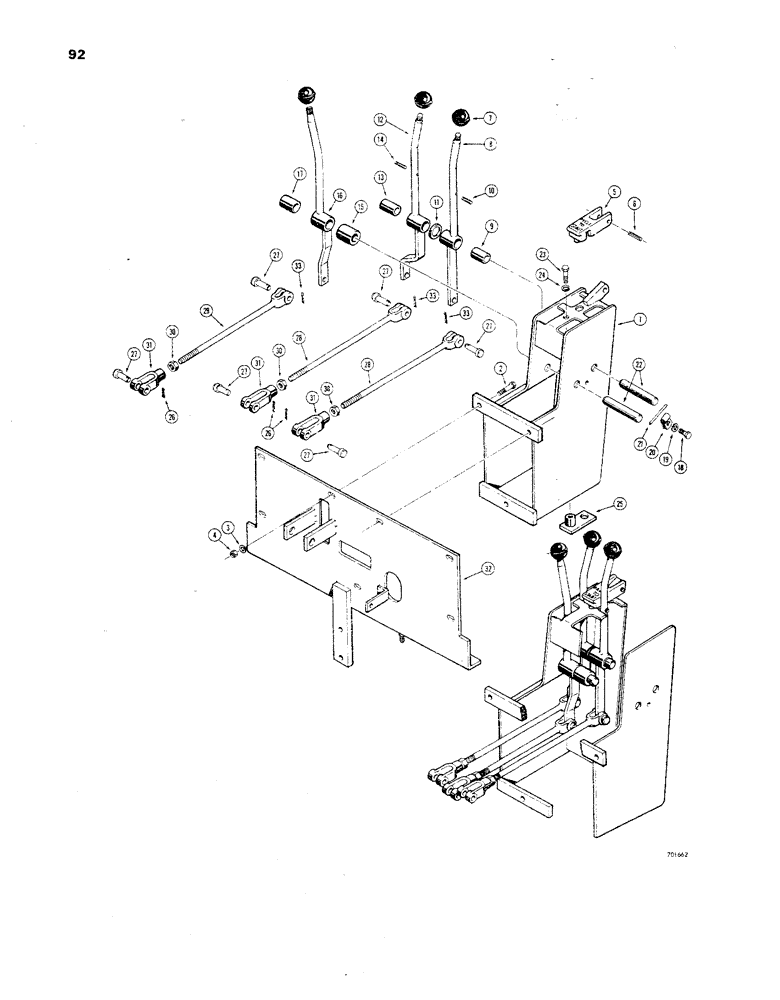

Схема запчастей Case 850 - (092) - TRANSMISSION CONTROL TOWER, USED BEFORE TRACTOR SN. 7075103 (03) - TRANSMISSION
20
7
25
27
30
24
33
30
1
21
33
33
2
16
27
31
4
12
27
9
31
30
23
31
6
10
29
26
11
27
13
22
27
17
14
27
15
8
32
28
5
26
18
19
28
3

Артикул

Название

Примечание

Количество

1

D35812

TOWER - transmission control

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

5

R30091

LOCK

- lever, safety

1шт.

6

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

7

70213

KNOB

- D39825, D39829 and D39831 levers (3/8" - 24 NF)

3шт.

7

D49996

KNOB

- D50244, D50245 and D50248 levers (1/2" - 20 NF)

3шт.

8

D39825

LEVER

- control, R.H. track speed (3/8" - 24 NF), Includes: Ref. 9

1шт.

8

D50244

LEVER

- control, R.H. track speed (1/2" - 20 NF), Includes: Ref. 9

1шт.

9

D40391

BUSHING

- lever (D39825 and D50244)

1шт.

10

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

11

195-41

WASHER,5/8"

- plain () 5/8"

1шт.

12

D39829

LEVER

- control, L.H. track speed (3/8" - 24 NF), Includes: Ref. 13

1шт.

12

D50245

LEVER

- control, L.H. track speed (1/2" - 20 NF), Includes: Ref. 13

1шт.

13

D40391

BUSHING

- lever

1шт.

14

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

15

D30302

SPACER - lever

1шт.

16

D39831

X

LEVER - control, track forward or reverse (3/8" - 24 NF), Includes: Ref. 17

1шт.

16

D50248

LEVER

- control, track forward or reverse (1/2" - 20 NF), Includes: Ref. 17

1шт.

17

D40391

BUSHING

- lever

1шт.

18

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2"

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- roll pin

1шт.

21

138-106

LOCK PIN,3/16" x 2 1/2", Slotted

PIN, 3/16" x 2 1/2", Slotted

1шт.

22

D35780

SHAFT

- control levers

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

24

92-6

LOCK WASHER,3/8"

1шт.

25

D34923

BRACKET

- push button starter switch

1шт.

26

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

27

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Rod end 5/16" x .940"

6шт.

28

D39833

ROD

- control, track speed

2шт.

29

D39834

ROD

- control, track forward or reverse

1шт.

30

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

3шт.

31

D35772

YOKE

- rod end

3шт.

32

D52290

PLATE - heel (Power Angle Tilt Pitch Dozer)

1шт.

32

D39670

PLATE - heel (All models except Power Angle Tilt Pitch Dozer)

1шт.

33

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

Выбрано товаров: 38
