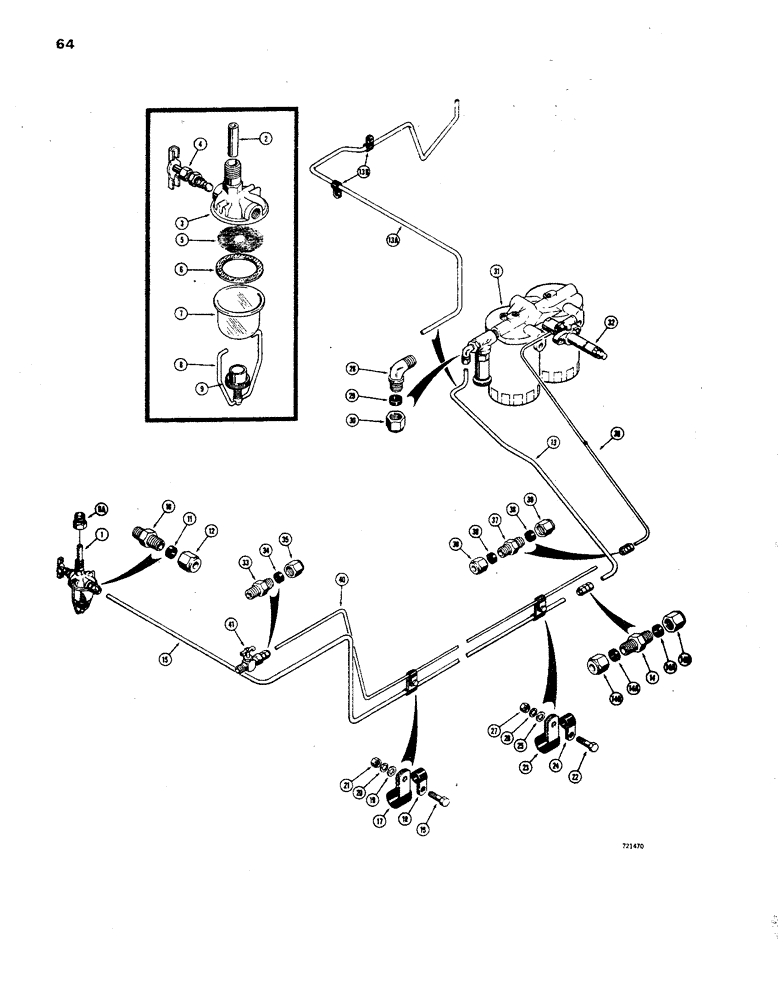

Запчасти Case 850 (064) - FUEL LINES AND STRAINER (02) - FUEL SYSTEM

1

R25288

STRAINER ELEMENT

STRAINER ASSEMBLY - bowl type, Includes: Ref. 2 - 9

1шт.

2

R25287

TUBE,0.375" OD x 2.12" L

- strainer, extensions

1шт.

A30049

STRAINER ELEMENT

STRAINER - bowl type, Includes: Ref. 3 - 9

1шт.

3

A11214

HEAD

COVER - strainer

1шт.

4

A11200

COCK

VALVE - shut-off

1шт.

5

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

6

A11208

GASKET

- bowl

1шт.

7

86982913

BOWL

- strainer, metal (If used)

1шт.

A11209

BOWL

- strainer, glass (If used)

1шт.

8

A11212

BAIL

- bowl

1шт.

9

A11210

ADJUSTER

NUT - special, bail

1шт.

9a

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer (Used Sn. 7074553 and after )

1шт.

10

222-26

HYD CONNECTOR,5/8"-24 x 1/8" NPTF W/Nut

CONNECTOR - male, flex tube (3/8" tube), Includes: Ref. 11 and 12

1шт.

11

222-104

SLEEVE,3/8" Tube

- connector

1шт.

12

222-114

NUT,5/8"-24

NUT - connector

1шт.

13

D50768

TUBE

- tank to filter, front (Used before tractor sn. 7074064)

1шт.

For units having one piece fuel line D47738, order D50768 tube, 222-3 union and D50771 tube

1шт.

13a

D52664

TUBE - tank to filter, front (Used on tractor sn. 7074064 and after)

1шт.

13b

49845

CLAMP

- D52664 tube

2шт.

222-3

FITTING,1/2"-24 Flex Tube

UNION - flex tube, Includes: Ref. 14 - 14B

1шт.

14

NSS

NOT SOLD SEPARAT

UNION - flex tube

1шт.

14a

222-102

SLEEVE,1/4" Tube

Union 1/4" Tube

2шт.

14b

87017024

TUBE NUT,1/2"-24

NUT - union

2шт.

15

D50771

TUBE

- tank to filter, rear

1шт.

For units having one piece fuel line D47738, order D50768 tube, 222-3 union and D50771 tube

1шт.

16

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

17

49839

CLAMP

- tube, lower

1шт.

18

51200321

CLAMP

- tube, upper

1шт.

19

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

20

92-8

LOCK WASHER,1/2"

1шт.

21

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

22

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

23

49839

CLAMP

- tube, lower

1шт.

24

49769

HUB

- tube, upper

1шт.

25

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

26

92-8

LOCK WASHER,1/2"

1шт.

27

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

28

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- male, flex tube (3/8" tube), Includes: Ref. 29 and 30

1шт.

29

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

30

222-114

NUT,5/8"-24

NUT - elbow

1шт.

31

REF

INSTRUCTION

FILTER ASSEMBLY - fuel, primary (1st and 2nd stage) Parts figures 44 and 46

1шт.

32

REF

INSTRUCTION

FUEL INJECTOR - engine, no. 4 cylinder (Parts list figure 50)

1шт.

33

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - male, flex tube (1/4" tube), Includes: Ref. 34 and 35

1шт.

34

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

35

222-102

SLEEVE,1/4" Tube

NUT - connector

1шт.

36

D50770

TUBE

- fuel injector to tank, front

1шт.

For units having one piece fuel line D47737, order D50770 tube, 222-5, union and 50769 tube

1шт.

222-5

FITTING,5/8"-24 Flex Tube

UNION - flex tube, Includes: Ref. 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

UNION - flex tube

1шт.

38

222-104

SLEEVE,3/8" Tube

- union

2шт.

39

222-114

NUT,5/8"-24

NUT - union

2шт.

40

D50769

TUBE - fuel injector to tank rear

1шт.

For units having one piece fuel line D47737, order D50770 tube, 222-5, union and 50769 tube

1шт.

41

217-94

SHUT-OFF VALVE

VALVE - fuel shut off (1/4" NPT)

1шт.
