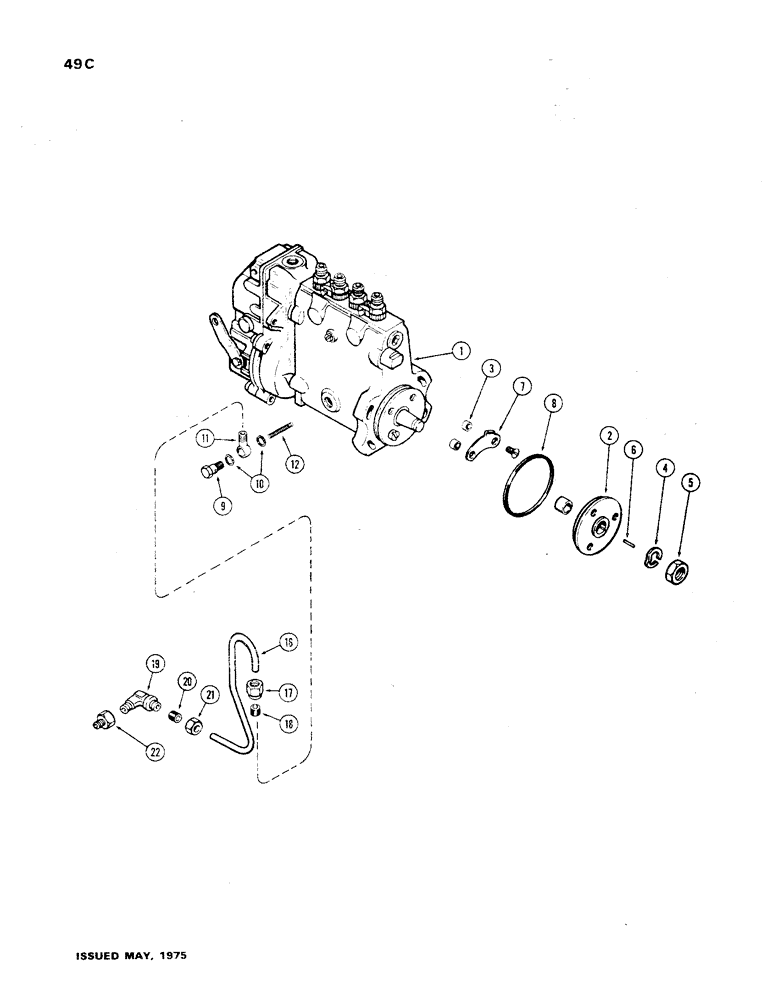

Запчасти Case 850 (049C) - A60522 & A60632 INJECTION PUMPS, (301 BD) DIESEL ENGINE (02) - FUEL SYSTEM

1

A60632

PUMP

ASSY. - fuel injection (2000 RPM) (loader models) (Used prior to eng. ser. no. 2319862), Includes: Ref. 2 - 12

1шт.

1

A60522

PUMP ASSY. - fuel injection (1950 RPM) (Dozer Models) (Used prior to eng. ser. no. 2319862), Includes: Ref. 2 - 12

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - pump mounting (3 x 3-1/4 x 1/8")

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube, Serial Range: fitting-pump

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

16

A59226

TUBE

- oil gallery to injection pump

1шт.

17

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.

18

222-102

SLEEVE,1/4" Tube

1шт.

19

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - oil tube (in block), Includes: Ref. 20 and 21

1шт.

20

222-104

SLEEVE,3/8" Tube

- (for 1/4" tube)

1шт.

21

222-114

NUT,5/8"-24

NUT - (for 1/4" tube)

1шт.

22

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer (1/4" P.T. to 3/8" P.T.)

1шт.
