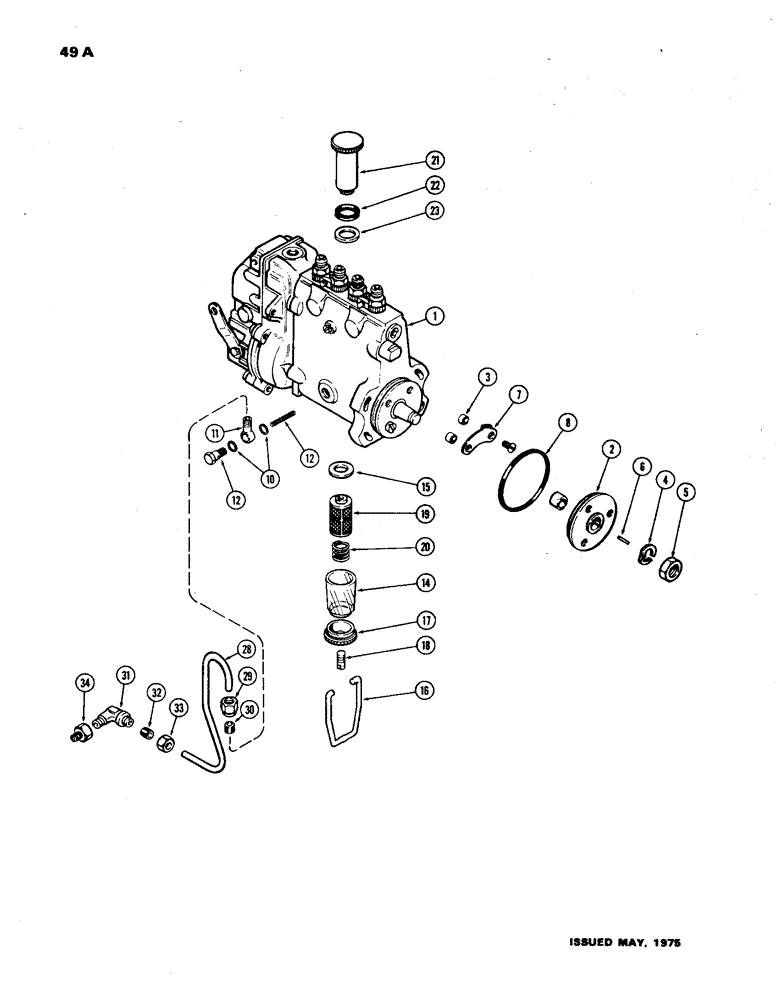

Запчасти Case 850 (049A) - A62337 AND A62338 INJECTION PUMPS, (301 BD) DIESEL ENGINE, W/ LUBE TUBE ON ENGINE SIDE OF PUMP (02) - FUEL SYSTEM

1

A62337

PUMP

ASSY. - fuel injection (2000 RPM) (Loader Models) (1st used eng. ser. no. 2319862), Includes: Ref. 2 - 23

1шт.

1

A62338

FUEL INJECTION PUMP

PUMP ASSY. - fuel injection (1950 RPM) (Dozer Models) (1st used eng. ser. no. 2319862), Includes: Ref. 2 - 23

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - timing pointer

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - sealing (3 x 3-1/4 x 1/8")

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube, Serial Range: fitting-pump

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

14

A43347

BOWL

- filter (glass)

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl hanger

1шт.

17

A43348

NUT

BAILNUT - retaining

1шт.

18

A43349

STUD

- bailnut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43343

CARTRIDGE

PRIMER ASSY. - fuel, hand pump, Includes: Ref. 22

1шт.

22

A44761

GASKET

- hand pump

1шт.

23

A43351

SEAL

- primer & port, copper gasket

2шт.

28

A59226

TUBE

- oil gallery to injection pump

1шт.

29

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.

30

222-102

SLEEVE,1/4" Tube

1шт.

31

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - oil tube (in block), Includes: Ref. 32 and 33

1шт.

32

222-104

SLEEVE,3/8" Tube

- (for 1/4" tube)

1шт.

33

222-114

NUT,5/8"-24

NUT - for 1/4" tube

1шт.

34

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer (1/4" P.T. to 3/8 P.T.)

1шт.
