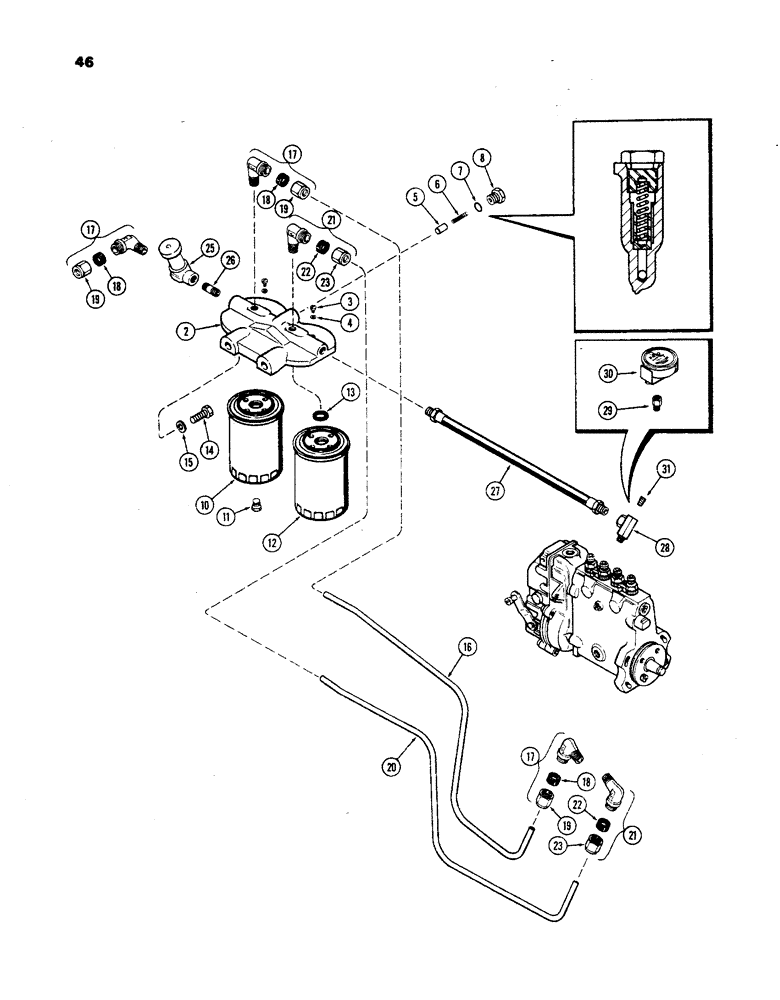

Запчасти Case 850 (046) - FUEL INJECTION FILTER SYSTEM, (301B) DIESEL ENGINE, USED PRIOR TO ENG. S/N 2319862 (02) - FUEL SYSTEM

A58719

FILTER

ASSY. - 1st & 2nd stage, Includes: Ref. 2 - 8

1шт.

2

A58711

FILTER

HEAD - filter mounting

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed

2шт.

4

A20662

GASKET

WASHER - bleed screw

2шт.

5

A24917

PLUNGER

- relief valve

1шт.

6

A24918

SPRING

- relief valve

1шт.

7

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - plug (1/2 x 11/16 x 3/32")

1шт.

8

A24916

PLUG

- relief valve

1шт.

A41745

KIT

ELEMENT KIT - filter replacement, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - 1st stage (Order A41745), Includes: Ref. 11

1шт.

11

221-1661

PLUG

- (1/8" P.T. hex. hd.)

1шт.

12

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage (Order A41745), Includes: Ref. 13

1шт.

13

A42315

GASKET

-, Serial Range: filter-head

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

A58772

TUBE

- 1st stage to pump (3/8" O.D.)

1шт.

17

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line (3/8" tube x 1/4" P.T.), Includes: Ref. 18 and 19

3шт.

18

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

19

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

20

A58773

TUBE

- pump to 2nd stage filter (5/16" O.D.)

1шт.

21

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - fuel line (5/16" tube x 1/4" P.T.), Includes: Ref. 22 and 23

2шт.

22

222-103

SLEEVE,5/16" Tube

1шт.

23

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

25

A60042

PUMP

- hand primer

1шт.

25

A60042R

REMAN-FUEL LIFT PUMP

Hand Primer

1шт.

25

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

26

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - (1/4" P.T. X 1" long)

1шт.

27

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- filter head to pump (10" long)

1шт.

28

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

29

A28061

FITTING

SNUBBER - fuel gauge (See ref. 31)

1шт.

30

A8101

GAUGE

- fuel oil pressure (See ref. 31)

1шт.

31

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" P.T. square head) (Replaces A28061 & A8101 this application only)

1шт.
