(042) - FUEL INJECTION SYSTEM, (301 BD) DIESEL ENGINE

Запчасти Case 850 (042) - FUEL INJECTION SYSTEM, (301 BD) DIESEL ENGINE (02) - FUEL SYSTEM

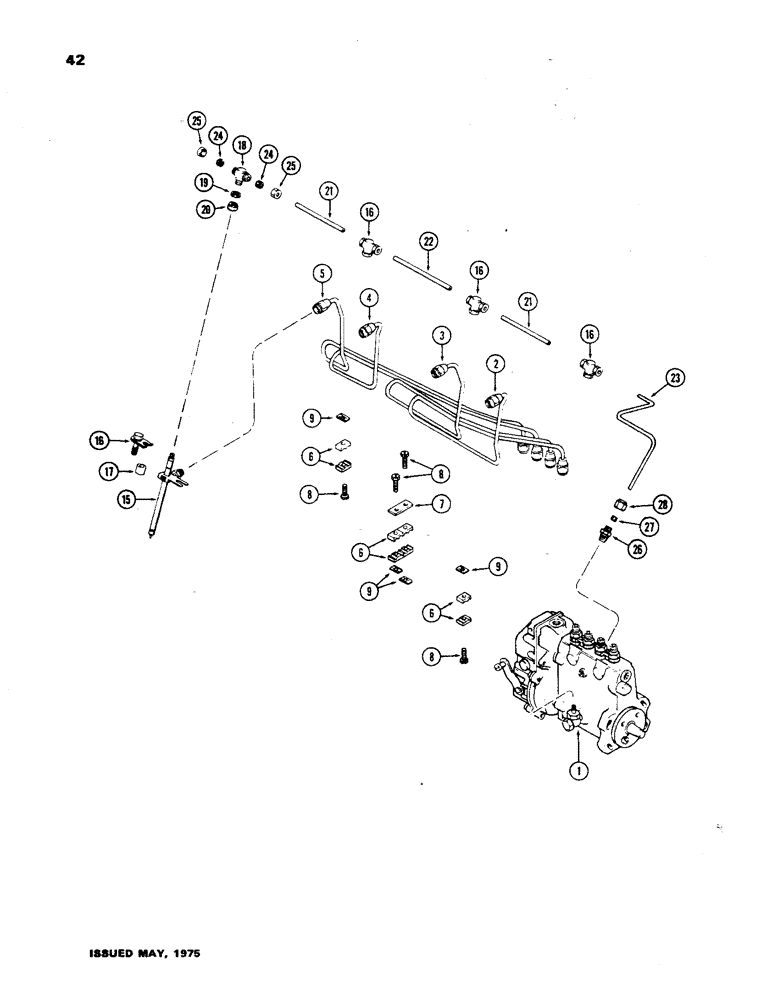

Схема запчастей Case 850 - (042) - FUEL INJECTION SYSTEM, (301 BD) DIESEL ENGINE (02) - FUEL SYSTEM
28
21
22
8
2
20
6
16
5
8
21
15
26
16
16
9
24
6
1
6
23
9
25
19
4
24
17
7
3
16
8
27
18
9
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSY. fuel injection (See Figures 48-49C)

1шт.

2

A58702

TUBE

ASSY. - fuel injection, No. 1 cylinder

1шт.

3

A58703

TUBE

ASSY. - fuel injection, No. 2 cylinder

1шт.

4

A58704

TUBE

ASSY. - fuel injection, No. 3 cylinder

1шт.

5

A58705

TUBE

ASSY. - fuel injection, No. 4 cylider

1шт.

6

A58709

BRACKET

- clamp, injection tube

8шт.

7

A58710

PLATE

- bracket

1шт.

8

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- bracket (#10 x 1" N.C., sltd. hex. hd.)

4шт.

9

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT (#10 Tinnerman)

4шт.

15

REF

INSTRUCTION

NOZZLE ASSY. - injector (See Figure 50)

4шт.

16

A58695

CLAMP

ASSY. - nozzle

4шт.

17

A58696

SPACER

- nozzle clamp

4шт.

18

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE ASSY. - nozzle leak-off

4шт.

19

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: tee-nozzle

4шт.

20

A58961

NUT

-, Serial Range: tee-nozzle

4шт.

21

A58965

TUBE

- leak-off (4-5/8" long)

2шт.

22

A58964

TUBE

- leak-off (5-5/8" long)

1шт.

23

A58963

TUBE

- leak-off, No. 1, Serial Range: nozzle-valve

1шт.

24

222-102

SLEEVE,1/4" Tube

8шт.

25

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

8шт.

26

A28098

VALVE

ASSY. - check, leak-off (one way valve), Includes: Ref. 27 and 28

1шт.

27

222-102

SLEEVE,1/4" Tube

1шт.

28

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
