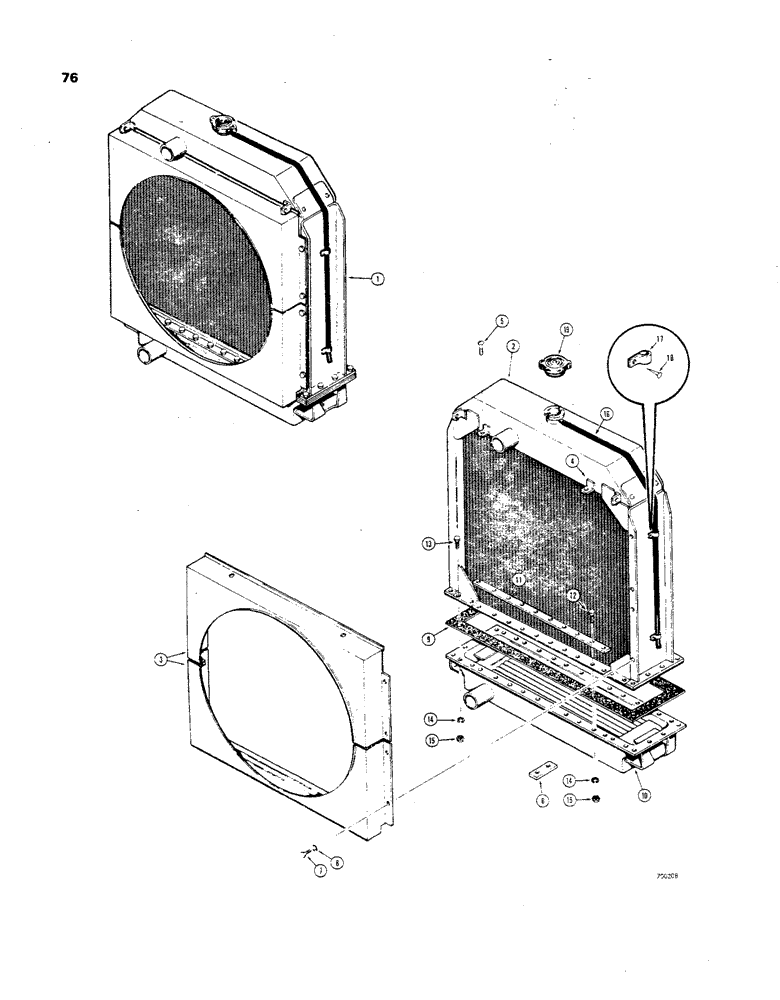

Запчасти Case 850 (076) - D47754 RADIATOR (01) - ENGINE

1

D47754

RADIATOR

- Perfex #R7595-F, Includes: Ref. 2 - 18

1шт.

2

D50905

TANK

TOP TANK AND CORE - radiator

1шт.

3

D50909

SHROUD - radiator

1шт.

4

D50910

CLIP - shroud, top

2шт.

5

75-46

SCREW

RHMS - 1/4" - 20 NC x 3/8"

4шт.

6

D50911

CLIP - shroud, bottom

2шт.

7

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

8шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

9

N6649

STRIP-GASKET

- core

2шт.

10

D50907

BOTTOM

TANK AND COOLER - radiator

1шт.

11

R22015

WASHER - radiator core

2шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

32шт.

13

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

14

92-5

LOCK WASHER,5/16"

40шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

40шт.

16

D50912

HOSE - overflow

1шт.

17

R22017

CLAMP - overflow hose

2шт.

18

168-73

SCREW,Type U, Rnd Hd, #10 x 3/8"

- drive, no. 20 x 3/8"

2шт.

19

D25826

CAP

- pressure, 7 P.S.I.

1шт.
