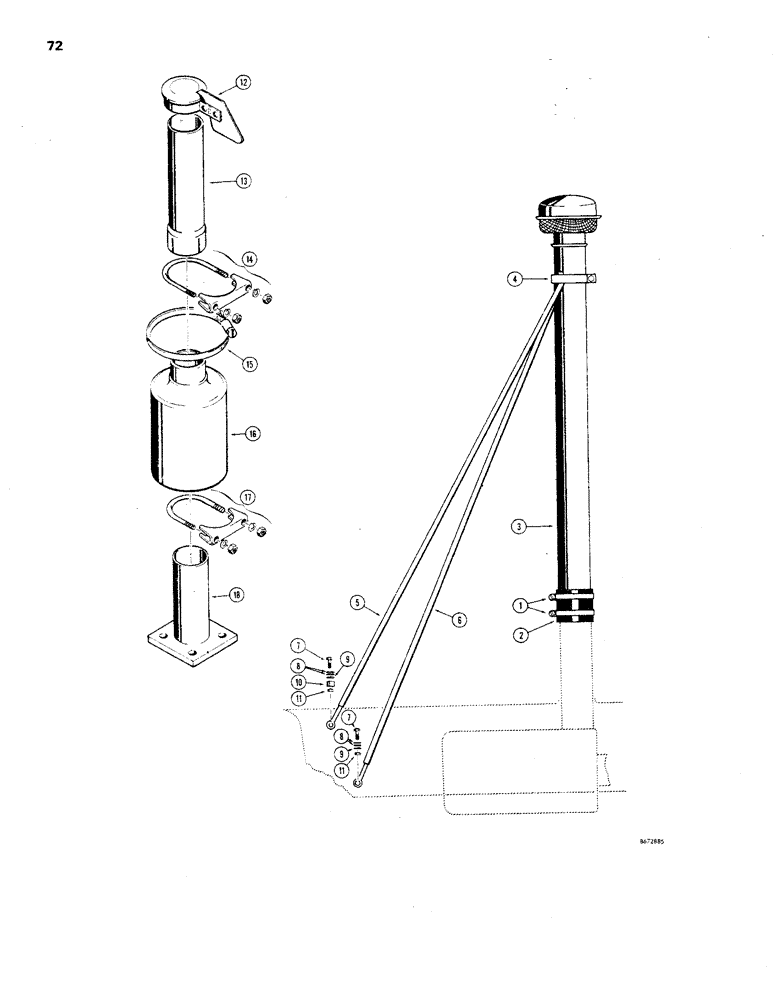

Запчасти Case 850 (072) - AIR INLET EXTENSIONS (01) - ENGINE

1

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

2шт.

2

R19030

HOSE

- air, Serial Range: cleaner-extension

1шт.

3

R19036

TUBE - extension, 36" (Used with dry type air cleaner only)

1шт.

3

D41369

TUBE - extension, 60" (Used with dry type air cleaner only)

1шт.

4

R19604

CLAMP

- brace

1шт.

5

R19594

BRACE

- extension, R.H.

1шт.

6

R19593

BRACE - extension, L.H.

1шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

8

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

R14507

SPACER - brace at hood, R.H. only

1шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

12

D33884

CAP

- rain, spark arresting muffler

1шт.

13

D33883

TUBE

STACK - exhaust, upper (Without ROPS), spark arresting muffler

1шт.

13

R30869

PIPE, EXHAUST SYSTEM

STACK - exhaust, upper (With ROPS), spark arresting muffler

1шт.

14

A19955

CLAMP

- spark arrester, upper, muffler

1шт.

15

NLS

NO LONGER SERVICED

STRAP - spark arrester, muffler

1шт.

16

D33881

ARRESTER

SPARK ARRESTER - engine exhaust (Standard on forestry models only, optional on all others), muffler

1шт.

17

A13240

CLAMP,2-5/8" ID

- spark arrester, lower, muffler

1шт.

18

D47780

EXHAUST SYSTEM PIPE

STACK - exhaust, spark arresting muffler

1шт.
