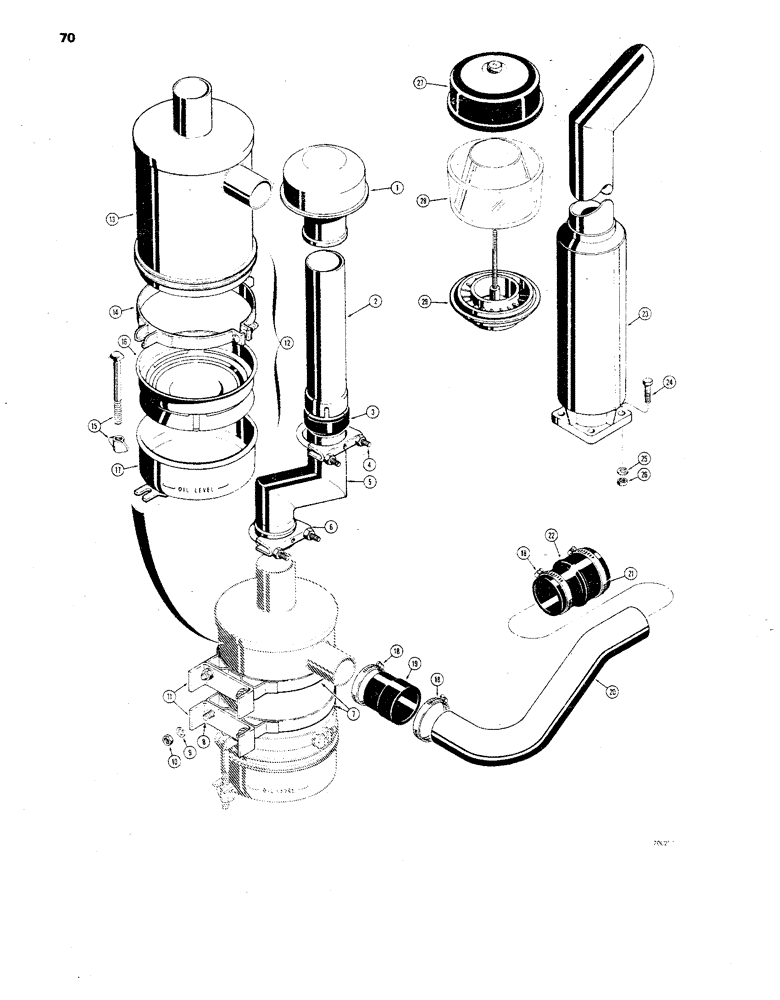

Запчасти Case 850 (070) - MUFFLER AND OIL BATH TYPE AIR CLEANER (01) - ENGINE

1

A61276

AIR CLEANER

CAP - air cleaner, screen

1шт.

2

74767

ARTICULATION

STACK - air cleaner, straight

1шт.

3

D41458

SLEEVE - stack

1шт.

4

A19955

CLAMP

- stack

1шт.

5

D47759

STACK - air cleaner, bent

1шт.

6

A13241

CLAMP - stack

1шт.

7

70973

BRACKET

- air cleaner mounting

2шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - air cleaner mounting

2шт.

12

R22268

CLEANER

AIR CLEANER - oil bath, Includes: Ref. 13 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

14

R22419

BAND - air cleaner

1шт.

15

R22421

BOLT - special, air cleaner

2шт.

16

R21392

CUP - inner, air cleaner

1шт.

17

R22420

CUP

- outer, air cleaner

1шт.

18

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

3шт.

19

D47762

REDUCER - hose

1шт.

20

D47763

ELBOW - hose

1шт.

21

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

1шт.

22

L10303

TUBE NUT

REDUCER - hose

1шт.

23

D47767

MUFFLER

- exhaust, standard

1шт.

24

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

4шт.

25

92-8

LOCK WASHER,1/2"

Early Production 1/2"

4шт.

26

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC) Early Production

4шт.

26

131-654

LOCK NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC) Late Production

4шт.

A64589

PRECLEANER

PRE-CLEANER ASSEMBLY - air cleaner, Includes: Ref. 27 - 29

1шт.

27

73187

COVER

- pre-cleaner

1шт.

28

NLS

NO LONGER SERVICED

BODY - pre-cleaner

1шт.

29

73185

SLEEVE

- pre-cleaner

1шт.
