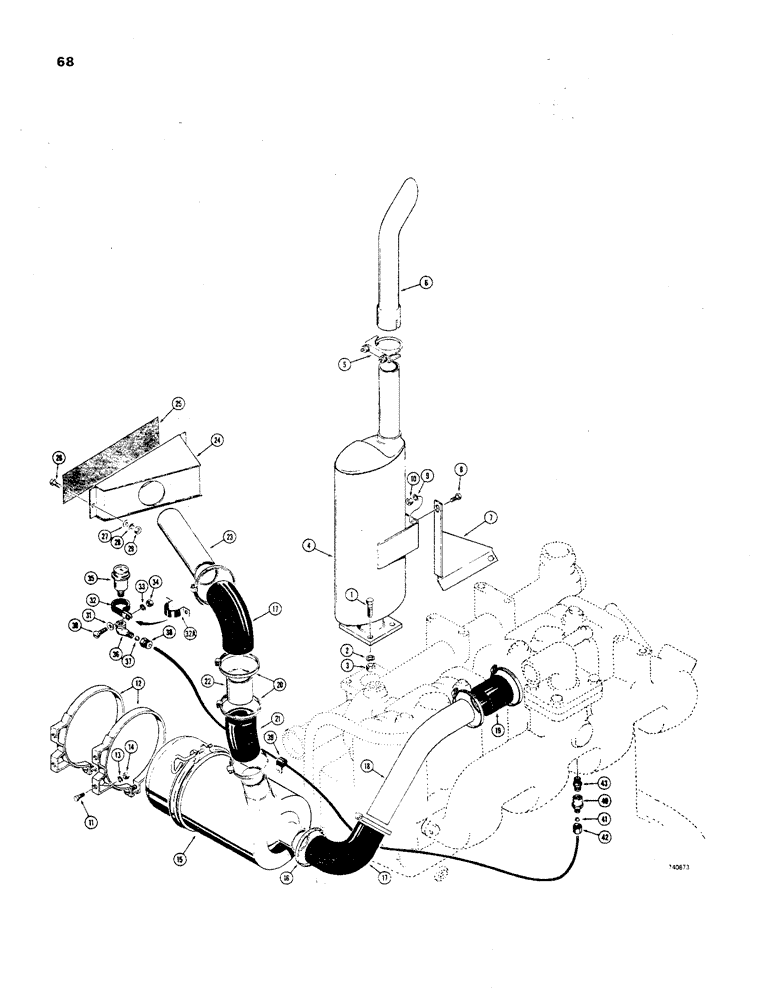

Запчасти Case 850 (068) - MUFFLER AND DRY TYPE AIR CLEANER, NOISE REDUCTION MODELS (01) - ENGINE

1

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

4

R26105

MUFFLER

- exhaust

1шт.

5

A27077

CLAMP

ASSEMBLY - muffler

1шт.

6

R30487

PIPE, EXHAUST SYSTEM

STACK - exhaust pipe

1шт.

7

R30683

BRACKET

BRACE - muffler

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

12

R24049

BAND

BRACKET - air cleaner mounting

2шт.

13

92-5

LOCK WASHER,5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

15

D36261

CLEANER

AIR CLEANER - dry type (Parts list Figure 66)

1шт.

16

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

4шт.

17

D36262

LARGE HOSE

ELBOW - hose

2шт.

18

D47558

TUBE - air intake

1шт.

19

A23802

HOSE

-, Serial Range: tube-manifold

1шт.

20

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

1шт.

21

D39588

LARGE HOSE

HOSE - at air cleaner

1шт.

22

R30491

TUBE - air cleaner, lower

1шт.

23

R30490

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

TUBE - inlet, upper

1шт.

24

R33534

CHAMBER

- air intake

1шт.

25

R30489

SCREEN - air intake

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

27

195-25

WASHER,3/8"

- flat () 3/8"

2шт.

28

92-6

LOCK WASHER,3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

30

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

RHMS - 1/4" - 20 NC x 3/4" (Zinc plated

1-2шт.

31

195-18

WASHER,1/4"

- plain () D45064 clamp only 1/4"

1шт.

32

D45064

CLAMP,1 3/8", Insul, 1/4" Bolt

- indicator, Early production

1шт.

32a

R33808

CLAMP

- indicator, Late production

1шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1-2шт.

34

25-104

NUT,1/4"-20, G5

1-2шт.

35

D47217

INDICATOR

FILTER INDICATOR - air cleaner

1шт.

36

D45588

FITTING

ELBOW - 90deg., special, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - elbow

1шт.

38

NSS

NOT SOLD SEPARAT

NUT - elbow

1шт.

39

D36944

TUBE

CLAMP - tube

1шт.

40

D35091

PIPE FITTING

CONNECTOR - female, straight, Includes: Ref. 41 and 42

1шт.

41

D37176

SLEEVE

- connector

1шт.

42

D37362

TUBE NUT

- connector

1шт.

43

D36264

FITTING

CONNECTOR - special, filtered

1шт.
