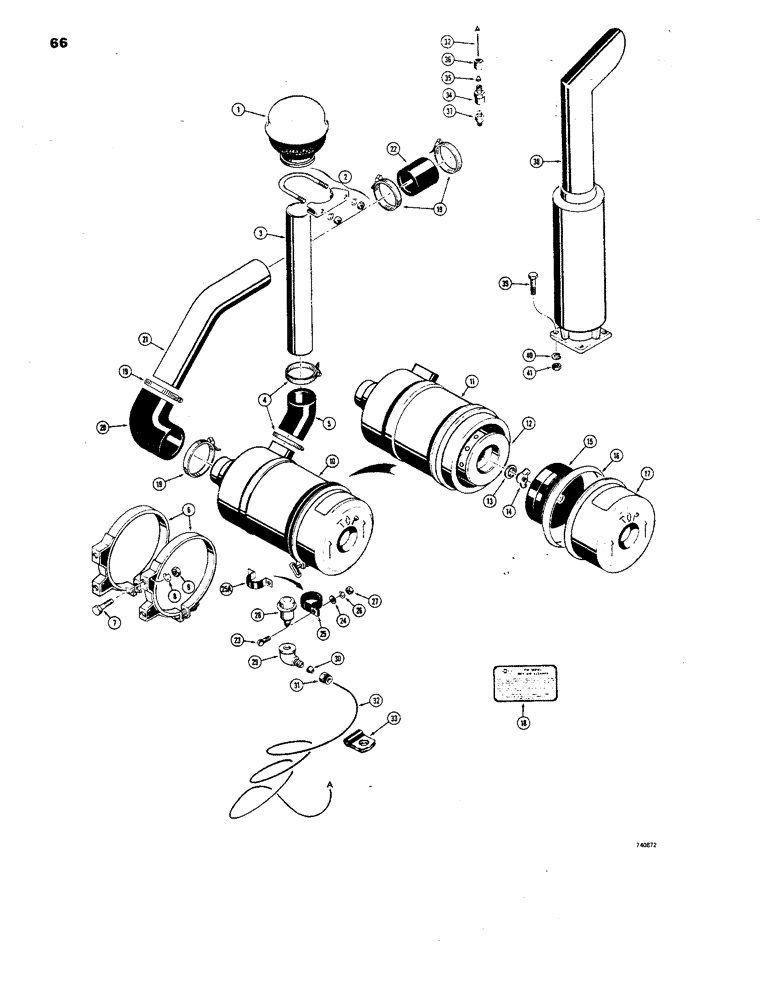

Запчасти Case 850 (066) - MUFFLER AND DRY TYPE AIR CLEANER, STANDARD MODELS (01) - ENGINE

1

A61277

CAP

- air cleaner, screen

1шт.

2

A19955

CLAMP

- stack

1шт.

3

D39589

MUFFLER

STACK - air cleaner

1шт.

4

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

2шт.

5

D39588

LARGE HOSE

HOSE - stack to air cleaner

1шт.

6

D52449

BRACKET

- air cleaner mounting

2шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

8

92-5

LOCK WASHER,5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

10

D36261

CLEANER

AIR CLEANER - dry type, standard, Includes: Ref. 11 - 18

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

12

D37975

FILTER

ELEMENT - air cleaner

1шт.

F91761

WING NUT

AND GASKET ASSEMBLY - wing, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET -wing nut

1шт.

14

NSS

NOT SOLD SEPARAT

NUT - wing

1шт.

15

D37979

BAFFLE

- air cleaner

1шт.

16

R15731

CLAMP

- air cleaner

1шт.

17

A40951

CUP

- air cleaner

1шт.

18

D37974

DECAL

- service instructions

1шт.

19

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

4шт.

20

D36262

LARGE HOSE

ELBOW - hose

1шт.

21

D47558

TUBE - air intake

1шт.

22

A23802

HOSE

-, Serial Range: tube-manifold

1шт.

23

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

RHMS - 1/4" - 20 NC x 3/4" (Zinc plated)

1-2шт.

24

195-18

WASHER,1/4"

- plain () D45064 clamp 1/4"

1шт.

25

D45064

CLAMP,1 3/8", Insul, 1/4" Bolt

- indicator, early production

1шт.

25a

R33808

CLAMP

- indicator, late production

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1-2шт.

27

25-104

NUT,1/4"-20, G5

1-2шт.

28

D47217

INDICATOR

FILTER INDICATOR - air cleaner

1шт.

29

D45588

FITTING

ELBOW - special, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

SLEEVE - elbow

1шт.

31

NSS

NOT SOLD SEPARAT

NUT - elbow

1шт.

32

D36944

TUBE

- indicator

1шт.

33

D43839

CLAMP

- tube

1шт.

34

D35091

PIPE FITTING

CONNECTOR - female, straight, Includes: Ref. 35 and 36

1шт.

35

D37176

SLEEVE

- connector

1шт.

36

D37362

TUBE NUT

- connector

1шт.

37

D36264

FITTING

CONNECTOR - special, filtered

1шт.

38

D47767

MUFFLER

- exhaust

1шт.

39

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

40

92-8

LOCK WASHER,1/2"

4шт.

41

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.
