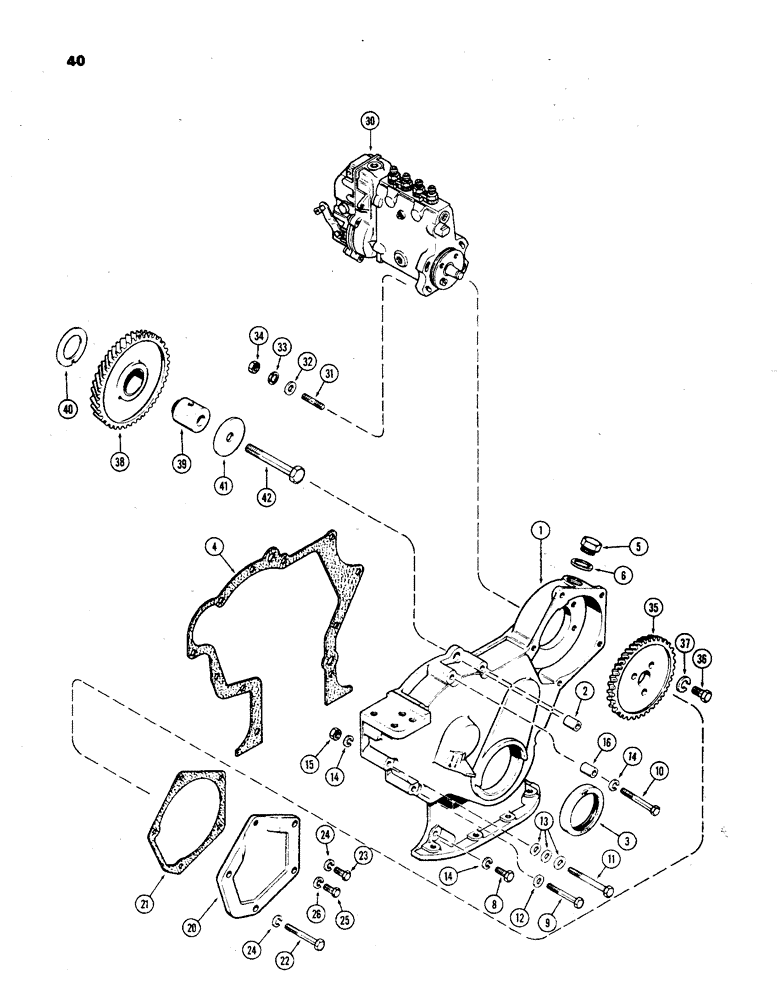

Запчасти Case 850 (040) - TIMING GEAR COVER, (301B) DIESEL ENGINE (01) - ENGINE

1

A58609

COVER

ASSY. - timing gear, Includes: Ref. 2

1шт.

2

A58611

PIN

- cover locating

2шт.

3

A62049

OIL SEAL

- oil, crankshaft, front (Replaces A57342) (2-5/8 x 3-5/8 x 1/2")

1шт.

4

A58612

GASKET

-, Serial Range: cover-block

1шт.

5

A21140

PLUG

- timing window

1шт.

6

A58613

SEALING WASHER

GASKET - plug (1 x 1-1/4 x 1/16" nylon)

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

9

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover (3/8 x 2-1/2" N.C. hex.)

2шт.

10

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover (3/8 x 3-1/2" N.C. hex.)

1шт.

11

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- cover (3/8 x 3-3/4" N.C. hex.)

2шт.

12

195-25

WASHER,3/8"

- cover bolts (13/32 x 13/16 x 1/16")

2шт.

13

95-6

WASHER,3/8"

- cover bolts (7/16 x 1 x 5/64")

6шт.

14

92-6

LOCK WASHER,3/8"

7шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

16

A19774

BUSHING

SPACER - alternator pry point

1шт.

20

A61053

COVER

- fuel pump

1шт.

21

A58615

GASKET

- fuel pump cover

1шт.

22

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- cover (3/8 x 3-1/4" N.C. hex.)

2шт.

23

A148253

BOLT

- cover (3/8 x 1-1/4" N.C. w/drilled hex. hd. for anti-tamper wire)

2шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

26

92-5

LOCK WASHER,5/16"

1шт.

30

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See Figure 42), drive

1шт.

31

A58689

STUD

- pump mtg. (3/8" N.C. x 1-7/8" w/out drilled hole), injection drive

3шт.

31

A142092

STUD

- pump mounting (3/8" N.C. x 1-7/8" w/drilled hole for anti-tamper wire), injection pump drive

1шт.

32

A57470

WASHER

- stud (13/32 x 11/16" x 16 ga.), injection pump drive

4шт.

33

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Injection pump drive Int Tooth, 3/8"

4шт.

34

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., injection pump drive

3шт.

34

25-126

SLOTTED NUT,3/8"-16, G5

NUT - 3/8" N.C. slotted (Used w/A142092 stud), injection pump drive

1шт.

35

A58693

GEAR

- injection pump drive

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Gear to pump hub, injection drive Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

37

92-6

LOCK WASHER,3/8"

injection pump drive 3/8"

3шт.

38

A62542

GEAR

ASSY. - idler, w/bushing (Replaces A58686), injection pump drive

1шт.

39

A58690

SHAFT

- idler gear, injection pump drive

1шт.

40

A58691

WASHER

- thrust, idler shaft, injection pump drive

1шт.

41

A58692

PLATE

- thrust, idler shaft, injection pump drive

1шт.

42

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Idler gear, injection pump drive Hex, 1/2"-13 x 4 1/4", G5

1шт.
