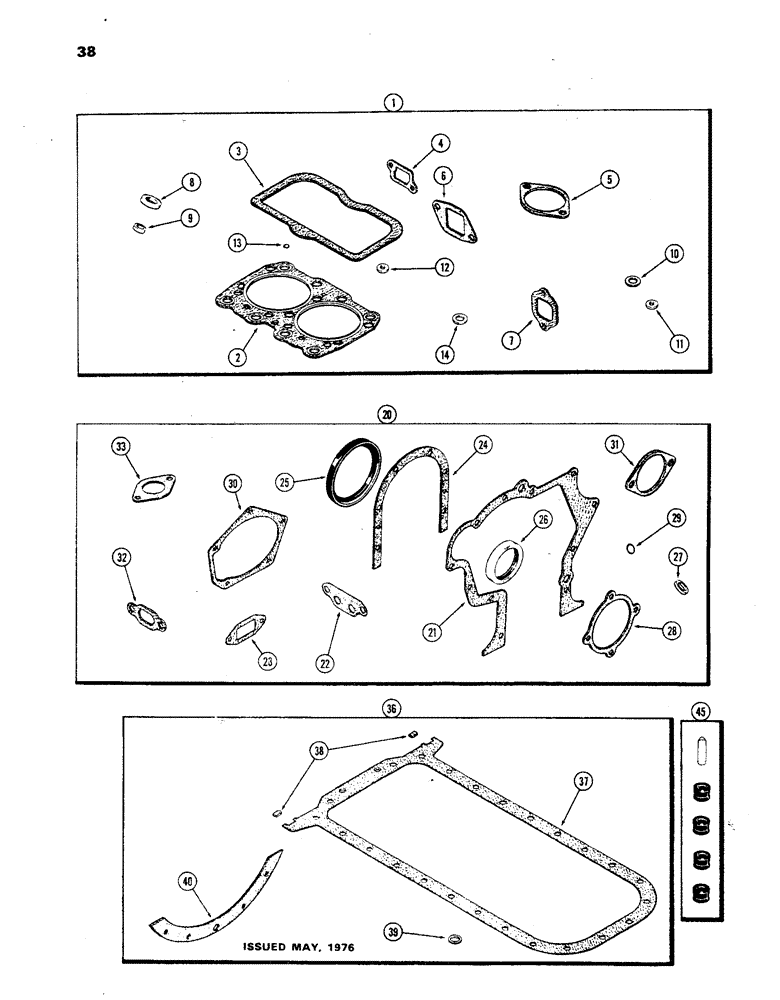

Запчасти Case 850 (038) - ENGINE GASKET KITS, (301 BD) DIESEL ENGINE, VALVE GRIND KIT (01) - ENGINE

1

A44084

GASKET

KIT - valve grind (Rpl. A42891), Includes: Ref. 2 - 14

1шт.

For complete engine overhaul order 1-A44084, 1-A42096 and 1-A43005

1шт.

2

A138121

GASKET

- cylinder head (Replaces A62216)

2шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover

2шт.

4

A58637

MANIFOLD GASKET

- water manifold

2шт.

5

G46907

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

4шт.

7

A58895

GASKET

- exhaust manifold

4шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle

4шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon, injector nozzle

4шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube (11/16 x 1-1/4 x 1/4")

2шт.

11

A23684

GASKET

GASKET - cover studs (15/32 x 7/8 x 1/8" rubber)

4шт.

12

A34133

GASKET

- breather screw (9/32 x 1/2 x 3/64" fiber)

2шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube (3/16 x 5/16 x 1/16")

2шт.

14

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem (5/16 x 17/32 x 5/64" rubber) (See Ref. 45)

8шт.

20

A44075

GASKET KIT

- cylinder block (Rpl. A42096), Includes: Ref. 21 - 33

1шт.

For complete engine overhaul order 1-A44084, 1-A42096 and 1-A43005

1шт.

21

A58612

GASKET

- timing gear cover, cylinder block kit

1шт.

22

A58756

OIL PAN GASKET SET

- oil filter base, cylinder block kit

1шт.

23

A58646

GASKET

- water pump body, cylinder block kit

1шт.

24

A32830

GASKET

- rear oil seal retainer, cylinder block kit

1шт.

25

A62050

OIL SEAL

- oil, crankshaft rear (4-3/4 x 5-3/4 x 1/2"), cylinder block kit

1шт.

26

A62049

OIL SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2"), cylinder block kit

1шт.

27

A58613

SEALING WASHER

GASKET - timing window plug (1 x 1-1/4 x 1/16" nylon), cylinder block kit

1шт.

28

A58649

GASKET

- water pump body to block, cylinder kit

1шт.

29

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - filter base (1 x 1-1/8 x 3/32"), cylinder block kit

3шт.

30

A58615

GASKET

- fuel pump cover, cylinder block kit

1шт.

31

A58617

GASKET

- (Not used this application), cylinder block kit

1шт.

32

A58670

GASKET

- (not used this application), cylinder block kit

1шт.

33

A58680

OIL PAN GASKET SET

- (Not used this application), cylinder block kit

1шт.

36

A43005

GASKET KIT

- oil pan (Replaces A41836), kit, Includes: Ref. 37 - 40

1шт.

For complete engine overhaul order 1-A44084, 1-A42096 and 1-A43005

1шт.

37

NSS

NOT SOLD SEPARAT

GASKET - oil pan kit

1шт.

38

A62402

GASKET

- oil pan rear corners, kit

2шт.

39

A27968

RING

- oil pan drain plug (7/8 x 1-1/4 x 1/16" nylon), kit

1шт.

39

A58608

GASKET

- oil pan drain plug (3/4 x 1 x 1/16" nylon), kit

1шт.

40

A57966

GASKET

- trans. housing, lower, oil pan kit

1шт.

45

M20614

SEAL KIT

SEAL KIT - valves (Incl. 4 seals & installation sleeve), oil pan kit

1шт.
