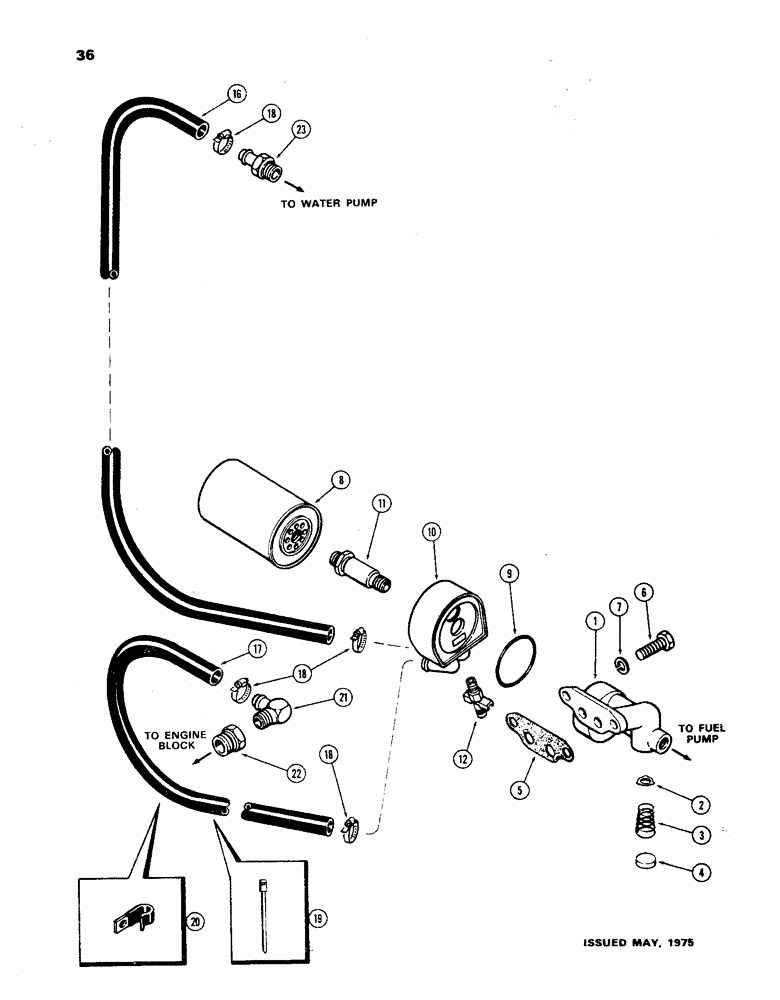

Запчасти Case 850 (036) - OIL FILTER AND COOLER, (301) DIESEL ENGINE, 1ST USED ENG. S/N 2574432 (01) - ENGINE

1

A58752

BASE

ASSY. - oil filter & cooler, Includes: Ref. 2 - 4

1шт.

2

A58754

VALVE

- relief

1шт.

3

A58755

FILTER

SPRING - relief valve

1шт.

4

41-1016

PLUG,Cup, 1"

- relief valve (1" cup type)

1шт.

5

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- base to block (1/2 x 1-3/4" N.C. hex.)

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

A146696

ENGINE OIL FILTER

FILTER - oil (Replaces A58758)

1шт.

9

A66410

SEALING RING

- oil, base to cooler (2-5/8 x 3 x 3/16" sq.)

1шт.

10

A66295

COOLER

- oil

1шт.

11

A66296

ADAPTER

-, Serial Range: filter-base

1шт.

12

217-107

VALVE

DRAINCOCK - cooler (discard 1/8" pipe plug in cooler)

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - water inlet (43"long) (Order A42610)

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - water outlet (25"long) (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - (5/8" I.D. x 1" O.D. x 50 ft.) (Cut to length req.)

1шт.

18

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose (17/32" to 5/8")

4шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - hose tie

1шт.

20

A59718

CLAMP

- hose

1шт.

21

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose 90deg.

1шт.

22

221-60

TUBE

REDUCER - (in block), Serial Range: (3/4"-1/2")

1шт.

23

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose (to water pump) (1/2" P.T.) (Used w/A138498 body) (See figure 8)

1шт.

23

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

CONNECTOR - hose (to water pump) (3/4" P.T.) (Used w/A59220 body) (See figure 8)

1шт.
