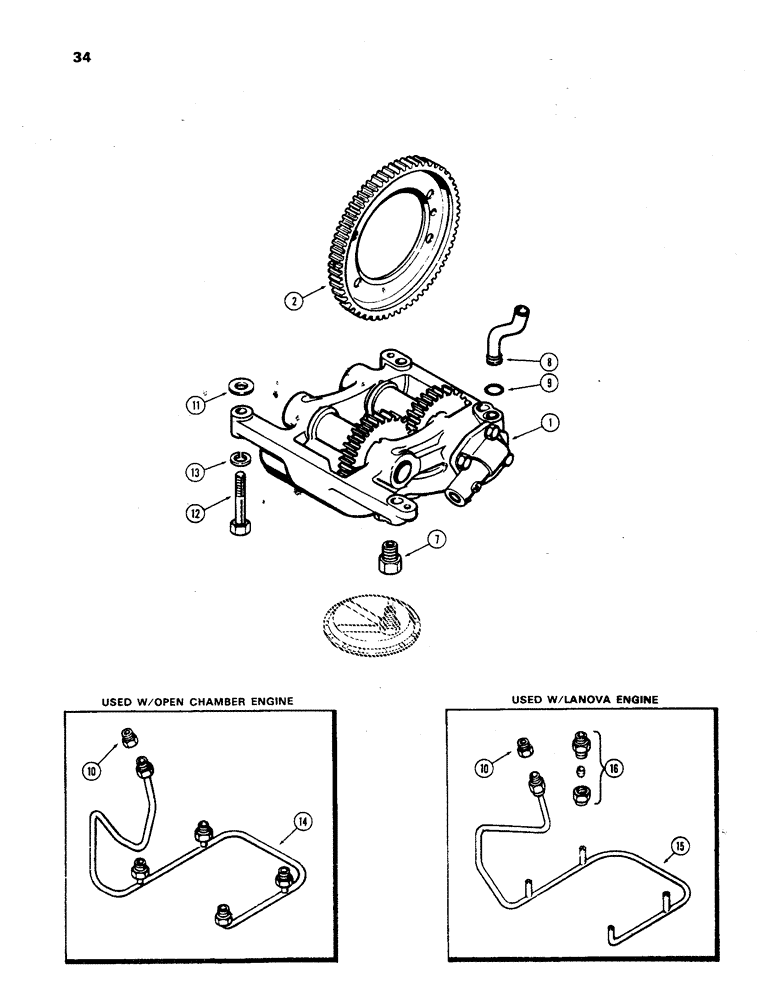

Запчасти Case 850 (034) - BALANCER CONVERSION, TO CONVERT 3 GEAR BALANCER, TO 2 GEAR BALANCER USE: (01) - ENGINE

1

A62451

BALANCER

ASSY. 2 gear (See Figure 30)

1шт.

2

A62450

GEAR

- balancer drive (86 teeth)

1шт.

A43000

KIT

ATTACHING KIT, Includes: Ref. 7 - 16

1шт.

7

A21235

FITTING

ADAPTER - oil screen

1шт.

8

A61130

TUBE

- oil pump

1шт.

9

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - tube (9/16 x 3/4 x 3/32")

1шт.

10

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - tube

1шт.

11

G49401

SHIM,.005" Thk

Balancer housing .005" Thk

4шт.

11

G49402

SHIM,.010" Thk

Balancer housing .010" Thk

4шт.

12

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- housing, 1/2 x 2-1/4" N.C. hex.

2шт.

12

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- housing, 1/2 x 3" N.C. hex.

2шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

A62002

MANIFOLD

- oil supply (used w/Open Chamber Engine)

1шт.

15

A43022

MUFFLER

MANIFOLD - oil supply (used w/Lanova engine)

1шт.

16

222-602

FITTING,7/16"-24 x 1/8" NPT, Comp

CONNECTOR - (used w/A43002 manifold)

4шт.
