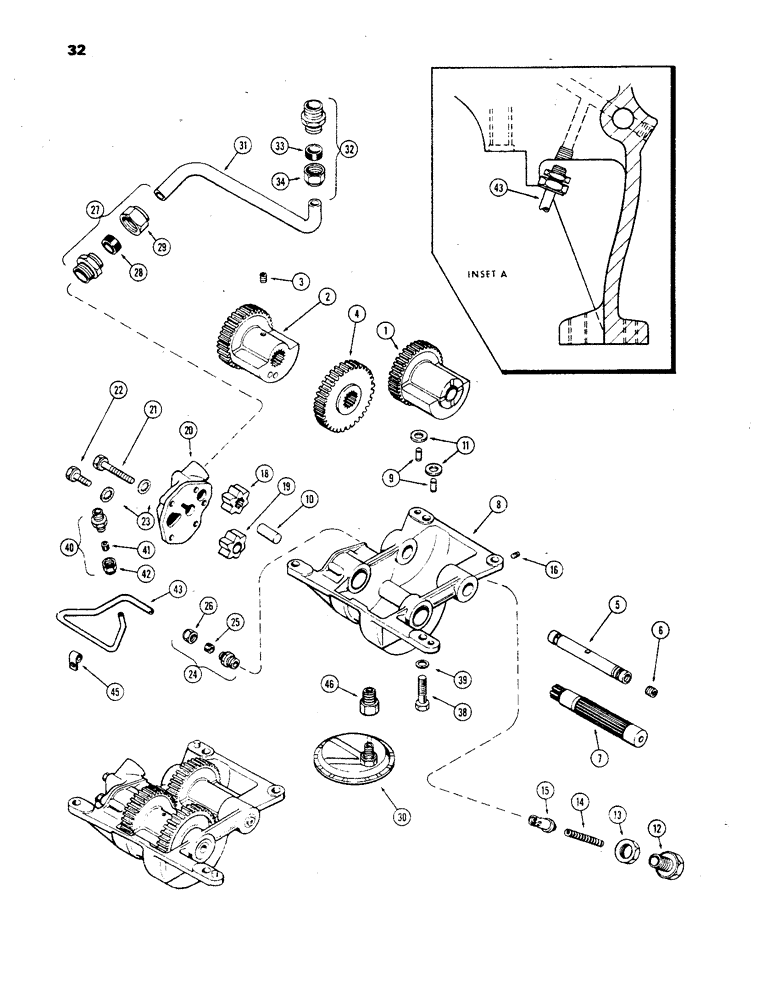

Запчасти Case 850 (032) - 3 GEAR BALANCER & OIL PUMP, (301B) DIESEL ENGINE, USED PRIOR TO ENG. S/N 2327745 (01) - ENGINE

A62235

BALANCER

ASSY - engine (Order 1-A62451 balancer, 1-A62450 drive gear & 1-A43000 kit), Includes: Ref. 1 - 29

1шт.

For conversion of 3 gear balancer to 2 gear balancer see figure 34

1шт.

1

A62236

WEIGHT

COUNTERWEIGHT ASSY. - driven

1шт.

2

A62238

WEIGHT

COUNTERWEIGHT - drive (splined)

1шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set (3/8 x 3/8" N.C. socket hd. cup pt.)

1шт.

4

A57958

GEAR

- drive, counterweight

1шт.

5

A22563

SHAFT

- stationary

1шт.

6

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

7

A57957

SHAFT

ASSY. - drive, counterweight

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING ASSY. - balancer, Includes: Ref. 9 and 10

1шт.

9

A8134

PIN

- dowel

2шт.

10

A22543

SHAFT

- stub, oil pump gear

1шт.

11

G49401

SHIM,.005" Thk

Housing to block .005" Thk

1шт.

11

G49402

SHIM,.010" Thk

Housing to block .010" Thk

1шт.

12

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, relief valve

1шт.

13

A27858

NUT

- adjusting screw

1шт.

14

A61958

VALVE SPRING

SPRING - relief valve, oil pump

1шт.

15

A22566

PLUNGER

- relief valve, oil pump

1шт.

16

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set (5/16 x 3/8" socket hd. cone pt.)

1шт.

18

A22564

GEAR

- drive, oil pump (splined)

1шт.

19

A22555

GEAR

ASSY. - driven (includes bushing)

1шт.

20

A22565

COVER ASSY

COVER - outlet, oil pump

1шт.

21

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

22

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

23

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

24

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - oil tube to housing (1/4" P.T.), Includes: Ref. 25 and 26

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT - (1/4" tube)

1шт.

27

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - oil inlet tube (1/2" P.T.), Includes: Ref. 28 and 29

1шт.

28

222-106

SLEEVE,5/8" Tube

- () 5/8" Tube

1шт.

29

222-116

TUBE NUT,1"-18

NUT - (5/8" tube)

1шт.

30

A22590

FILTER SCREEN

SCREEN ASSY. - oil inlet

1шт.

31

A62745

TUBE

- oil pump to filter (Replaces A22595)

1шт.

32

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - (1/2" P.T.), Includes: Ref. 33 and 34

1шт.

33

222-106

SLEEVE,5/8" Tube

- () 5/8" Tube

1шт.

34

222-116

TUBE NUT,1"-18

NUT - (5/8" tube)

1шт.

38

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

4шт.

39

92-8

LOCK WASHER,1/2"

4шт.

40

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR ASSY. - (1/8" P.T.), Includes: Ref. 41 and 42

1шт.

41

222-12

FITTING,7/16"-24 Inv Fl x 1/8" NPT Fem

SLEEVE - (1/4" tube)

1шт.

42

87017024

TUBE NUT,1/2"-24

NUT - (1/4" tube)

1шт.

43

A58857

TUBE

- oil, balancer shaft (See Inset A)

1шт.

45

A20541

CLIP

- oil tube

1шт.

46

A22591

ADAPTER

- tube to screen (1/2" P.T.)

1шт.
