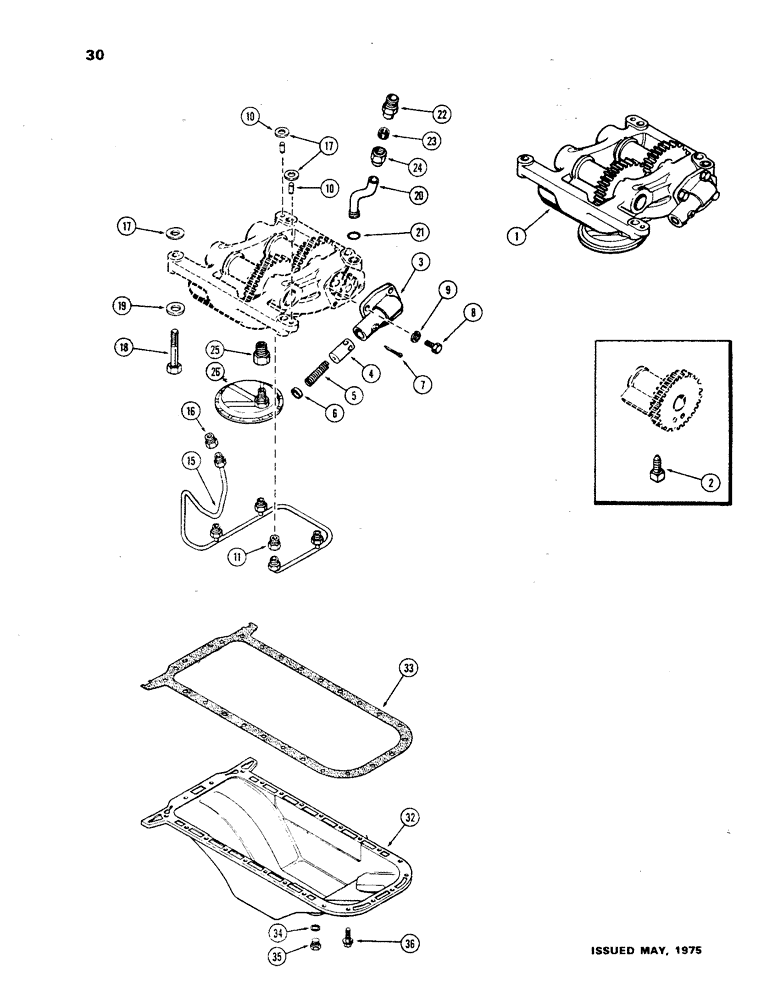

Запчасти Case 850 (030) - 2 GEAR BALANCER & OIL PUMP, (301 BD) DIESEL ENGINE, 1ST USED ENG. S/N 2327745 (01) - ENGINE

1

A66168

PUMP, ENGINE OIL

BALANCER ASSY. - engine (Repl. A62451 & A65129), Includes: Ref. 2 - 11

1шт.

2

181-675

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - set (1/2 x 1-1/4" N.C. sq. hd., cone pt.)

4шт.

3

A61129

COVER

- oil pump

1шт.

4

A34992

PISTON

VALVE - relief, oil pump

1шт.

5

A59111

SPRING

- relief valve (2-1/6" free length)

1шт.

6

41-1011

PLUG,Cup, 11/16"

- relief valve (11/16" cup type)

1шт.

7

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

8

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- (5/16 x 1-3/8" N.C. hex.)

1шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

A8134

PIN

- balancer locating (3/8 x 3/4")

2шт.

11

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - (1/8" P.T., 1/4" tube)

4шт.

15

A62002

MANIFOLD

- balancer oil supply

1шт.

16

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - (1/8" P.T.,1/4" tube)

1шт.

17

G49401

SHIM,.005" Thk

Mounting .005" Thk

1шт.

17

G49402

SHIM,.010" Thk

Mounting .010" Thk

1шт.

18

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- (1/2 x 2-1/4" N.C. hex.)

2шт.

18

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- (1/2 X 3" N.C. hex.)

2шт.

19

L30674

WASHER

- 1/2 x 1 x 1/8"

4шт.

20

A61130

TUBE

-, Serial Range: pump-block

1шт.

21

A64436

O-RING,0.549" ID x 0.755" OD

"O" RING - (9/16 x 3/4 x 3/32")

1шт.

22

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - (1/2 P.T., 5/8" tube), Includes: Ref. 23 and 24

1шт.

23

222-106

SLEEVE,5/8" Tube

- (for ) 5/8" Tube

1шт.

24

222-116

TUBE NUT,1"-18

NUT - (for 5/8" tube)

1шт.

25

A22591

ADAPTER

-, Serial Range: screen-balancer

1шт.

26

A22590

FILTER SCREEN

SCREEN - oil inlet

1шт.

32

A65167

PAN

- oil (Replaces A60521)

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A43005 from Figure 38)

2шт.

34

A27968

RING

- drain plug, oil pan

1шт.

35

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

36

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - (3/8 x 1-1/4" N.C. Sems), oil pan

22шт.
