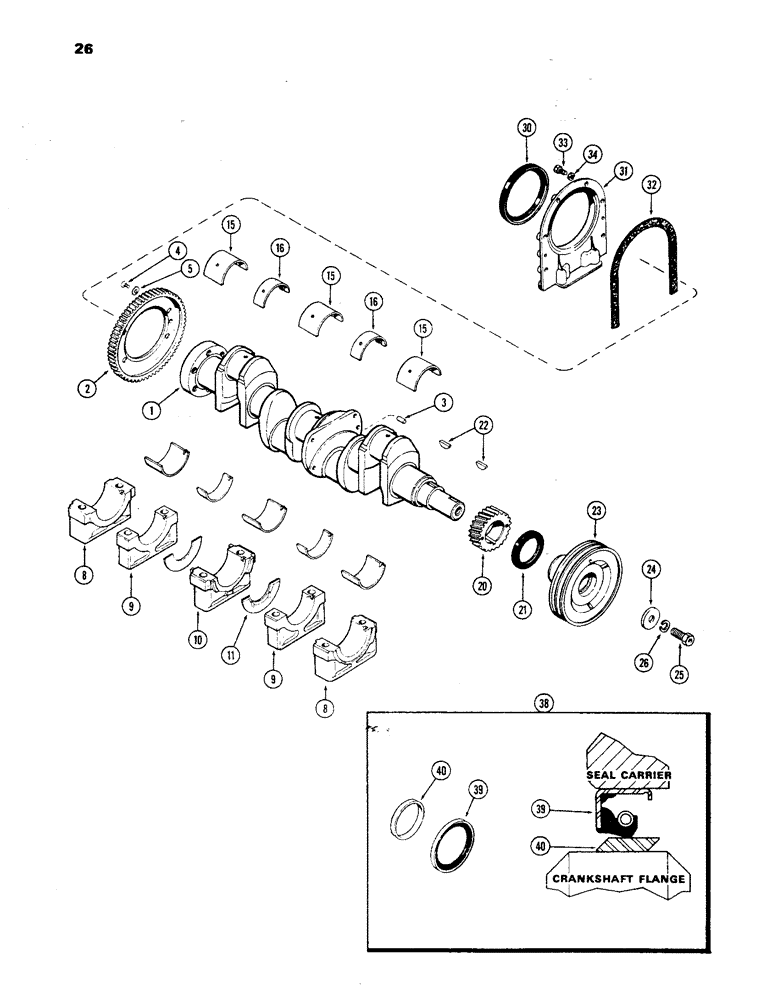

Запчасти Case 850 (026) - CRANKSHAFT, (301 BD) DIESEL ENGINE (01) - ENGINE

1

A58889

CRANKSHAFT

- engine

1шт.

2

A62450

GEAR

- balancer drive (used w/2 gear balancer) (86 teeth) (1st used eng. ser. no. 2327745)

1шт.

2

A22576

GEAR

ASSY. - balancer drive (used w/3 gear balancer) (106 teeth) (used prior to eng. ser. no. 2327745)

1шт.

3

A8134

PIN

- dowel, gear to crankshaft (3/8 x 3/4")

1шт.

4

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - drive gear (3/8 x 3/4" N.F. flat sckt. hd.)

4шт.

5

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

8

A58783

BEARING CAP

CAP - main bearing, front & rear (wide)

2шт.

9

A58784

BEARING CAP

CAP - main bearing, intermediate (narrow)

2шт.

10

A58785

BEARING CAP

CAP - main bearing, thrust, center (wide)

1шт.

11

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, ctr. brg. (Std.) (.185") (Replaces A58786)

2шт.

11

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, ctr. brg. (Oversize) (.191") (Replaces A42446)

2шт.

15

A43163

BEARING LINER

LINER SET - main brg., wide (Std.) (Replaces A42490)

3шт.

15

A42486

LINING

LINER SET - main bearing, wide (-.002")

3шт.

15

A42487

LINER

SET - main bearing, wide (-.010")

3шт.

15

A42488

LINER

SET - main bearing, wide (-.020")

3шт.

15

A42489

BEARING

LINER SET - main bearing, wide (-.030")

3шт.

16

A43158

BEARING LINER

LINER SET - main brg., narrow (Std.) (Replaces A42492)

2шт.

16

A42482

LINING

LINER SET - main bearing, narrow (-.002")

2шт.

16

A42483

LINING

LINER SET - main bearing, narrow (-.010")

2шт.

16

A42484

KIT

LINER SET - main bearing, narrow (-.020")

2шт.

16

A42485

LINING

LINER SET - main bearing, narrow (-.030")

2шт.

20

A66404

GEAR

- crankshaft (Replaces A58573)

1шт.

21

A62049

OIL SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2") (Replaces A57342)

1шт.

22

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley #C, 5/16" x 1 1/8", HT

2шт.

23

A61163

PULLEY

- fan drive

1шт.

24

A27903

WASHER

- pulley (21/32 x 2-1/8 x 1/4")

1шт.

25

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley (5/8 x 1-1/2" N.F. hex., sckt. hd.)

1шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

30

A62050

OIL SEAL

- oil, crankshaft, rear (4-3/4 x 5-3/4 x 1/2") (Replaces A23085) (See wear seal kit, ref. 38)

1шт.

31

A57457

RETAINER

- rear oil seal

1шт.

32

A32830

GASKET

- retainer, rear oil seal

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

34

92-6

LOCK WASHER,3/8"

6шт.

38

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear, Includes: Ref. 39 - 40

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - oil rear (4-7/8 x 5-3/4 x 1/2"), wear kit

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE - wear (4-3/4 x 7-7/8 x 9/16"), seal kit

1шт.
