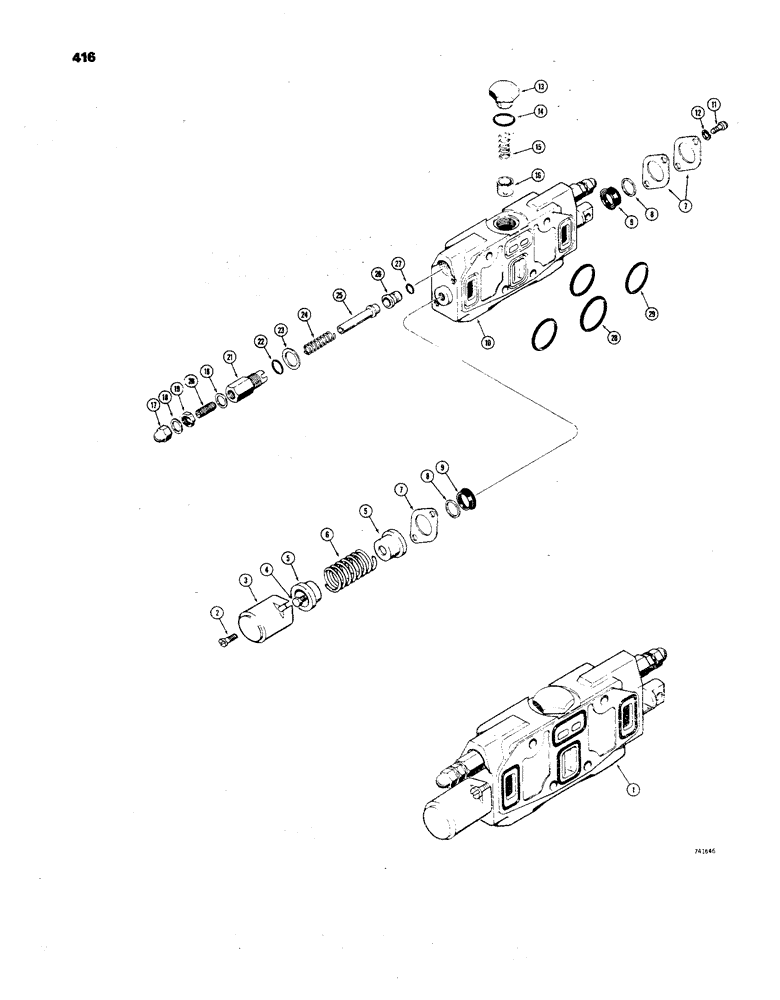

Запчасти Case 850 (416) - D66222 DOZER TILT SECTION, (CS&S # WU1030-1) (07) - HYDRAULIC SYSTEM

1

D66222

TILT SECTION - valve, Includes: Ref. 2 - 29

1шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

FHMS - 5/16" - 18 NC x 3/4"

2шт.

3

D32221

COVER

CAP - valve

1шт.

4

D32128

BOLT (SPREADER)

BOLT - stripper

1шт.

5

D32130

GUIDE

- spring

2шт.

6

D66214

VALVE SPRING

SPRING - centering

1шт.

7

D32456

PLATE

- retaining

3шт.

8

D66216

RING

- backup

2шт.

9

D66215

SEAL

- wiper

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve section

1шт.

11

71-58

FHCS - 5/16" - 18 NC x 1/2"

2шт.

12

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

13

39007

CAP

- check valve

1шт.

14

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring

1шт.

15

R15308

VALVE SPRING

SPRING - check valve

1шт.

16

D45694

SPOOL

POPPET - check valve

1шт.

D42866

VALVE

CARTRIDGE - secondary relief (Not preset), Includes: Ref. 17 - 27

2шт.

17

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

18

23150

WASHER

GASKET - copper

2шт.

19

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

1шт.

20

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

22

D26872

O-RING

SEAL - "O" ring

1шт.

23

D31450

WASHER

- gasket

1шт.

D42865

VALVE POPPET

KIT - seat and poppet, Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

26

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

27

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

28

L32985

GASKET

- quad ring

1шт.

29

905952R1

COTTER PIN,M3.2 x 50

SEAL - quad ring

3шт.
