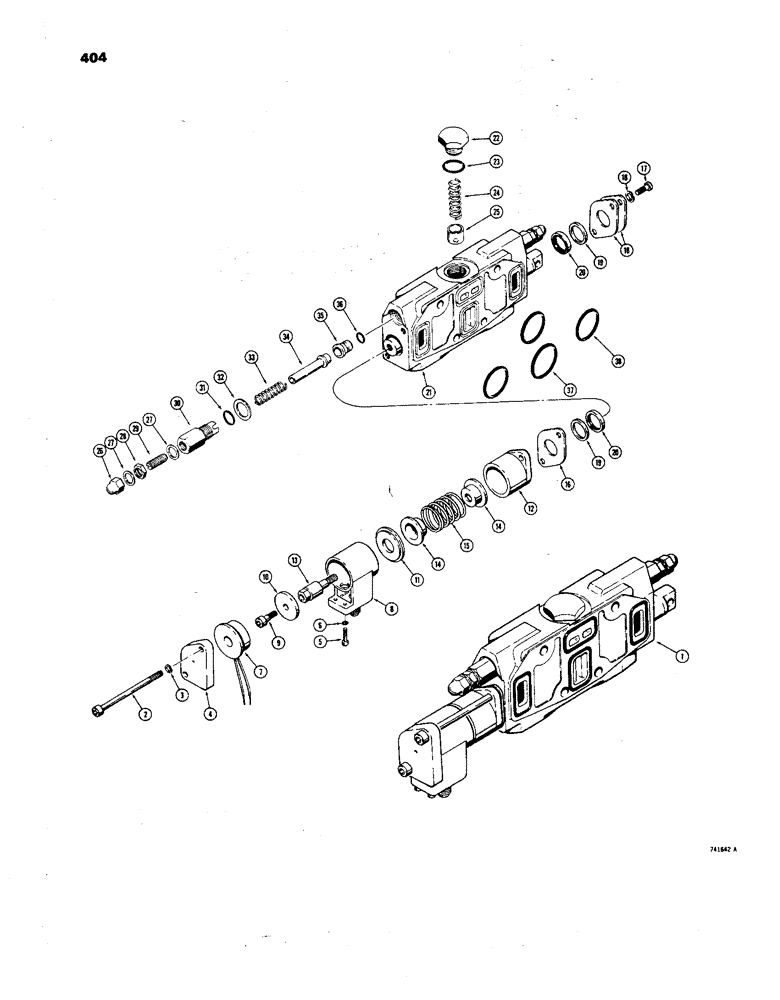

Запчасти Case 850 (404) - D66223 BUCKET DUMP SECTION, (CS&S # WU1030-2) (07) - HYDRAULIC SYSTEM

1

D66223

X

BUCKET DUMP SECTION - loader valve, Includes: Ref. 2 - 25

1шт.

2

61-572

SHCS - 5/16" - 18 NC x 4-1/2"

2шт.

3

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

4

D66230

CAP - magnet holder

1шт.

5

165-23

HEX SOC SCREW,#10 - 24 x 3/4"

SHCS - #10 - 24 NC x 3/4"

2шт.

6

192-406

WASHER - med. sect. lock (#10)

2шт.

7

D66211

MAGNET

ASSEMBLY - valve

1шт.

8

D66228

TUBE - magnet

1шт.

9

D66231

BOLT (SPREADER)

BOLT - shoulder (5/16" - 18 NC)

1шт.

10

D66229

PLATE

- holding, magnet

1шт.

11

D66227

RETAINER

- tube

1шт.

12

D66226

CYLINDER END CAP

CAP - end

1шт.

13

D66225

BOLT (SPREADER)

BOLT - stripper

1шт.

14

D32130

GUIDE

RETAINER - spring

2шт.

15

D66214

VALVE SPRING

SPRING - centering

1шт.

16

D32456

PLATE

- retaining

3шт.

17

71-58

FHCS - 5/16" - 18 NC x 1/2"

2шт.

18

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

19

D66216

RING

- backup

2шт.

20

D66215

SEAL

- wiper

2шт.

21

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - dump section

1шт.

22

39007

CAP

- check valve

1шт.

23

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring

1шт.

24

R15308

VALVE SPRING

SPRING - check valve

1шт.

25

D45694

SPOOL

POPPET - check valve

1шт.

D42866

VALVE

CARTRIDGE - secondary relief (Not preset), Includes: Ref. 26 - 38

2шт.

26

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

27

23150

WASHER

GASKET - copper, Includes: Ref. 28 - 31

2шт.

28

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

1шт.

29

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

31

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

32

D31450

WASHER

- gasket, Includes: Ref. 33 - 36

1шт.

D42865

VALVE POPPET

KIT - seal, poppet and spring, Includes: Ref. 33 - 36

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

34

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

35

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, 1/4" I.D. x 3/8" O.D.

1шт.

37

L32985

GASKET

- quad ring

1шт.

38

905952R1

COTTER PIN,M3.2 x 50

SEAL - quad ring

3шт.
