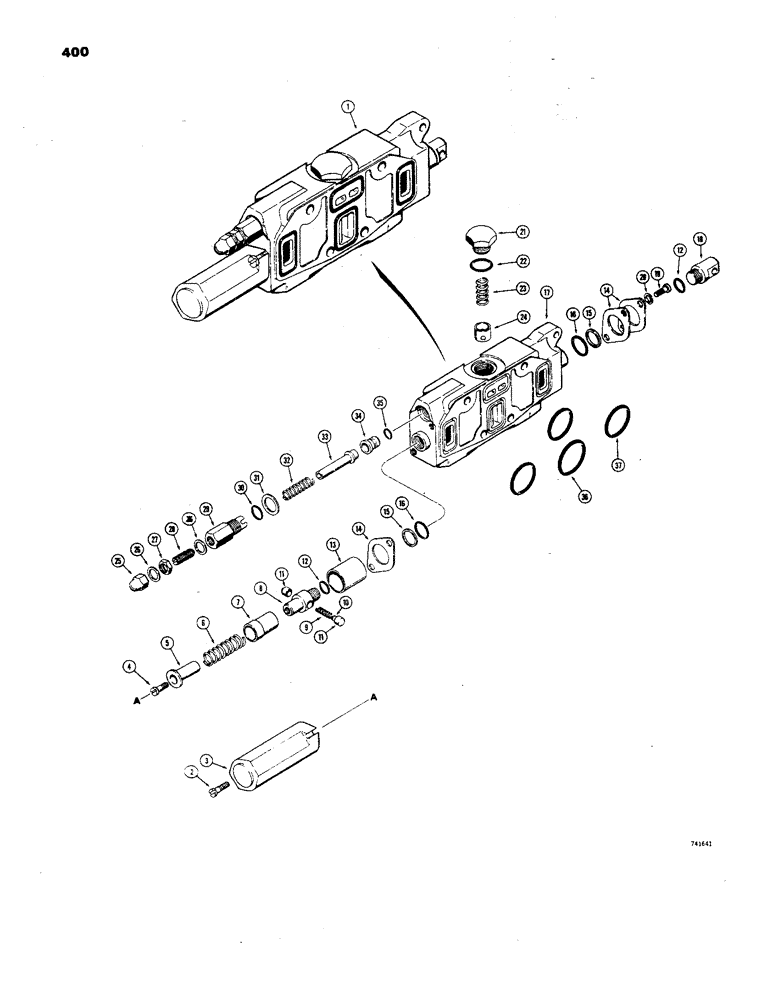

Запчасти Case 850 (400) - D66224 LOADER LIFT SECTION, (CS&S # WN1030) (07) - HYDRAULIC SYSTEM

1

D66224

KNIFE SECTION

LIFT SECTION - loader valve, Includes: Ref. 2 - 37

1шт.

2

71-514

SCREW,Slotted Fil Hd, 5/16"-18 x 7/8"

FHCS - 5/16" - 18 NC x 7/8"

2шт.

3

D32459

CAP

- valve section

1шт.

4

D39711

SCREW - fillister head, special

1шт.

5

D32452

RETAINER - spring, inner

1шт.

6

D66219

VALVE SPRING

SPRING - centering

1шт.

7

D32454

RETAINER

- spring, outer

1шт.

8

D32455

RETAINER

- poppet

1шт.

D66220

DETENT

ASSEMBLY, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - poppet

1шт.

11

NSS

NOT SOLD SEPARAT

CAP - poppet

2шт.

12

D38813

O-RING

SEAL - "O" ring, 1/2" x 11/16" O.D.

2шт.

13

D32225

SLEEVE - poppet

1шт.

14

D32456

PLATE

- retainer

3шт.

15

D66218

RING

- backup

2шт.

16

D66217

SEAL

- wiper

2шт.

17

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - lift section

1шт.

18

D32223

LUG

- spool

1шт.

19

71-58

FHCS - 5/16 - 18 NC x 1/2"

2шт.

20

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

21

39007

CAP

- check valve

1шт.

22

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring, 1" I.D. x 1-3/8" O.D.

1шт.

23

R15308

VALVE SPRING

SPRING - check valve

1шт.

24

D45694

SPOOL

POPPET - check valve

1шт.

D42866

VALVE

CARTRIDGE - secondary relief (Not preset), Includes: Ref. 25 - 35

1шт.

25

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

26

23150

WASHER

GASKET - copper

2шт.

27

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

1шт.

28

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

30

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

31

D31450

WASHER

- gasket

1шт.

D42865

VALVE POPPET

KIT - seat and poppet, Includes: Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

33

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

34

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

35

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

36

L32985

GASKET

- quad ring

1шт.

37

905952R1

COTTER PIN,M3.2 x 50

SEAL - quad ring

3шт.
