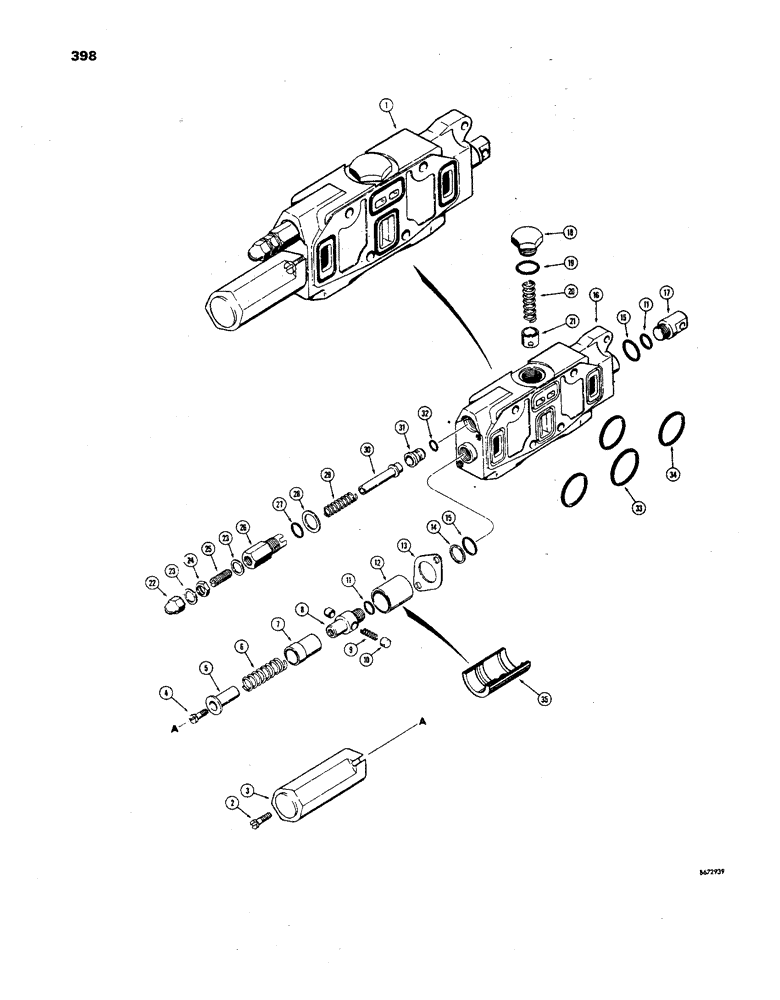

Запчасти Case 850 (398) - D38365 LOADER LIFT SECTION, (CS&S # HR1030) (07) - HYDRAULIC SYSTEM

1

D38365

KNIFE SECTION

LIFT SECTION - loader control valve, Includes: Ref. 2 - 34

1шт.

2

71-514

SCREW,Slotted Fil Hd, 5/16"-18 x 7/8"

FHMS - 5/16" - 18 NC x 7/8"

2шт.

3

D32459

CAP

- valve section

1шт.

4

D39711

SCREW - fillister head, special

1шт.

5

D32452

RETAINER - spring, inner

1шт.

6

D32453

SPRING

- centering

1шт.

7

D32454

RETAINER

- spring, outer

1шт.

8

D32455

RETAINER

- poppet

1шт.

9

D32450

SPRING

- poppet

1шт.

10

D32226

SPOOL

POPPET - detent

2шт.

11

D38813

O-RING

SEAL - "O" ring, 1/2" I.D. x 11/16" O.D.

2шт.

12

D32225

SLEEVE - poppet

1шт.

13

D32456

PLATE

- retainer

1шт.

14

D32457

RING

- backup

1шт.

15

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, 1" I.D. x 1-1/4" O.D.

2шт.

16

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - lift section

1шт.

17

D32223

LUG

- spool

1шт.

18

39007

CAP

- check valve

1шт.

19

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" RING, 1" I.D. x 1-3/8" O.D.

1шт.

20

R15308

VALVE SPRING

SPRING - check valve

1шт.

21

D45694

SPOOL

POPPET - check valve

1шт.

D42866

VALVE

CARTRIDGE - secondary relief (Not preset) Must be set to correct pressure when installed on valve, Includes: Ref. 22 - 32

1шт.

22

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF), Includes: Ref. 23 - 32

1шт.

23

23150

WASHER

GASKET - copper

2шт.

24

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., lock (3/8" - 24 NF)

1шт.

25

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

27

D26872

O-RING

SEAL - "O" ring, 1/2" I.D. x 5/8" O.D.

1шт.

28

D31450

WASHER

- gasket

1шт.

D42865

VALVE POPPET

KIT - seat and poppet, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - relief valve

1шт.

30

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

31

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

32

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal (1/4" ID x 3/8" OD)

1шт.

33

L32985

GASKET

- quad ring, 1-13/16" I.D. x 2" O.D.

1шт.

34

L35522

O-RING

SEAL - quad ring, 1-9/16" I.D. x 1-3/4" O.D.

3шт.

35

D42620

SLEEVE - poppet, service option

1шт.
