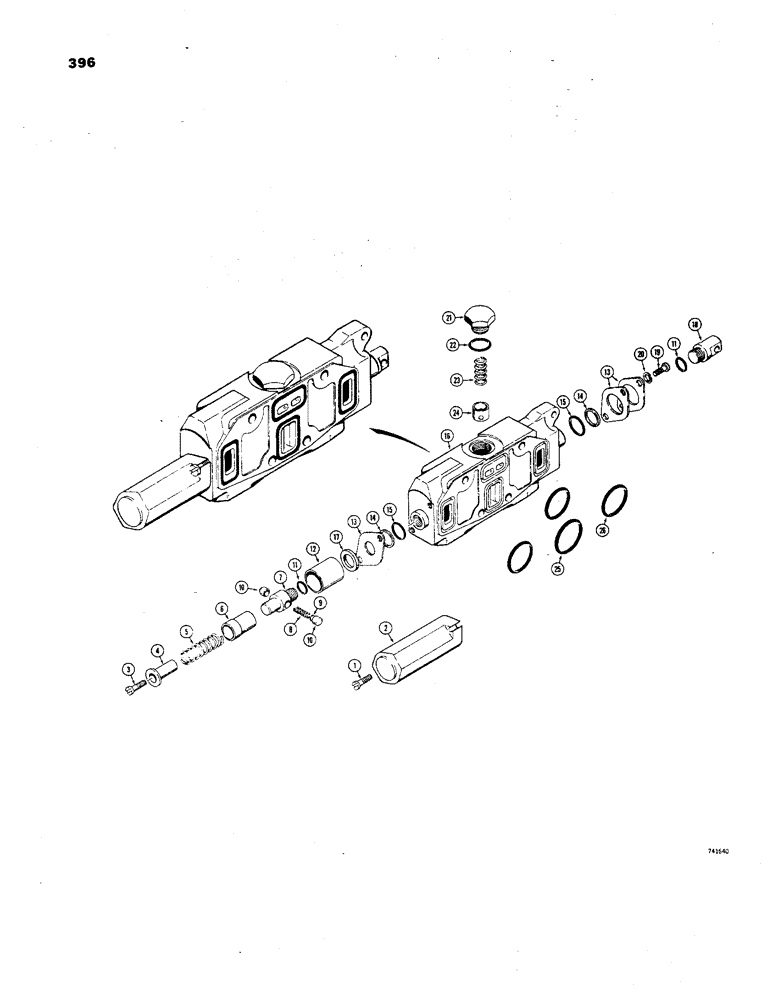

Запчасти Case 850 (396) - D66213 DOZER LIFT SECTION, (CS&S # WT1030) (07) - HYDRAULIC SYSTEM

D66213

KNIFE SECTION

LIFT SECTION - dozer valve, Includes: Ref. 1 - 26

1шт.

1

71-514

SCREW,Slotted Fil Hd, 5/16"-18 x 7/8"

FHMS - 5/16" - 18 NC x 7/8"

2шт.

2

D32459

CAP

- valve section

1шт.

3

D39711

SCREW - fillister head, special

1шт.

4

D32452

RETAINER - spring, inner

1шт.

5

D66219

VALVE SPRING

SPRING - centering

1шт.

6

D32454

RETAINER

- spring, outer

1шт.

7

D32455

RETAINER

- poppet

1шт.

D66220

DETENT

ASSEMBLY, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - detent

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM - detent

1шт.

10

NSS

NOT SOLD SEPARAT

CAP - detent

2шт.

11

D38813

O-RING

SEAL - "O" ring, 1/2" I.D. x 11/16" O.D.

2шт.

12

D32225

SLEEVE - poppet

1шт.

13

D32456

PLATE

- retaining

3шт.

14

D66218

RING

- backup

2шт.

15

D66217

SEAL

- wiper

2шт.

16

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve section

1шт.

17

D52479

SPACER - stop

1шт.

18

D32223

LUG

- spool

1шт.

19

71-58

FHCS - 5/16" - 18 NC x 1/2"

2шт.

20

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

21

39007

CAP

- check valve

1шт.

22

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

SEAL - "O" ring, 1" I.D. x 1-3/8" O.D.

1шт.

23

R15308

VALVE SPRING

SPRING - check valve

1шт.

24

D45694

SPOOL

POPPET - check valve

1шт.

25

L32985

GASKET

- quad ring

1шт.

26

L35522

O-RING

SEAL - quad ring

3шт.
